Summary of Contents for Seiki SC-6000AURH

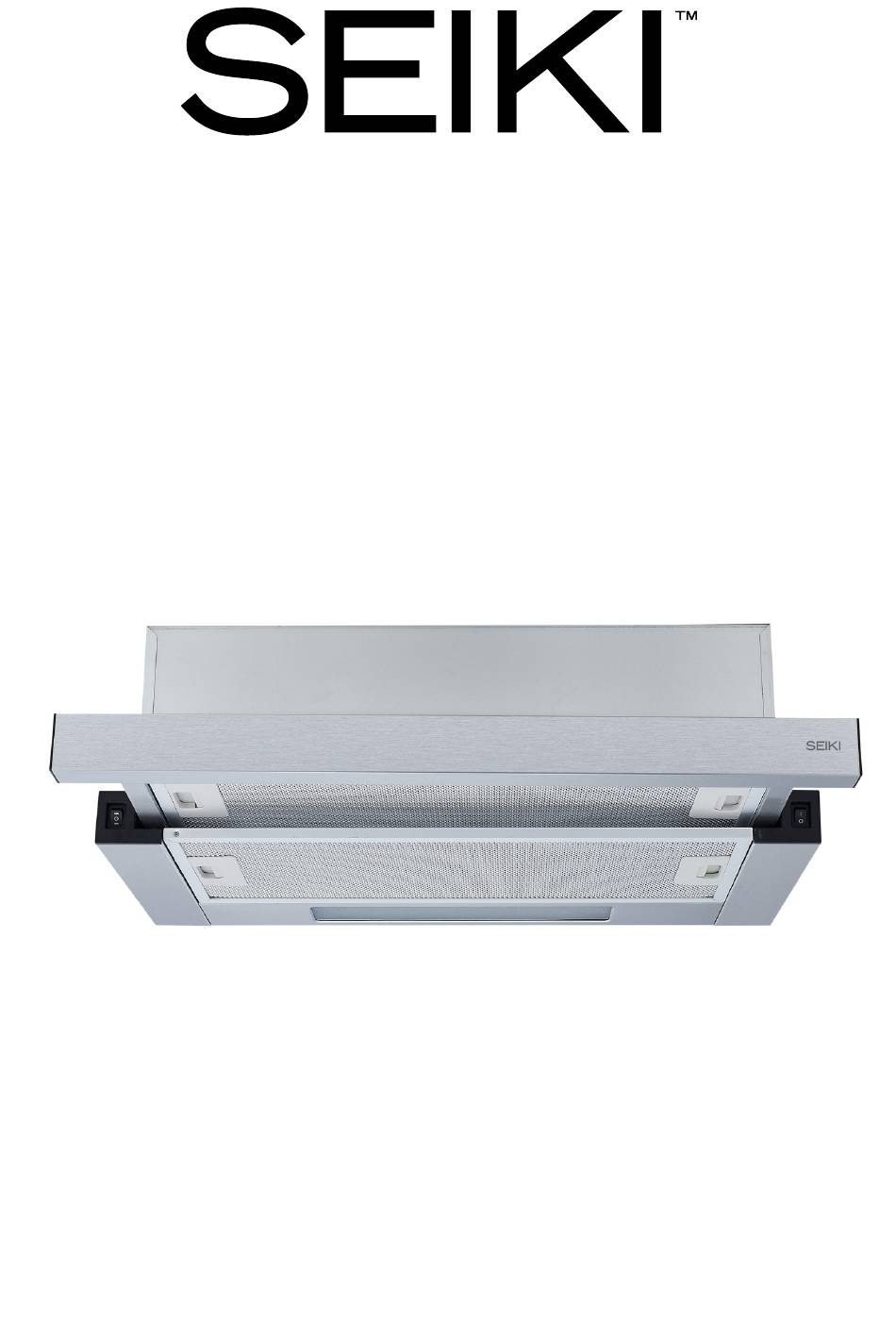

- Page 1 SLIDE OUT RANGEHOOD SC-6000AURH INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Installation Instructions FAQs Other Useful Information Specifications Customer Helpline... -
Page 4: General Safety
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Slide out Rangehood. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING... - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) WARNING! THE INSTALLATION OF THIS PRODUCT CAN ONLY EVER BE INSTALLED BY A LICENCED ELECTRICIAN. DO NOT IN ANY WAY TRY TO INSTALL THIS PRODUCT YOURSELF. To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below: NOTE: This appliance should be installed by an authorised electrician else...
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) USAGE CONDITIONS AND RESTRICTIONS • This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are being supervised or been given instructions on how to use of the appliance in a safe way and understand the hazards with using this appliance incorrectly.
- Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) CAUTIONS! • Make sure when using the rangehood with either an open fire such as a burner that depend on air from the environment other than electricity, the rangehood removes air from the environment which a burner needs for combustion. •...
-
Page 8: Product Overview
PRODUCT OVERVIEW 1 Rangehood housing 2 Slide out front panel (fascia) 3 On/off fan speed switch 4 Inner aluminium mesh filter 5 Outer aluminium mesh filter 6 Lights 7 Light switch... -
Page 9: Installation
INSTALLATION Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation. UNPACKING • When unpacking the appliance, be sure to keep all the packaging materials until you have made sure your new appliance is undamaged and in good working order. - Page 10 INSTALLATION (Cont.) INSTALLING RANGEHOOD • The distance of the rangehood to you cooktop should be a minimum of 650mm to 750mm, this ensures safety of heat produced from cooktop doesnt damage the rangehood, and if you have a Gas Cooktop that the Rangehood does not take away air needed for combustion for the burners.
- Page 11 INSTALLATION (Cont.) VENTING OPTIONS • Before installing the rangehood, please check and ensure that the two levers on the motor are set to the desired venting mode (Fig. 1): “Ducting” or “Recirculating”. • Steam can be vented to the outside (Fig. 5, outdoor ducting mode), if you are able to knock a hole in the ceiling or wall for the exhaust ducting pipe (not supplied).
- Page 12 INSTALLATION (Cont.) OUTDOOR DUCTING MODE This is the recommended extraction mode wherever possible for optimum performance. If you are able to install an exhaust duct (not supplied) to vent the air outside and operate your rangehood in outdoor ducting mode, proceed as follows: •...
- Page 13 INSTALLATION (Cont.) RECIRCULATING MODE This mode is the default setting. The rangehood will operate with carbon filters and vent the air back into the kitchen. To ensure that the mode is correct, remove the grease filters and check that the two levers are in the “Recirculating”...
- Page 14 INSTALLATION (Cont.) TOP MOUNTING IN A CABINET • Determine where in the top cabinet you want to install the rangehood, then drill 4 holes of Ø4mm at the bottom of the hanging board of your cabinet. • You will also need to make an opening for the power cord and plug and, if the rangehood is to be ducted to the outside, a hole for the ducting.
-
Page 15: Instructions
INSTRUCTIONS After the rangehood has been properly installed, insert the power plug into an appropriate electrical outlet and let the unit run for a few minutes prior to using it while cooking. TURNING OFF AND ON • Determine where in the top cabinet you want to install the rangehood, then drill 4 holes of Ø4mm at the bottom of the hanging board of your cabinet. -
Page 16: Faqs
FAQS If experiencing issues with your oven and isn’t operating correctly please check the following pages for solutions to the problems. If none of the solutions offered help solve the problem with your appliance then please contact our call centre on 1300 296 699. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. -
Page 17: Other Useful Information
OTHER USEFUL INFORMATION CLEANING AND MAINTENANCE CAUTION: Before cleaning the rangehood or maintenance, make sure the operation and light switched are set to “0” and the rangehood is disconnected from the power supply. • Make sure to clean the filters regularly as oil and food can become a fire hazard over time. -
Page 18: Specifications
SPECIFICATIONS Power Supply 220-240V / 50Hz Product Dimensions 595 (w) x 315 (d) x 194 (h) mm Extended depth (mm) 315 - 485mm Weight Net: 9kg / Gross: 10kg Motor Power 2 x 95 Lamp Power 2 x 28W Total Input Power Maximum Air Flow 400M3/H Height of Front Panel... -
Page 20: Customer Helpline
CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
