Summary of Contents for LumaSense technologies IN 2000

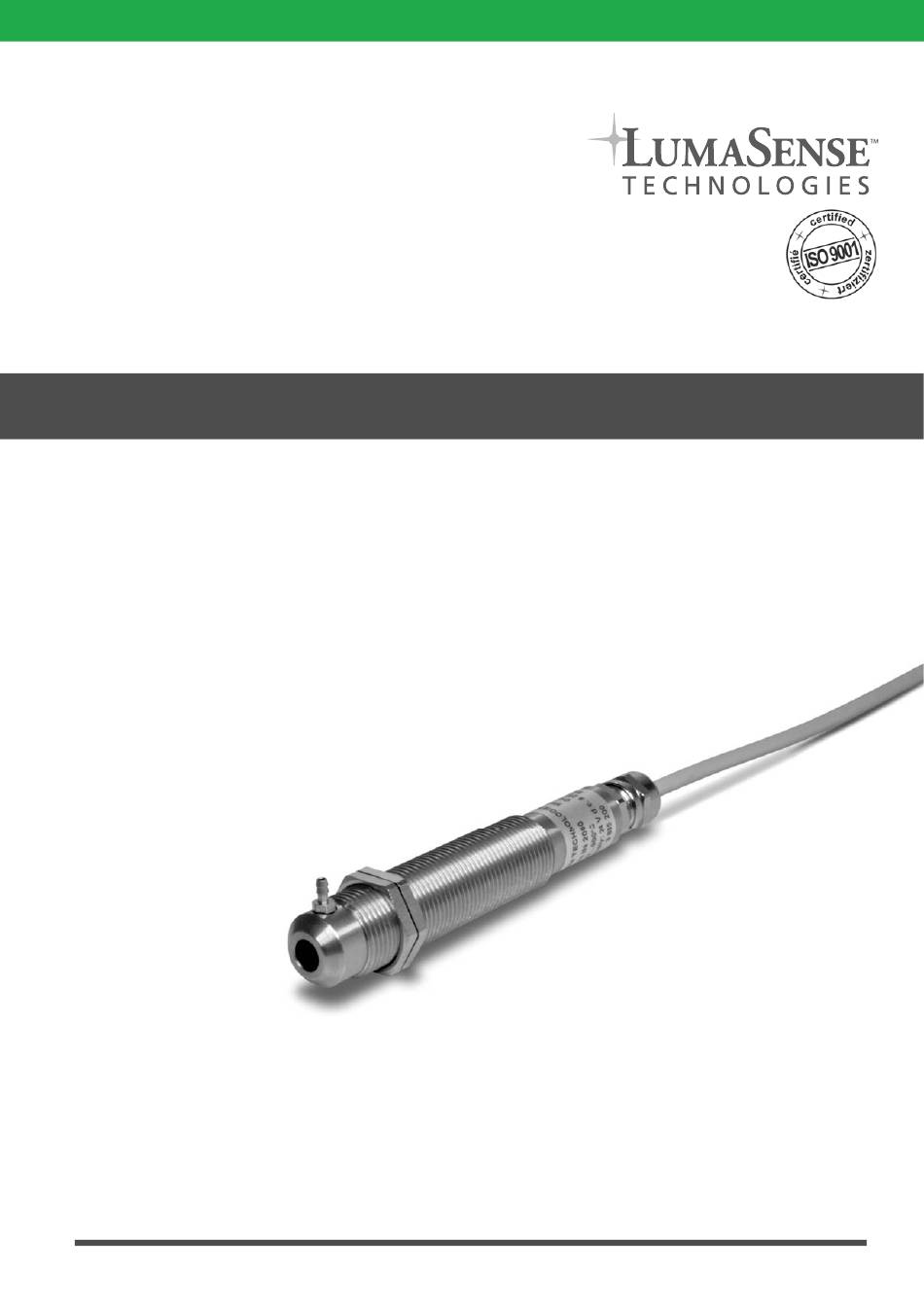

- Page 1 上海麦兴仪器设备有限公司 www.imaxsun.com IN 2000 Infrarot-Messumformer · Infrared Sensor Operation Manual · Betriebsanleitung Proven Quality...
-
Page 2: Table Of Contents
IMPAC Infrared sensor IN 2000 Contents General..................................3 Information about the user manual..........................3 Limit of liability and warranty ............................3 Legend ..................................3 Terminology ................................3 Copyright..................................3 Disposal / decommissioning............................3 Technical data ................................4 Dimensions ..............................4 Overview ................................... -
Page 3: General
LumaSense Technologies is not liable for any damages that arise from the use of any examples or proc- esses mentioned in this manual or in case the content of this document should be incomplete or incorrect. -
Page 4: Technical Data
IMPAC Infrared sensor IN 2000 Technical data Temperature range: -32 … 900 °C Sub range: Any range adjustable within the temperature range, minimum span 51°C Spectral range: 8 ... 14 µm Data handling: Digital Power supply: 15 ... 30 V DC... -
Page 5: Overview
-32 and 900°C. The IN 2000 is equipped with an analog 4 - 20 mA output for use as a standard 2 wire instrument, and a digital output for connection to a PC using an optional available USB adapter. This allows the settings of the available instrument parameters as well as displaying and storing of temperature measuring curves. -
Page 6: Electrical Installation
Electrical installation The IN 2000 is supplied with a direct current between 15 and 30 V. When connecting the device to the power supply ensure correct polarity. The power consumption (in this case 4 - 20 mA) is also the measuring signal. -
Page 7: Mechanical Installation
Mechanical installation For easy mechanical installation the IN 2000 is equipped with a PG11-thread incl. 2 fixing nuts. The instrument is equipped as standard with an air purge unit (for a hose with 2 mm inner diameter) to supply with dry and oil-free pressurized air. -
Page 8: Optics
IMPAC Infrared sensor IN 2000 Optics The pyrometer is equipped ex works with a 10:1 optics. The lens is focusing to a distance of 400 mm, i.e. in this distance the lens achieves its smallest spot size in relation to the measuring distance. The spot size will change in any other distance (shorter or longer) corresponding to the following drawing. -
Page 9: Basic Range
IMPAC Infrared sensor IN 2000 Basic range Basic range displays the total range of the pyrometer automatically and can not be changed. Material Under Material you have the possibility to store the names of different measuring objects with their emissivity values and to recall them from the list. -
Page 10: Clear Time Of The Maximum Value Storage (Tclear)
IMPAC Infrared sensor IN 2000 Clear time of the maximum value storage (tClear) If the maximum value storage is switched on always the highest last temperature value Settings: will be displayed and stored. The storage has to be cleared at regular intervals for exchanging by a new and actual value. -
Page 11: Address
IMPAC Infrared sensor IN 2000 7.11 Address The instruments are delivered with the standard address “00”. Only if several instru- Settings: ments are connected via USB, different instrument addresses can be allocated for better clearness. Global addresses 98 and 99 (only via own communication program with interface command, not possible with InfraWin, because InfraWin automatically detects a connected pyrometer): If parameters may be changed simultaneously on all pyrometers, the global Address 98 can be used. -
Page 12: The Start Menu
IMPAC Infrared sensor IN 2000 The start menu Opens a saved file Storage of measured values for further processing Online measurement with color bar display Online measurement with graphic display Setting of the parameters of the instrument Setting of interface, baud rate or pyrometer addresses Time interval between two measurements Number of connected instruments (max. -
Page 13: Measurement (Color Bar)
IMPAC Infrared sensor IN 2000 A click on the “Test” icon opens a window that allows the direct communication with the pyrometer via the interface commands (see ® section 12, Data format UPP After entering an interface command (00 is the adjusted address ex works, “ms“... -
Page 14: Measurement (Online Trend)
IMPAC Infrared sensor IN 2000 Measurement (online trend) This window displays: temperature as graphi- cal diagram current temperature quantity of the measured values and file size of the current measure- ment The example shows a sample read- ing over the period of approx. -
Page 15: Trend Output (Analyzing)
IMPAC Infrared sensor IN 2000 8.11 Trend output (analyzing) The graph’s curve depicts the temperature change over time within the specified temperature range. Additionally, other information appears in this window; such as recorded time (x-axis) and temperature in degrees (y-axis) as well... -
Page 16: Transport, Packaging, Storage
(ideally along with silica gel) to protect it from humidity. The IN 2000 is designed for a storage temperature between -20 and 70°C with non-condensing conditions. A storing out of these conditions can damage or malfunction the pyrometer. -
Page 17: Data Format Upp (Universal Pyrometer Protocol)
IMPAC Infrared sensor IN 2000 Data format UPP (Universal Pyrometer Protocol) Via interface and suitable communication software or via “Test” function of the InfraWin software (see 8, Basic settings Test) commands can be exchanged directly with the pyrometer. -
Page 18: Reference Numbers
IMPAC Infrared sensor IN 2000 Software version AAvs tt.mm.yy XX.YY in detail: tt = day; mm = month; yy = year; XX.YY = software version Ref. number: AAbn Output: XXXXXX (hex 6-digit) Note: the letter “l” means the lower case letter of “L”.
