Summary of Contents for Transmitter Solutions EIS ENTRY-RX

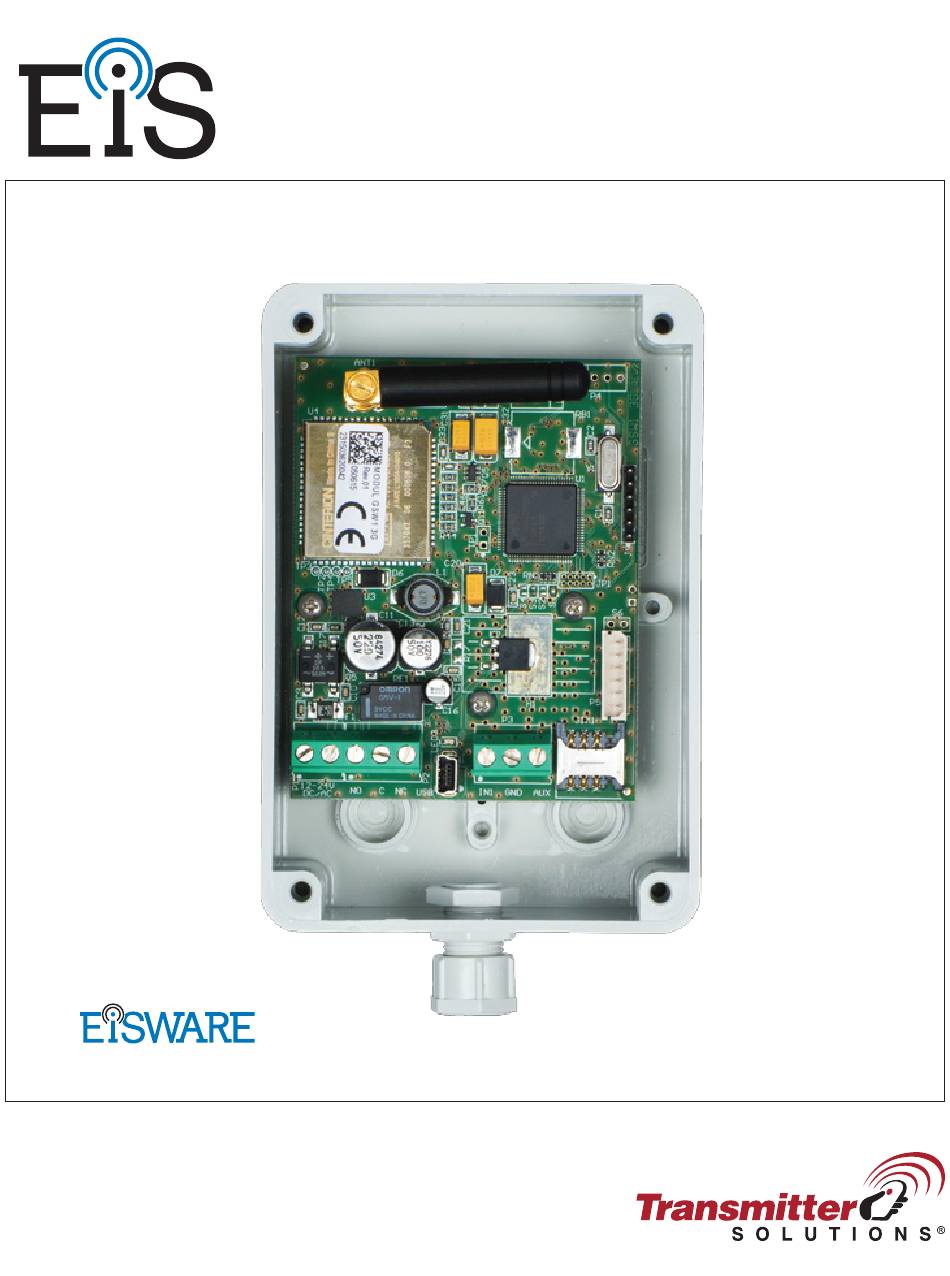

- Page 1 GSM REMOTE MOBILE SWITCH E I S EN T RY- RX Programming Software USER MANUAL v.1.4.2016.0816...
-
Page 3: Table Of Contents
EIS ENTRY-RX USER MANUAL Contents FOR YOUR SAFETY .............................. 3 INTRODUCTION ..............................4 EIS ENTRY-RX FEATURES AND APPLICATIONS ..................5 START UP ................................6 LED INDICATION ..............................7 CONNECTION DIAGRAM ........................... 8 EIS UNIT MANAGEMENT ........................... 9 EIS FUNCTIONS WITH PROGRAMMING INSTRUCTIONS..............10 WEB SERVER - LOG IN .............................. - Page 4 EIS ENTRY-RX USER MANUAL Figures Figure 1: EIS: Connection diagram .....................8 Figure 2: WEB Server-Sign In page ....................10 Figure 3: WEB Server-Main page select ADD mode................11 Figure 4: WEB Server-Main page adding EIS units................12 Figure 5: WEB Server-Unit management window ................13 Figure 6: WEB Server-Caller ID Access ...................14 Figure 7: WEB Server-Output setting....................15 Figure 8: WEB Server-Notification numbers ..................17 Figure 9: WEB Server-Input alarm configuration ................17...
-
Page 5: For Your Safety
EIS ENTRY-RX USER MANUAL FOR YOUR SAFETY SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. INTERFERENCE All wireless phones and units may be susceptible to interference, which could affect performance. SWITCH OFF IN HOSPITALS Follow any restrictions. -
Page 6: Introduction
EIS ENTRY-RX USER MANUAL INTRODUCTION EIS ENTRY-CR (EIS) is a simple GSM switch system designed to ensure low-cost, simple to install/use, reliable and single box solution for remote managed switching application. It is designed for unlimited range caller ID control. Optional EIS supports alarm detection, stay-alive messages, credit detection etc… Page 4... -
Page 7: Eis Entry-Rx Features And Applications
EIS ENTRY-RX USER MANUAL EIS ENTRY-RX FEATURES and APPLICATIONS Features: ⇒ Built-in 5 band GSM module ⇒ Caller ID numbers control (up-to 100 caller ID numbers) ⇒ 1 output (relay supported) ⇒ Programming with PC via “USB to Mini USB cable” connected to the unit ⇒... -
Page 8: Start Up
EIS ENTRY-RX USER MANUAL START UP EIS unit accepts a standard GSM SIM (T-Mobile or AT&T) card from any network. VERY USE A MICRO SIM CARD IMPORTANT WARNING DO NOT Insert or remove the SIM card while the unit is powered ON!! IMPORTANT Before inserting SIM card to unit make sure the PIN code is removed!! ⇒... -
Page 9: Led Indication
EIS ENTRY-RX USER MANUAL LED INDICATION Green LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Yellow LED (LED3) Short flashing indicates that the GSM module is ON, but it is not yet connected on the GSM network. -
Page 10: Connection Diagram
EIS ENTRY-RX USER MANUAL CONNECTION DIAGRAM Before connection the EIS please take a look at connection diagram. Must use 15VDC power supply that is provided with EIS unit. Figure 1: EIS: Connection diagram DO NOT USE Power out (12V AUX) for electric lock driving! Use separate IMPORTANT power source for door electric lock! Page 8... -
Page 11: Eis Unit Management
EIS ENTRY-RX USER MANUAL EIS UNIT MANAGEMENT Unit supports different types of management (programming): ⇒ Unit can be programmed directly by USB connection, with the use of configuration software running on PC (EIS Ware). ⇒ Unit can be programmed remotely by using WEB server access. ⇒... -
Page 12: Eis Functions With Programming Instructions
EIS ENTRY-RX USER MANUAL EIS FUNCTIONs with PROGRAMMING INSTRUCTIONs As mentioned in previous chapters EIS unit can be programmed in various way, this document will focus on most common programming way: WEB programming. SIM card in the EIS unit MUST have DATA PLAN to be able to use WEB IMPORTANT programming! 8.1 WEB SERVER - LOG IN... -
Page 13: Web Server - Adding Units To User Profile
EIS ENTRY-RX USER MANUAL NOTE Server support Firefox, Google Chrome, Safari. 8.2 WEB SERVER – ADDING UNITS TO USER PROFILE After login the user will be diverted to WEB server main window. This page is used to add/remove/search for EIS units from the user’s profile. Select “+”... -
Page 14: Figure 4: Web Server-Main Page Adding Eis Units
EIS ENTRY-RX USER MANUAL Figure 4: WEB Server-Main page adding EIS units User than provides required data: • Name: Name for the added unit - mandatory information. • IMEI: Identification number of the unit, can be found in the enclosure of the unit - mandatory information. -
Page 15: Web Server-Unit Management
EIS ENTRY-RX USER MANUAL 8.3 WEB SERVER-UNIT MANAGEMENT After the EIS unit is added to user database, the user can change the configuration of the specific unit. All changes made by the user are listed in the Change Log window. By clicking Send to device button ALL changes are send to the unit. -
Page 16: Caller Id Access
EIS ENTRY-RX USER MANUAL 8.4 CALLER ID ACCESS Caller ID access is a very simple way to control relay output defined in Caller ID output setting. User will by calling in the EIS unit trigger defined output. Settings for this function are found in the Caller id # tab. Figure 6: WEB Server-Caller ID Access General settings: •... -
Page 17: Outputs Settings
EIS ENTRY-RX USER MANUAL 8.5 OUTPUTS SETTINGS The behavior on the outputs is defined in the Output tab. Figure 7: WEB Server-Output setting Output 1 - Settings for output 1: • Output (relay) mode: User can select between 3 options Disable-Output is disabled. Latching-Output is in latching mode. - Page 18 EIS ENTRY-RX USER MANUAL Additional output settings - Setting are used to link onboard actions with the outputs if needed: Unauthorized call or SMS received: If unauthorized call or SMS is received on the unit • this event will activate output defined under this section. Input 1 activate output: If input 1 is activated this action will activate output defined under •...
-
Page 19: Administration
EIS ENTRY-RX USER MANUAL 8.6 ADMINISTRATION Administration tab allows user to enable advanced settings: notification of unauthorized access, periodic test messages, lock down of the unit… Figure 8: WEB Server-Notification numbers • Phone number, User name: Phone number and user name of the user that will be receiving notification messages. - Page 20 EIS ENTRY-RX USER MANUAL • Low credit alert: In case of prepaid SIM card the unit can notify the user if the credit on the SIM card is low. To enable notification SMS tick the check box in corresponding position. Note that additional input in the Misc tab is needed to fully enable credit checking function. •...
-
Page 21: Miscellaneous
EIS ENTRY-RX USER MANUAL 8.7 MISCELLANEOUS This tab is split into 2 sections. Figure 10: WEB Server-Misc General settings can be found: • SMS text Language: define the language of the SMS information send out. User can select appropriate language in drop-down menu. •... - Page 23 During the warranty period, the product will be repaired or replaced (at the sole discretion of Transmitter Solutions) if the product does not operate correctly due to a defective component. This warranty does not extend to (a) the product case, which can be damaged by conditions outside the control of Transmitter Solutions, or (b) battery life of the product. ...
