Summary of Contents for Hung DP-CAT2E

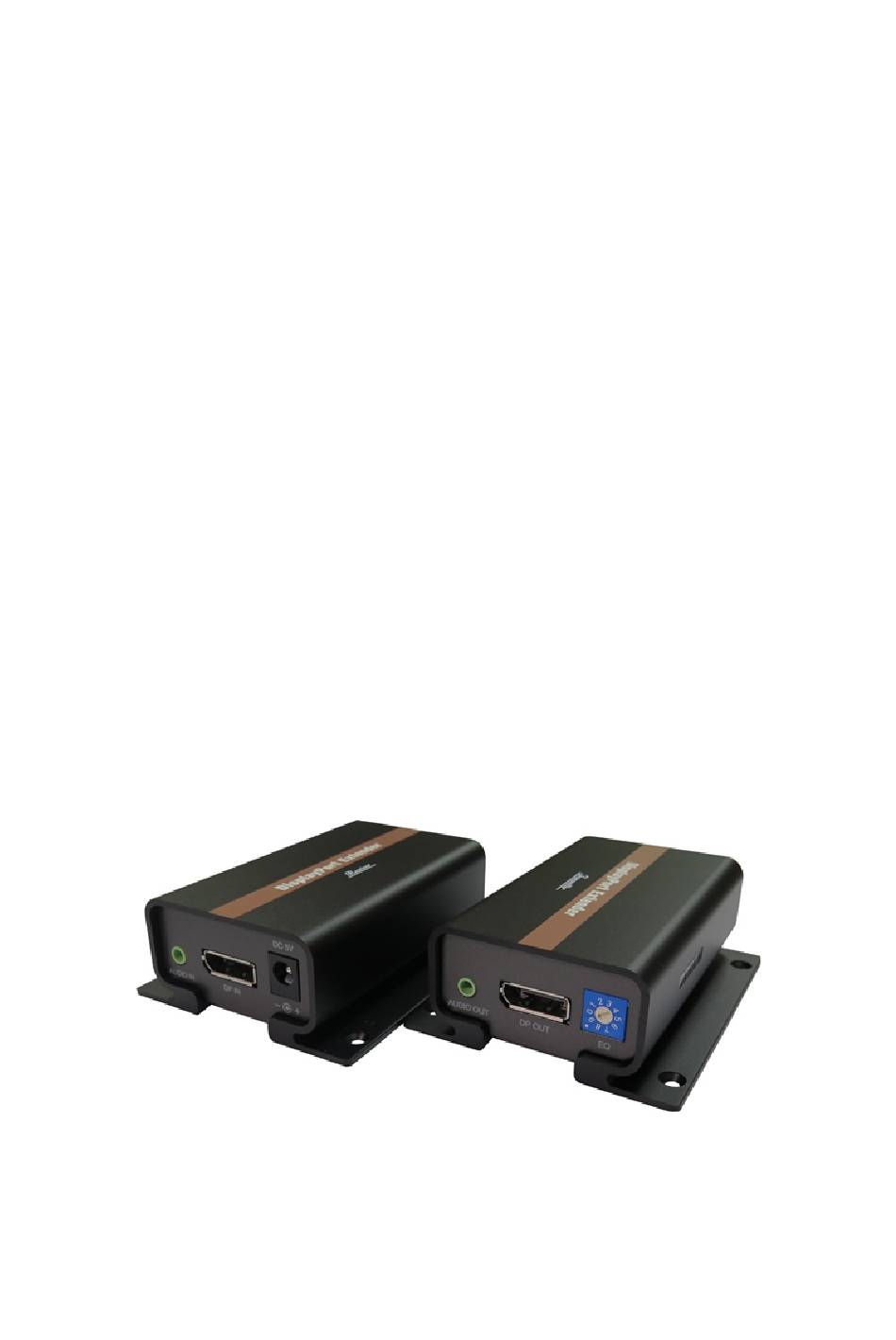

- Page 1 DisplayPort Extender over Cat.6 40m User’s Manual DP-CAT2E...
-
Page 2: Specifications
Power On LED indicator; no external power supply requirement on the receiver Supports 2.1 stereo audio out; Enables the DisplayPort signal transmitting to HD audio out. Rugged & cambered shape’s Aluminum enclosures are prefect for professional and industrial applications; surface-mountable 3. Specifications DP-CAT2E Model No. Transmitter Receiver Upstream / Input... - Page 3 5. Physical Diagram 5.1 Transmitter (Local Unit) Top view Front view DP IN port AUDIO IN port Power port (DC5V) Side view POWER LED (Orange) Rear view LINK 1 port (RJ45) LINK 2 port (RJ45)
- Page 4 5.2 Receiver (Remote Unit) Top view Front view DP OUT port AUDIO OUT port EQ Rotary switch Side view POWER LED (Orange) Rear view LINK 1 port (RJ45) LINK 2 port (RJ45) Power port (DC5V)
- Page 5 6. Connecting 6.1 Typical Application DP cable DP cable Audio cable Audio cable DP video source Display device CAT.6 cable LINK 2 Speakers CAT.6 cable LINK 1 The DisplayPort Extender is installed between the DisplayPort source and a connected Display device with speakers. 6.2 Installation Installing the Transmitter (Local Unit) 1.
- Page 6 6.3 Adjusting the Signal Quality The DisplayPort Extender has an equalization (EQ) rotary switch on the front of the Receiver unit. This 16-position rotary switch is used to adjust the boost level depending on the length of the CAT.6 cable. Insert a small flat-headed tool into the notch on the rotary switch.
-
Page 7: Regulatory Compliance
Regulatory Compliance Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
