TPLP
Pre-Assembled
Low Profile
Evaporators
Air & Electric Defrost
?
Electrical Power:
115/1/60, 208-230/1/60, 208-230/3/60, 460/1/60
See Page 22 for details
.............................. 16-19
Page
2
2
3
4
23
23/12/16
Advertisement
Table of Contents
Related Manuals for Trenton TPLP Series
Summary of Contents for Trenton TPLP Series
-
Page 1: Table Of Contents
TPLP Pre-Assembled Low Profile PRODUCT DATA & Evaporators INSTALLATION Bulletin T30-TPLP-PDI-11 Air & Electric Defrost 1087152 Questions about this product? Electrical Power: Email: evaps@t-rp.com 115/1/60, 208-230/1/60, 208-230/3/60, 460/1/60 Call: 1-844-893-3222 x520 See Page 22 for details CONTENTS Page Nomenclature........................Features & Options......................Pre-Assembled Features.................... -

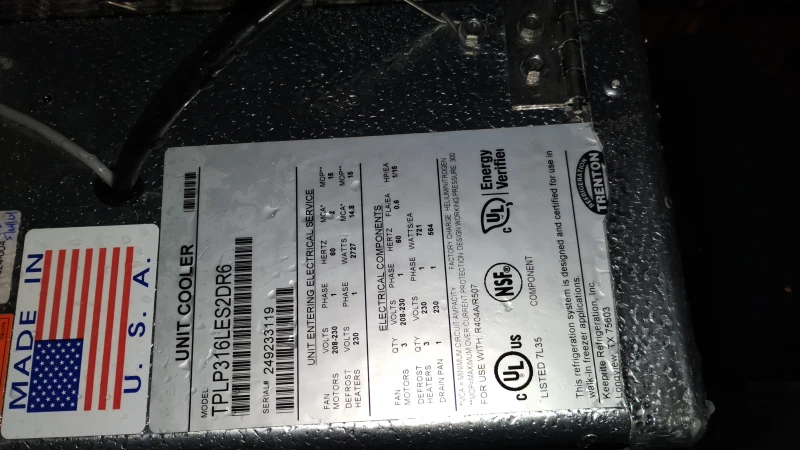

Page 2: Nomenclature
NOMENCLATURE 3 15 L E S2 B R6 - PSC Motor Designation: PSC = PSC Permanent Split Capacitor T = Trenton EC2 = EC Motor Pre-Assembled Refrigerant Designation: R2 = R407A / R407C / R22 Low Profile Evaporator R6 = R404A... -
Page 3: Pre-Assembled Features
TPLP 60Hz PRE-ASSEMBLED FEATURES Thermostat Mounted on Front of Unit Solenoid Valve and TXV Mounted Solenoid Valve Wire pulled through and labeled on each end Schrader Valve Located Outside T30-TPLP-PDI-11 - 3 - 23/12/16... -
Page 4: Capacity Data
TPLP 60Hz CAPACITY DATA - ALL MODELS Medium Temperature Models - Capacity @ 6 F.P.I. * Medium Temp. Models 104M 106M 107M 209M 211M 214M 317M 320M 423M 426M 532M 639M Number Of Fans 4090 5230 6460 8170 10450 13300 16200 19000 21900... -
Page 5: Electrical Data
TPLP 60Hz ELECTRICAL DATA 115/1/60 - AIR DEFROST MODELS FAN MOTORS PSC MOTORS EC MOTORS MODEL QTY. MIN. CIRC. MAX. FUSE MIN. CIRC. MAX. FUSE WATTS WATTS TOTAL AMPACITY (A) (AMPS) TOTAL AMPACITY (A) (AMPS) 104MAS1 1/15 1/15 106MAS1 1/15 1/15 107MAS1 1/15... - Page 6 TPLP 60Hz ELECTRICAL DATA - 208-230/1/60 & 208-230/3/60 ELECTRIC DEFROST MODELS FAN MOTORS DEFROST HEATERS PSC MOTORS EC MOTORS 208-230/1/60 208-230/3/60 MODEL FPI TOTAL MAX. MAX. MAX. MAX. QTY. TOTAL TOTAL WATTS WATTS FUSE WATTS FUSE FUSE FUSE TOTAL TOTAL AMPS AMPS (AMPS)
- Page 7 TPLP 60Hz ELECTRICAL DATA - 460/1/60 ELECTRIC DEFROST MODELS FAN MOTORS DEFROST HEATERS PSC MOTORS MODEL TOTAL TOTAL MAX. FUSE QTY. MAX. FUSE WATTS AMPS (AMPS) WATTS TOTAL (AMPS) 209MES4 1/15 1890 211MES4 1/15 1890 214MES4 1/15 1890 317MES4 1/15 2730 320MES4 1/15...
-
Page 8: Wiring Diagrams - Models With Standard Psc Motors
TPLP WIRING DIAGRAM - 115/1/60, 208-230/1/60 60Hz STANDARD PSC MOTORS AIR DEFROST MODELS WITH DEFROST TIME CLOCK WITHOUT DEFROST TIME CLOCK REFER TO EVAPORATOR REFER TO EVAPORATOR NAMEPLATE FOR ELECTRICAL NAMEPLATE FOR ELECTRICAL REQUIREMENTS REQUIREMENTS L2(N) L2(N) DEFROST CLOCK PARAGON # 8145 OR EQUIVALENT FUSE OR OMIT... - Page 9 TPLP WIRING DIAGRAM - 460/1/60 60Hz STANDARD PSC MOTORS AIR DEFROST MODELS WITHOUT DEFROST TIME CLOCK WITH DEFROST TIME CLOCK 460-1-60 Hz 380/400-1-50Hz 460-1-60 Hz CONTROL VOLTAGE 380/400-1-50Hz CONTROL VOLTAGE L2(N) DEFROST CLOCK L1 L2(N) PARAGON # 8145 OR EQUIVALENT FUSE OR FUSE OR CIRCUIT...
- Page 10 TPLP WIRING DIAGRAM - 208-230/1/60 60Hz STANDARD PSC MOTORS ELECTRIC DEFROST MODELS - SINGLE EVAPORATOR 10A MAX. FOR ALL MODELS WITHOUT DEFROST HEATER CONTACTOR USING MAXIMUM 15A HEATER OVERCURRENT PROTECTION REFER TO EVAPORATOR NAMEPLATE FOR ELECTRICAL DEFROST CLOCK REQUIREMENTS PARAGON # 8145 OR EQUIVALENT FUSE OR CIRCUIT...
- Page 11 TPLP WIRING DIAGRAM - 208-230/1/60 60Hz STANDARD PSC MOTORS ELECTRIC DEFROST MODELS - SINGLE EVAPORATOR FOR ALL MODELS USING DEFROST HEATER CONTACTOR REFER TO EVAPORATOR NAMEPLATE DEFROST CLOCK FOR ELECTRICAL REQUIREMENTS PARAGON # 8145 OR EQUIVALENT FUSE OR FUSE OR CIRCUIT CIRCUIT BREAKER...
- Page 12 TPLP WIRING DIAGRAM - 208-230/3/60 60Hz STANDARD PSC MOTORS ELECTRIC DEFROST MODELS - SINGLE EVAPORATOR FOR ALL MODELS USING 3 PHASE DEFROST HEATER CONTACTOR REFER TO EVAPORATOR NAMEPLATE DEFROST CLOCK FOR ELECTRICAL REQUIREMENTS PARAGON # 8145 OR EQUIVALENT FUSE OR FUSE OR CIRCUIT CIRCUIT...
- Page 13 TPLP WIRING DIAGRAM - 460/1/60 60Hz STANDARD PSC MOTORS ELECTRIC DEFROST MODELS - SINGLE EVAPORATOR FOR ALL 460V MODELS USING DEFROST HEATER AND FAN CONTACTORS REFER TO EVAPORATOR NAMEPLATE DEFROST CLOCK FOR ELECTRICAL REQUIREMENTS PARAGON # 8145 OR EQUIVALENT L2(N) FUSE OR FUSE OR CIRCUIT...
- Page 14 TPLP WIRING DIAGRAM - 208-230/1/60 60Hz STANDARD PSC MOTORS ELECTRIC DEFROST MODELS - MULTIPLE EVAPORATORS FOR ALL MODELS USING DEFROST HEATER CONTACTOR REFER TO EVAPORATOR NAMEPLATE DEFROST CLOCK FOR ELECTRICAL REQUIREMENTS PARAGON # 8145 OR EQUIVALENT FUSE OR FUSE OR CIRCUIT CIRCUIT BREAKER...
- Page 15 TPLP WIRING DIAGRAM - 460/1/60 60Hz STANDARD PSC MOTORS ELECTRIC DEFROST MODELS - MULTIPLE EVAPORATORS FOR ALL 460V MODELS USING DEFROST HEATER AND FAN CONTACTORS REFER TO EVAPORATOR NAMEPLATE FOR ELECTRICAL REQUIREMENTS DEFROST CLOCK PARAGON # 8145 OR EQUIVALENT L2(N) FUSE OR FUSE OR CIRCUIT...
-
Page 16: Wiring Diagrams - Models With Optional Ec Motors
NO COMPLEX CONTROLS, NO COST ADDER, SIMPLE TO UNDERSTAND TPLP PATENT 60Hz PENDING DESIGN FEATURES US Patent No. 8,635,883 • Standard on all EC Motors • NO special controls required. • Refrigeration mode – EC motor operates at full speed. Consumption 60 W per motor • Off Cycle mode – EC motor operates at reduced speed. - Page 17 TPLP WIRING DIAGRAM - 115/1/60, 208-230/1/60 60Hz OPTIONAL EC MOTORS with AIR DEFROST MODELS T30-TPLP-PDI-11 - 17 - 23/12/16...
- Page 18 TPLP WIRING DIAGRAM - 208-230/1/60 60Hz OPTIONAL EC MOTORS with ELECTRIC DEFROST MODELS T30-TPLP-PDI-11 - 18 - 23/12/16...
- Page 19 TPLP WIRING DIAGRAM - 208-230/1/60 60Hz OPTIONAL EC MOTORS with ELECTRIC DEFROST MODELS - MULTIPLE EVAPORATORS T30-TPLP-PDI-11 - 19 - 23/12/16...
-
Page 20: Shipping Weights
TPLP 60Hz SHIPPING WEIGHTS Air Defrost Models Electric Defrost Models SHIPPING WEIGHT SHIPPING WEIGHT MODEL MODEL NUMBER NUMBER (kg) (kg) 104MA (20) 104ME 104LE 103VE (22) 106MA (21) 106ME 105LE 104VE (23) 107MA (22) 107ME 106LE 105VE (24) 209MA (32) 209ME 207LE 206VE... -
Page 21: Dimensional Data
60Hz TPLP DIMENSIONAL DATA .438 SLOTS IN MOUNTING BRACKETS 6 1/2 6 1/2 [165] [165] REFRIGERATION [102] ELECTRICAL AIR THROW CONNECTIONS. 15 7/8 APPROX 35' CONNECTIONS. SUCTION & LIQUID. [403] IN OPEN SPACE 1, 2 AND 3 FAN MODELS. (TOP VIEW) 3/4 MPT / 3/4 FLARE 1 3/8 [76]... - Page 22 60Hz TPLP RECOMMENDED EXPANSION VALVE SELECTIONS - MEDIUM TEMP. MODELS SPORLAN R407A FACTORY R404A R407C R134a MODEL INSTALLED R507 NOZZLE 104M EBQE-AA-*C EBQE-AAA-VC EBQE-AAA-JC 106M L-1/2 EBQE-AA-*C EBQE-AA-VC EBQE-AA-JC 107M L-1/2 EBQE-A-*C EBQE-AA-VC EBQE-AA-JC 209M L-3/4 EBQE-A-*C EBQE-AA-VC EBQE-AA-JC 211M EBQE-A-*C EBQE-A-VC EBQE-A-JC...
-
Page 23: Recommended Expansion Valve Selections
60Hz TPLP RECOMMENDED EXPANSION VALVE SELECTIONS - LOW TEMP. MODELS SPORLAN - R407A FACTORY INSTALLED MODEL 0° F (-18° C) EVAP. -10° F (-23° C) EVAP. -20° F (-29° C) EVAP. -30° F (-34° C) EVAP. -40° F (-40° C) EVAP. NOZZLE 104L L-1/2... -
Page 24: Installation Instructions
TPLP 60Hz INSTALLATION INSTRUCTIONS INSTALLATION EXPANSION VALVE (TXV) PRE-SELECTED The installation and start-up of evaporators should only Locate the expansion valve bulb on a horizontal length be performed by qualified refrigeration mechanics. of suction line preferably 3 to 6 inches from the suction This equipment should be installed in accordance with header. -
Page 25: Installation Instructions
TPLP 60Hz INSTALLATION INSTRUCTIONS PIPING SYSTEM CHECK Refrigeration grade piping must be used for all field Before Start-Up: refrigeration piping. Refrigerant line sizes are important and may not be the same size as the coil connections. 1. All wiring should be in accordance with local Consult ASHRAE handbook or other similar reference codes. -
Page 26: Generic Service Parts
TPLP 60Hz SERVICE PARTS FOR SERVICE PARTS LOOK-UP: visit: http://www.t-rp.com/serv_parts.htm email: parts@t-rp.com call: 1-844-893-3222 x501 T30-TPLP-PDI-11 - 26 - 23/12/16... -
Page 27: Warranty
FINISHED GOODS WARRANTY The terms and conditions as described below in the General Warranty Policy cover all products manufactured by National Refrigeration. GENERAL WARRANTY POLICY Subject to the terms and conditions hereof, the Company warrants all Products, including Service Parts, manufactured by the Company to be free of defects in material or workmanship, under nor- mal use and application for a period of one (1) year from the original date of installation, or eighteen (18) months from the date of shipment from the Company, whichever occurs first. Any replacement part(s) so supplied will be warranted for the balance of the product’s original warranty. -
Page 28: As Built" Service Parts
“AS BUILT” SERVICE PARTS LIST Service Parts List Label To Be Attached HERE NATIONAL REFRIGERATION & AIR CONDITIONING CANADA CORP. 159 Roy Blvd. Brantford Ontario Canada N3R 7K1 PHONE: (519) 751-0444 800-463-9517 FAX (519) 753-1140 www.t-rp.com Due to National Refrigeration’s policy of continuous product improvement, we reserve the right to make changes without notice. T30-TPLP-PDI-11 - 28 - 23/12/16...
