Summary of Contents for Westone DefendEar DigitalX Dx1

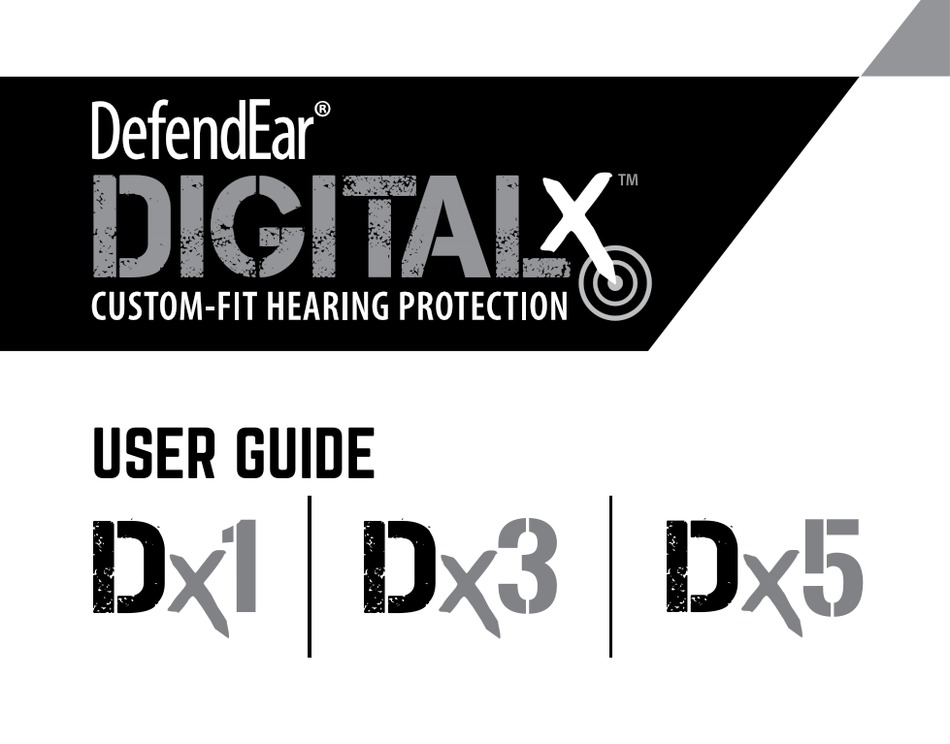

- Page 1 ™ USER GUIDE...
- Page 2 (decibel level and exposure time) the range and in hunting stands. The DefendEar modules are incorporated into Westone user will be exposed to should be considered prior to using DefendEar products. If maximum attenuating OtoBlast™...
- Page 3 IN THE BOX 6 Pack of Batteries Oto-Ease® Oto-Clens™ Size 13 Lubricant Cleaning Spray Pair of DefendEar DigitalX Modules Pair of Custom-Fit Earpieces Monitor Vault Cleaning Cloth Embroidered Patch...
- Page 4 SETUP - All Modules Install the battery using the magnetic battery tool. Press modules into earpieces Pick up the battery Place the battery into Open battery door and using the tool the battery door until they snap into place. remove tab from battery. Each module can be used in either the Left or Right earpiece.
- Page 5 EARPIECE INSERTION/REMOVAL: All Modules Identify the Left (blue dot) Place the earpiece into your and Right (red dot) earpieces. ear canal. Pull the top of your CAUTION: If earpieces are not properly inserted, you may not Rotate the earpiece forward ear with your opposite hand for obtain adequate hearing protection.
- Page 6 REMOVAL Rotate the earpiece backward You will feel the and inward into its upright position earpiece lock into place Grasp the earpiece and rotate it forward while pulling outward. Do not to fully seat the earpiece in your ear once properly fitted. grasp the module.
-
Page 7: Operation
OPERATION: (Dx1) ADJUSTING VOLUME: (Dx1) • Never us your device on a higher volume setting than is comfortable. POWER/MUTE BUTTON • All controls must be operated when the battery door is closed. • Operate the volume control with light pressure from your finger tips. Excessive pressure may cause damage to the module. - Page 8 OPERATION: (Dx3 and Dx5) ADJUSTING VOLUME: (Dx3 and Dx5) • Never us your device on a higher volume setting than is comfortable. POWER/MUTE SWITCH • All controls must be operated when the battery door is closed. • Operate the volume control with light pressure from your finger tips. Excessive pressure may cause damage to the module.
-
Page 9: Mode Selection
MODE SELECTION: (Dx3 and Dx5) Each user will have a personal preference to sound. For the best possible CLAY MODE - PROGRAM 1: Outdoor Clay Range experience, users should take time to familiarize themselves with each Optimized for a faster rate of fire with other shooters firing nearby, leaving the user program mode in varying surroundings to develop their own preferences. - Page 10 PROGRAM 4: WIRELESS COMMUNICATION - General Shooting PROGRAM 1: GAME MODE - Outdoor Game Shooters Ambient awareness but with the added feature of wireless audio input via Following a gunshot, the device activates reducing output levels to keep the shooter safe from harmful noise. The sound level then immediately returns to the Dx5 Neck Loop.
-
Page 11: Maintenance
• For prolonged use in hot and humid conditions, remove the units at regular periods of inactivity, clean around the sound outlet, and air out for 5–10 minutes to prevent damage from condensation. Dehumidifiers are available at www.Westone.com to help with any condensation issues. -
Page 12: Troubleshooting
TROUBLESHOOTING PROBABLE CAUSE PROBABLE CAUSE SYMPTOM SOLUTION SYMPTOM SOLUTION Distortion or Battery is low Replace battery Unit Inoperative/ Battery is low or needs replaced Replace battery output appears whistling Wax build-up Clean the earpiece Wax build-up Clean the earpiece lower than normal Improper Fitting Refit earpiece/consult supplier Moisture build-up in sound tube... -
Page 13: Technical Information
TECHNICAL INFORMATION WARRANTY ALL MODULES: NRR 26 / IPIL 37.3/44/42 Westone warrants this product to be free of defects in material or workmanship for & a period of two years from the date of original retail purchase. Retain the original dated sales receipt. - Page 14 Westone disclaims any and all implied warranties, warranties of merchantability, and RMA# _______________ fitness for a particular purpose to the maximum extent permissible by law. Westone shall 2260 Executive Circle not be liable for any special, incidental, or consequential damages caused by the use, Colorado Springs, CO 80906 misuse, or inability to use this product.
- Page 15 • May be returned for credit or exchange within 1 year of the invoice date insurance for all returns. Westone cannot be responsible for lost or damaged packages. • If you received incorrect, damaged or defective merchandise, we will provide you with a...
-
Page 16: Replacement Parts
REPLACEMENT PARTS EARPIECE ACCESSORIES The following replacement parts/accessories and other DefendEar products are available at: www.Westone.com/DefendEar SMARTPHONE HEADSET | PN 64110 METALLIC BATTERY DOORS BATTERY DOOR ACCESSORIES Green PN 64100 Battery Door Hinge Pin PN 78308 PN 64101 Battery Removal Tool... - Page 17 Phone: 719-540-9333 | Toll Free: 800-525-5071 2235 Executive Circle | Colorado Springs, CO 80906 westone.com/DigitalX © 2019 Westone® Laboratories, Inc. All rights reserved. PN 99709...
