Summary of Contents for Wesco IPGRB

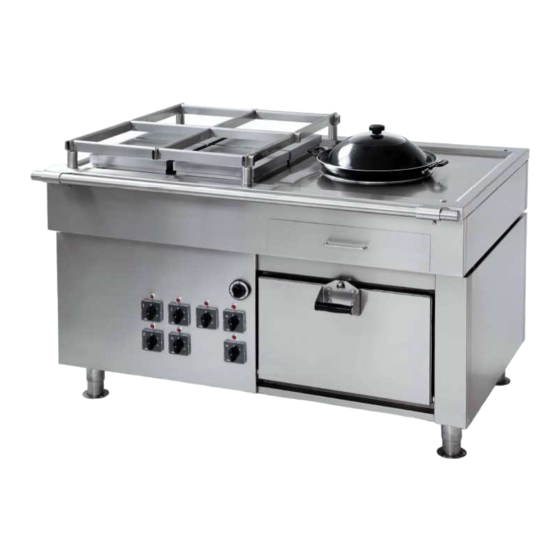

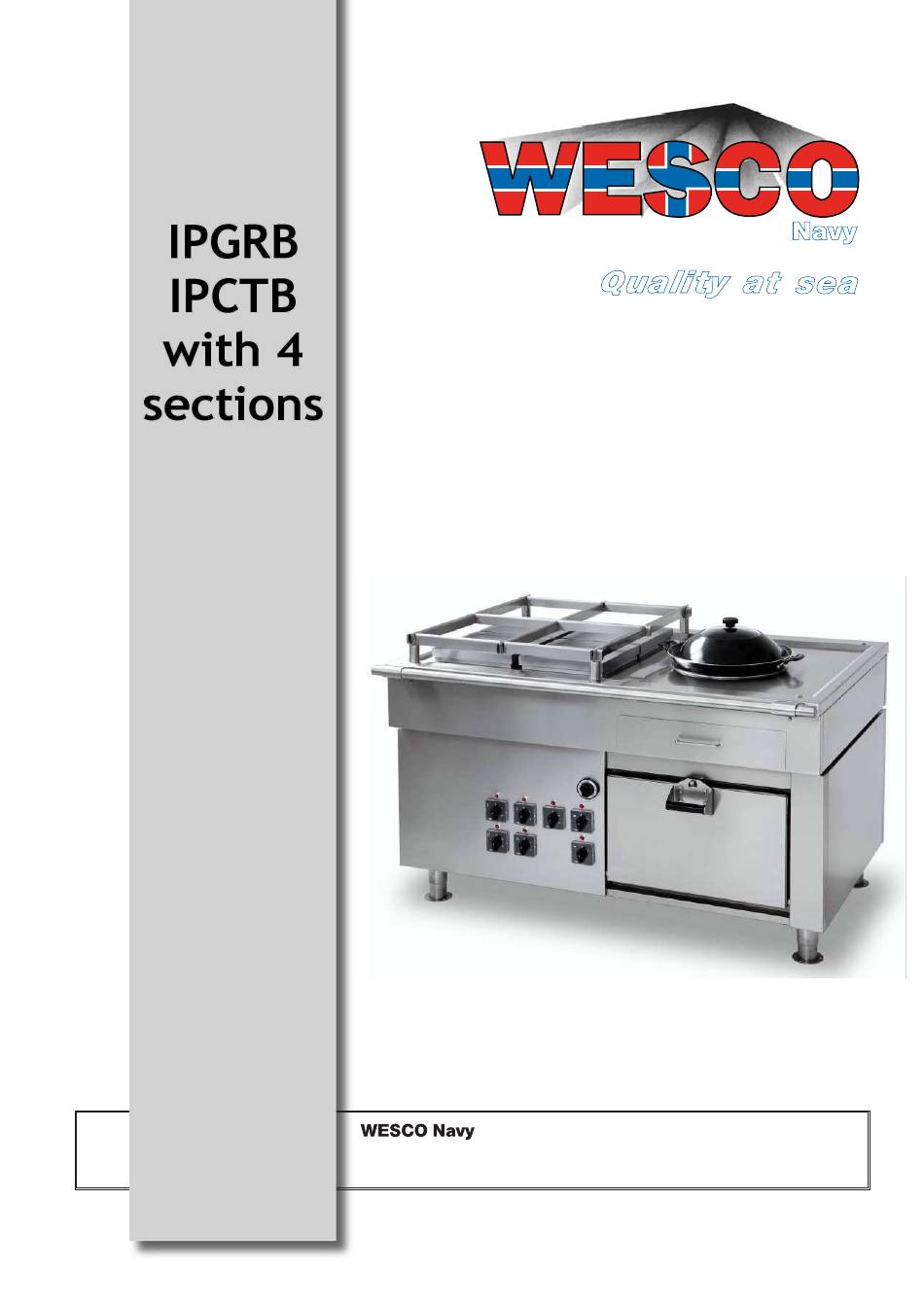

- Page 1 Manual / Handbuch Spare parts list / Ersatzteilliste Equipment Imp.-Exp. GmbH Zitterpappelweg 9 • • D - 22391 Hamburg Tel.: + 49 40 60009468-0 Fax: + 49 40 536 75 01 • • E - M a i l : i n f o @ w e s c o - n a v y. c o m w w w .
- Page 3 PARAGRAPH PAGE DESCRIPTION INTRODUCTION GENERAL WARNINGS INSTALLATION DRAWINGS INSTALLATION FUNCTIONING RULES MAINTENANCE WIRING DIAGRAM RANGE VIEW WITHOUT OVEN TOP RANGE VIEW WITH OVEN PLATES BASE RANGE VIEW WITH OVEN PREVENTIVE MAINTENANCE SPECIAL TOOLS SPARE-PARTS ORDERS STAINLESS STEEL MAINTENANCE...
- Page 4 INTRODUCTION These instructions are published for the use of personnel to whom the marine electrical range unit series is issued. Each unit will have his own copy in English language, if requested and at extra cost, handbooks can be supplied in different languages. GENERAL WARNINGS Please read very carefully the content of this book because is giving very important indications for the safety installation, use and maintenance of unit.
- Page 7 INSTALLATION The bolts of antirolling support bars fix also the top to the structure. When the support bars are remove, the top will be fix with bolts M8x15 Installation must be done according to manufacturer instructions and by qualified personnel. The unit must be used by trained staff only.
- Page 8 FUNCTIONING RULES Hot plate connection is obtained by operating the change over delta-star switches located in the switch board panel (drawing pag. 4and 5). Each connected plate is signalled by a (red) pilot-lamp, located in the switch board panel. Plates heating adjustment is obtained by operating the delta-star switches located in the switch board panel.
- Page 9 ELECTRIC MARINE RANGE MAINTENANCE Disconnect power and make sure no one can connect power during maintenance or repair time. To avoid any problem make sure that all the different connections and heating elements will have wellfastened junction blocks. An accurate tightening of electric wires in the junction blocks is essential for a good and durable machine functioning.
- Page 13 LEGEND OF DRAWING AT PAGE 10 POS. CODE DESCRIPTION 901100050 Hand rail support 901100620 Side handrail (on request) 901101570 Aluminium support bar 901101572 Bolt M8 901102550 Side antirolling bar 901102562 Back and front antirolling bar 901100640 Front handrail, back on request Vedi/See Pag.
- Page 15 LEGEND OF DRAWINGS PAGES 12 POS. CODE DESCRIPTION 901100050 Hand rail support 901100620 Side handrail (on request) 901101570 Aluminium support bar 901101572 Bolt M8 901102550 Side antirolling bar 901102562 Back and front antirolling bar 901100640 Front handrail, back on request Vedi/See Pag.
- Page 21 LEGEND OF DRAWING AT PAGE 18 POS. CODE DESCRIPTION Base structure Lateral panel Back panel 901165120 Cord connector PG.21 (for 400 V, 415 V, 440V 480V) 901165130 Cord connector PG.29 (per 115 V, 230V) 901170015 Adjustable foot 955050150 Junction block 901171050 Bracket 955210060...
- Page 22 PREVENTIVE MAINTENANCE DAILY Control of regular functioning of various controlling apparatus (pilot lamps, thermostat, delta star switches) MONTHLY Control of feeding and derivation junction blocks. Control the wear and tear of oven door gasket, if necessary replace Control wear and tear of oven door movement. Regular greasing of springs.
- Page 23 SPARE PART ORDERS For eventual spare part orders you can contact our head office: WESCO Navy GmbH Zitterpappelweg 9 22309 Hamburg Tel. ++49 40 60 00 94 68 - 0 Fax: ++49 40 5 36 75 01 Web site: www.wesco-navy.com e-mail: info@wesco-navy.com...
- Page 24 USEFUL ADVICES FOR STAINLESS STEEL CARE - Stainless steel is called such because its corrosion resistance is due to a thin coat of protective oxide formed on its surface by the exposition to the air of the steel sheet. - Stainless steel is easy to clean and maintain. However, stainless does not mean non staining. Rather, it means that it will stain less.
- Page 25 - Rust stains caused by inappropriate care and bad maintenance. Use correct products, enquire detergents manufactures ( Ex. Soilax - Diversey - Henkel - Level - Oakite - Benckiser, etc.). Rely upon recommendations of your fabricator. A good agent that has given satisfactory result for eliminating rust stains is the Oakite 31/A, after its use rinse plentifully with water.
- Page 26 ATTENTIOTN: WHEN THE GALLEY RANGE IS INSTALLED, YOU HAVE TO ENSURE THAT THE FREE SPACE BELOW (BETWEEN THE FEET, 150 MM HEIGHT) N O T COVERED (SEE ATTACHED SAMPLE) FROM ANY SIDE , OTHERWISE THE GALLEY RANGE WILL GET PROBLEMS DUE TO LACK OF AIRCIRCULATION!! DEFECTS CAUSED BY THIS NON- CIRCULATION OF AIR ARE...
