Worksaver SS-590 Owner's/Operator's Manual

Skid steer mounted hydraulic mixer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

OWNER'S /

OPERATOR'S

MANUAL

MODEL NO.

SS-590

CAUTION

For Safe Operation

Read Rules And

Instructions Carefully

SI NO LEEINGLES, PIDA AYUDA

A AIGUIEN QUE SI LO LEA

PARA QUE LE TRADUZCA LAS

MEDIDAS DE SEGURIDAD.

THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD

BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE

1. Select an area for assembly that is clean and free of any

debris which might cause persons working on the

assembly to trip.

2. Do not lift heavy parts or assemblies. Use crane, jack,

tackle, fork trucks or other mechanical devices.

3. Preview the assembly instructions in your operator's

manual before proceeding further.

4. If the assembly instructions call for parts or assemblies to

be blocked up, use only blocking material that is in good

condition and is capable of handling the weight of the

assembly to be blocked. Also insure that the blocking

material is on a clean, dry surface.

5. Never put hands, or any part of body, under blocked up

assemblies if at all possible.

SKID STEER MOUNTED

HYDRAULIC MIXER

Safety Instructions

Tractor Preparation

Operating Instructions

CAUTION

6. After completing assembly, thoroughly inspect the

machine to be sure that all nuts, bolts, hydraulic fittings

or any other fastened assemblies have been thoroughly

tightened.

7. Before operating the machine, thoroughly read the

operation section of your operator's manual.

8. Before operating, read the maintenance section of your

operator's manual to be sure that any parts requiring

lubrication, such as gearboxes, are full, to avoid any

possible damage.

9. Before operating equipment – If you have any

questions regarding the proper assembly or

operation, contact your dealer or representative.

Assembly & Mounting

Maintenance

Repair Parts

Table of Contents

Need help?

Do you have a question about the SS-590 and is the answer not in the manual?

Questions and answers

Summary of Contents for Worksaver SS-590

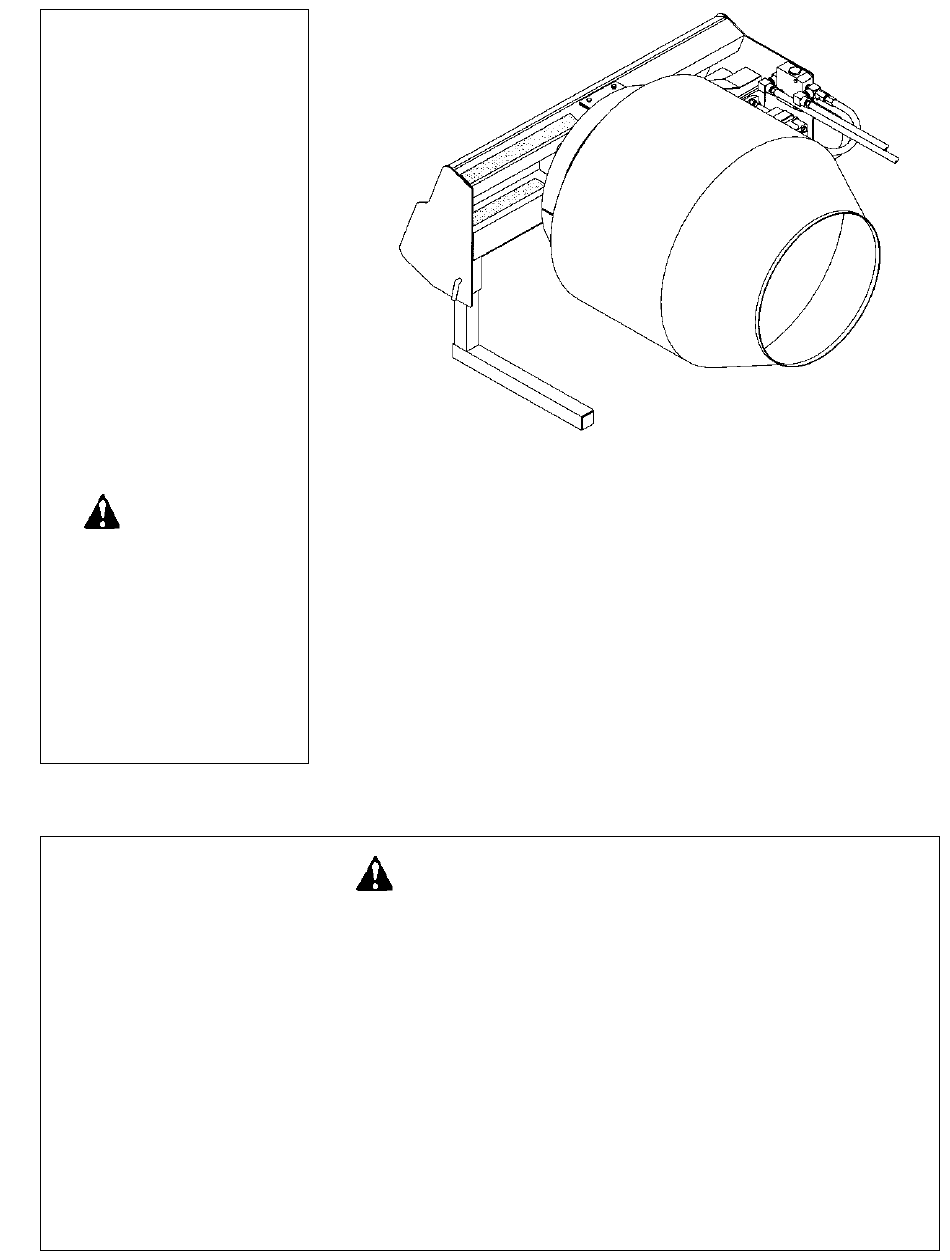

Page 1 OWNER’S / OPERATOR’S MANUAL MODEL NO. SS-590 CAUTION SKID STEER MOUNTED For Safe Operation HYDRAULIC MIXER Read Rules And Instructions Carefully Safety Instructions Assembly & Mounting SI NO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA Tractor Preparation Maintenance PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD.
Page 2: Table Of Contents
Like all mechanical products, it will require cleaning and upkeep. Lubricate the Mixer as specified. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Mixer here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY...
Page 3: Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability.
Page 4: Safety Information
To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Page 5 SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
Page 6 SAFETY INSTRUCTIONS (continued) SAFETY SIGNS Keep safety signs clean and legible at all times. Replace safety signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety signs are available from your Distributor or Dealer Parts Department or the factory. How to Install Safety Signs: Be sure that the installation area is clean and dry.
Page 7 SAFETY INSTRUCTIONS (continued) STARTING AND STOPPING SAFETY Be certain the skid steer is in neutral or park position before starting engine. Do not leave the skid steer and attachment unattended with the engine running. Mixer operating power is supplied from skid steer hydraulic system. Refer to your skid steer manual for hydraulic engagement and disengagement instructions.
Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Before you operate the mixer, check over all pins, bolts and connections to be sure all are securely in place. Replace any damaged or worn parts immediately. Never place hands or hand held tools (shovel) into the mixer drum while it is turning. It could catch on the mixer paddles and whip around, possibly injuring the operator or helper.
Page 9 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Operate loader from operator’s seat only. Remain at controls until operating cycle is complete. Stop loader gradually when lowering or lifting loads. Operate loader controls smoothly, avoid jerky operation. Allow for additional length of loader arms and attachment on skid steer while turning. Be sure that people, livestock, or pets are not standing near the machine while operating.
Page 10 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Keep all persons away from operator control area while performing adjustments, service, or maintenance. Inspect the entire machine periodically. Look for loose fasteners, worn or broken parts, and worn driveline parts and/or shields.
Page 11 SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. Always be sure the attachment is in the proper slightly raised position for transport.
Page 12: Safety Signs
SAFETY SIGNS WARNING Stand clear 101027 BE CAREFUL! Use a clean, damp cloth to clean safety decals. Avoid spraying to close to decals when using a pressure washer; high-pressure water can enter through very small scratches or under edges of decals causing them to peel or come off.
Page 13 INSTRUCTIONS SKID STEER REQUIREMENTS This unit is shipped almost completely assembled. Refer to the Safety Precautions and Warnings on the AND PREPARATION —————————————————— front cover and in the Safety Section of this manual prior to working on the machine. The Model 590 Hydraulic Mixer is designed to fit skid steer units with the “Universal”...
Page 14 INSTRUCTIONS (continued) SKID STEER MIXER INSTALLATION / REMOVAL —————————————————— TO INSTALL: 1. Read and understand skid steer manufacturer's instructions for installing attachments. 2. The quick attach coupler handles should be in the unlocked position with lock pins retracted, Figure 1. Figure 2 –...
Page 15: Operating Instructions
Use 5, 6 or 7 gallons of water per sack of cement with dry sand and dry aggregate depending on NOTE: If the legs of the SS-590 Mixer interfere with the strength of concrete required. The less water you use dumping the concrete, they can easily be turned 90°...
Page 16 MIXING INSTRUCTIONS SAND MIX • Put five (5) gallons of water into the mixing drum —————————————————— • Add four (4) 80 lb. Bags of pre-mix concrete For overlaying concrete and as a bedding mix and joint • NOTE: Mixture will be very sloppy grout for flag-stone, slate or brick walkways and patios.
Page 17: Trouble-Shooting
TROUBLE-SHOOTING PROBLEM: MIXER WILL NOT TURN PROBLEM: MIXER STALLS POSSIBLE SOLUTIONS: POSSIBLE SOLUTIONS: • Remote quick-connect couplers not properly con- • Hydraulic system may not be supplying rated pressure nected. Mixer is designed to turn in only one direction. (usually 1850 to 3000 PSI). Consult your dealer. Reverse hydraulic control lever or switch hoses.
Page 18: Parts Lists
MODEL SS-590 MIXER PARTS LIST...
Page 19 MODEL SS-590 MIXER PARTS VIEW...
Page 20: Parts Lists
HYDRAULIC MIXER GEARBOX PARTS LIST...
Page 21: Specifications
MODEL SS-590 MIXER SPECIFICATIONS Drum Capacity ........Eleven (11) cu./ft.
Page 22 • Operate the skid steer and attachment only while seated Keep alert and watch the front as well as the rear when in the driver’s seat. working with the attachment. SS-590 MIXER OWNER’S / OPERATOR’S MANUAL WHEN ORDERING REPAIR PARTS,...
