Summary of Contents for Connect AO-DPF1810

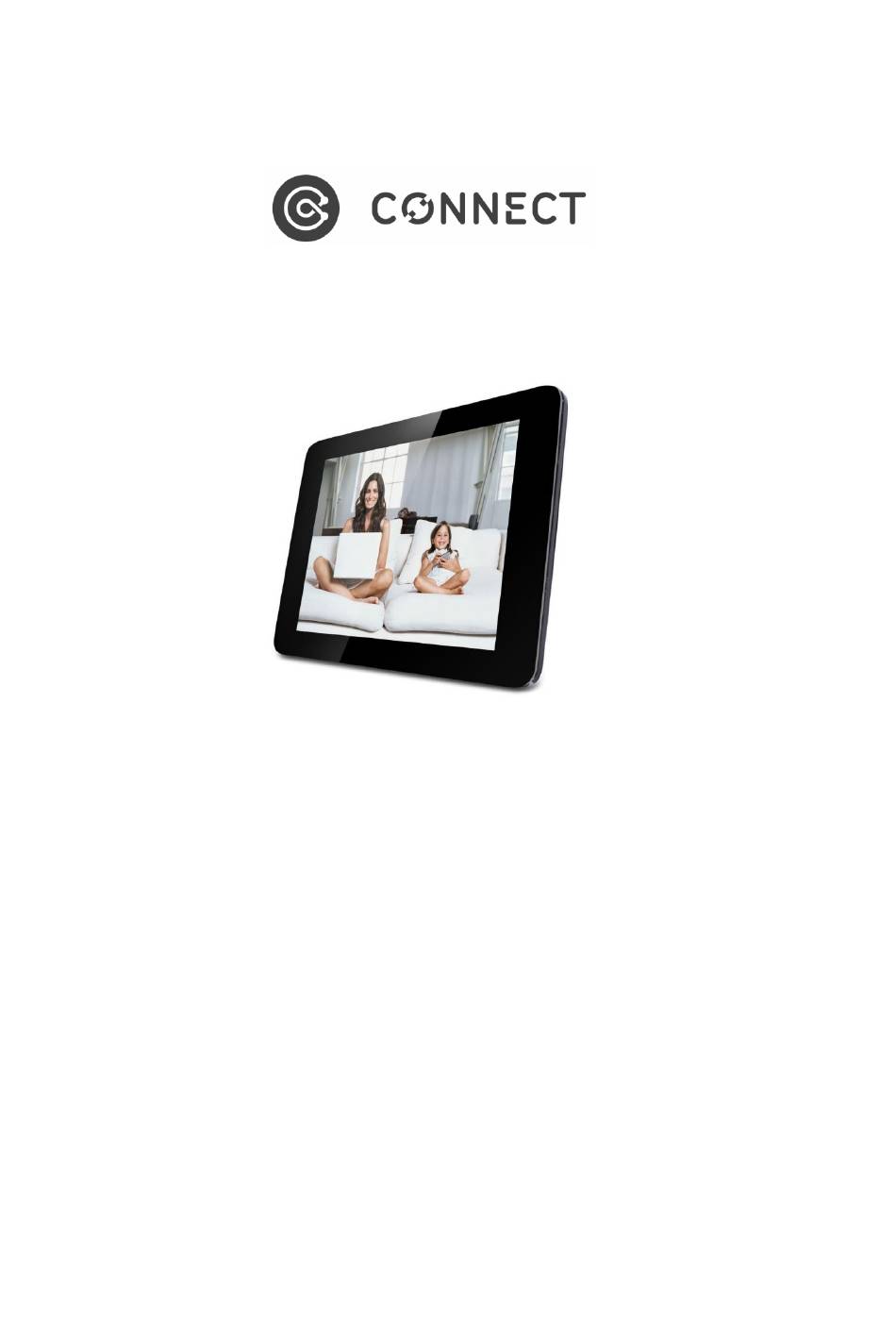

- Page 1 10” Digital Photo Frame Instruction manual Product Code: AO-DPF1810...
-
Page 2: Table Of Contents
Table of contents 1.Product Specifications..................1 1.1.Features......................1 2. Remote control key definition................2 3．Instruction manual..................3 3.1 Power On / Off..................3 3.2 Main menu interface................3 4.Video Player.....................3 4.1.Auto Play…………...................3 4.2.Video Player browser interface...............4 5.Music Player......................4 6.Photo browser and play..................5 6.1.Picture playback effects settings.............5 7.Documents Management..................7 8.Calendar and clock settings................7 9.System Settings....................10... -
Page 3: Product Specifications
1.0 Product Specifications Power supply: DC power supply 5V 1.5A 2A 1.1 Features ◆ Support JPEG, BMP format picture browsing; support image rotation, scaling; automatic playback support for multiple effects, support for background music playback ◆ Clock calendar display: support calendar, calendar, clock display; ◆... -
Page 4: Remote Control Key Definition
2.0 Remote control key definition The user can use the remote control to achieve full functionality, remote control is defined as follows: 1.MUTE：When you press the play, turn off the sound; press again to re-open。 2.STANDBY：Press the power-on state into the standby mode; then close 3. -
Page 5: 3．Instruction Manual
file to quickly select the next。 3.0 Instruction manual Power On / Off After connecting the power, the system directly to the function selection interface; the following figure. 3.2. The main interface the main interface icons are: Video, music, pictures, document management, calendar, settings. -
Page 6: Video Player Browser Interface
4.2. Video Player browser interface 1. Main Menu select the "Movie" to enter the video playback file list, press "up" or "down" button to select the video file, then press the "confirm" key to start playing. 2. Press the remote control "Movie" quick play button, directly play video files。 3. -
Page 7: Photo Browser And Play
3. Setup menu "Auto Play" is selected for "music", direct play music card after card boot files。 4. Bottom right of the two rows of information are artist and album name。 6.0 Photo browser and play 1. Main Menu select the "Picture" to enter the music playlist file, press "up" or "down" key to select a picture file, then press the "confirm"... - Page 8 6.1 Picture playback effects settings 1. Background: When playing pictures, long press the return key on the remote control or the frame, a pop-up dialog box will appear, you can set according to your favorite pictures into a main menu background image, the camera on the remote control or press the OK button, the background icon will appear prompt whether the dialog box to set the background image, move the cursor to select whether or not, in the press the OK button.
-
Page 9: Documents Management
OK button on the remote control or on the machine to determine the options. This is the picture playback speed is fast, the factory default speed is the speed. 6. The ratio: the ratio refers to the ratio of the playback picture in the picture when playing, long press the return key on the remote control or the machine, pop-up dialog box, move the cursor to select a ratio, press the OK button after selecting the remote control or on the machine, pop-up dialog frame Options dialog box, select the options there are 5 (Auto,... - Page 10 Figure II Figure III Figure IV 1. Clock Calendar mode: In the main interface or file playback interface, press the calendar shortcut button on the remote control to directly enter the clock calendar interface, clock calendar interface has four modes, as shown above, plus a digital calendar digital clock, digital clock plus calendar, the British clock plus digital calendar, digital clock plus calendar, select the clock calendar mode or press the OK button on the remote control to switch the machine on, you can select a calendar clock mode.
- Page 11 2. Calendar clock settings The clock calendar interface long press the return key on the remote control or the machine, pop-up dialog box settings, date, 12-hour, 24-hour clock is set, as shown above. 3. Pop-up dialog box, set the date, press the left and right cursor keys on the remote control or the machine and press OK to select years, the press on the remote control or the machine is up and down cursor keys to select Press OK after year increase decrease, choose a good year in the remote control OK button or loom, month, and day are also...
-
Page 12: System Settings
9.0 System Settings Language: The language setting bar 12 languages, such as! Chinese, English, French, German, Russian, Spanish, Portuguese, Italian, Turkish, Swedish, Polish, Japanese, press on the remote control or the machine to determine the key and the left and right cursor keys to select the language. - Page 13 Key Tone: Key tone means I turn set up inside, then we use the remote control or when the machine key operation, there is the sound of drops, no key tone is set to Off. Backlight Brightness: Set the brightness refers to the machine, the brightness range of 1--15 brightness, factory default setting is 14 Contrast: is when you set the machine color contrast, the contrast range is 1 --- 15 factory default setting of 8...
- Page 14 Warranty Against Defects Laser Corporation Pty Ltd (“Laser”) warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with 2accompanying recommendations or instructions where provided.
