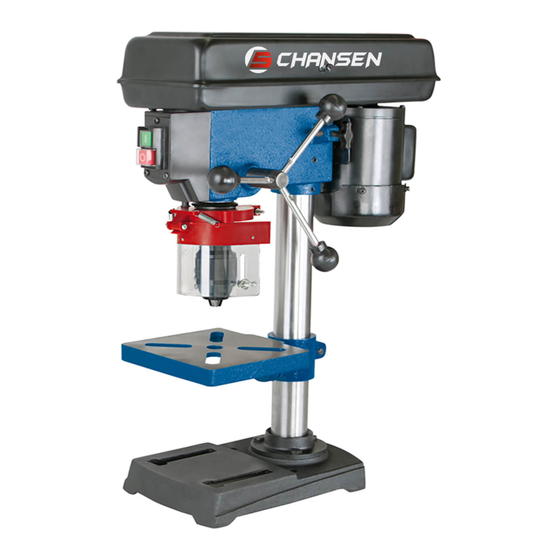

- Page 1 8- INCH DRILL PRESS IMPORTANT: INSTRUCTION For your own safety, read and follow all of the Safety Guidelines and Operating Instructions before operating MANUAL this product.
- Page 2 TABLE OF CONTENTS TABLE OF CONTENTS ....................SPECIFICATIONS ...................... SAFETY GUIDELINES ....................ELECTRICAL SAFETY ....................PACKAGE CONTENTS ....................KEY PARTS DIAGRAN....................ASSEMBLY INSTRUCTIONS..................OPERATION ......................... MAINTENANCE ......................TROUBLESHOOTING GUIDE ..................EXPLONED VIEW ......................PARTS LIST ........................WARRANTY ........................SPECIFICATIONS Model Motor 120V, 60Hz Power...
- Page 3 BD4603 SAFETY GUIDELINES - DEFINITIONS WARNING ICONS Your power tool and its Instruction Manual may contain “WARNING ICONS”(a picture） symbol intended to alert you to and/or instruct you how to avoid a potentially hazardous condition). Understanding and heeding these symbols will help you operate your tool better and safer.
- Page 4 with approved safety equipment, such as those dust masks that are specially designed sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals. WARNING To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection.
- Page 5 BD4603 GENERAL SAFETY INSTRUCTIONS ALWAYS wear Safety Goggles (not BEFORE USING THIS POWER TOOL glasses) that comply with ANSI Safety Safety is a combination of common sense, standard Z87.1. Everyday eyeglasses staying alert and knowing how to use your have only impact–resistant lenses. They power tool.
- Page 6 to move during certain operations, bolt the carefully checked to determine that it workbench to the floor. will operate properly and perform its intended function– check for alignment 2. THIS DRILL PRESS is intended for use in of moving parts, binding of moving parts, dry conditions, indoor use only.
- Page 7 BD4603 than using your hand and it frees both CHUCK KEY as provided with the drill hands to operate tool. press. 15. WHEN using a drill press vise, always WARNING fasten to the table. TO AVOID BEING PULLED INTO THE 16.
- Page 8 LASER SAFETY This tool is equipped with a patented precision cross-pattern laser alignment and centering guide. 1. Do not stare directly at the laser beam. DANGER Eye damage may occur if you deliberately stare into the beam. 2. The laser light beam used in this system is Class II with maximum 1 mW and 660 nm wavelengths.
- Page 9 BD4603 Note : The use of an adaptor plug is illegal in some GROUNDING INSTRUCTIONS areas, includingCanada. Check your local codes. IN THE EVENT OF A MALFUNCTION OR If you have any doubts or if the supplied plug BREAKDOWN, grounding provides a path of does not correspond to your electrical outlet, least resistance for electric current and reduces consult a qualified electrician before proceeding.
- Page 10 No. Description Qty. Table support bracket Support lock handle Column Base Column support collar M8 x 20 hex head screw Table bevel lock screw Table Head assembly Chuck guard 1/2" Chuck Chuck key Feed handles Fig. B...
- Page 11 BD4603 Table support bracket Switch lock-out key Support lock handle Quill return spring Column Depth stop rod & nuts Base Motor pivot Column support collar Laser switch Table bevel lock screw Motor Table Belt & pulley cover Chuck safety guard Depth scale and indicator 1/2”...
- Page 12 BD4603 inside of the pulley cover through the hole and WARNING attach the knob (X, fig 3) to the outside. For your own safety, never connect plug to LASER BATTERIES power source outlet until all assembly steps are complete and you have read and understood 1.
-
Page 13: Table Adjustment
BD4603 Table Adjustment WARNING 8. To position the table (H, fig 2) vertically, loosen Before using this machine, the operator should the support lock handle (B, fig 2) and raise or carefully read over this operation manual and lower the table to the desired position. Re-tighten acquaint himself with the construction, controls the support lock handle. - Page 14 into the material.Particularly in wood drilling, ease up on the pressure when nearing the point where the drill bit is about to emerge on the other side of the workpiece. 19. After drilling a hole, do not release the feed handle but restrain it lightly, allowing the spring to raise spindle sleeve gently to its original position.
- Page 15 BD4603 WARNING For your own safety, turn the switch off and remove the plug from the power source outlet before a d j us ti n g, maintaining or lubricating your drill press. WARNING To avoid electrocution or fire, any repairs to electrical systems should be done by an authorized repair center.
- Page 16 BD4603 WARNING To avoid injury from an accidental start, turn the switch OFF and unplug the tool before moving, or making adjustments. • Consult your Sears Service Center if for any reason the motor will not run. PROBLEM PROBLEM CAUSE SUGGESTED CORRECTIVE ACTION 1.
- Page 17 BD4603 PROBLEM PROBLEM CAUSE SUGGESTED CORRECTIVE ACTION 1. Use a straight drill bit. 2. Replace bearings. 1. Bent drill bit. 3. Install drill properly. See Section Excessive drill 2. Worn bearings. bit runout or “BASIC DRILL PRESS OPERATION” 3. Drill bit not properly wobble.
- Page 19 BD4603 POS. DESCRIPTION QTY. POS. DESCRIPTION QTY. Base Retaining ring 22 Column support Pulley insert Screw, hex hd. M8 x 20 Bearing, ball 6203 Column tube Spacer Table support Retaining ring 17 Table clamp Pointer Table Depth stop rod Screw hex hd. M12 x 25 Nut, hex M10 Knob Screw, hex.
- Page 20 BD4603 ONE-YEAR LIMITED WARRANTY Having Problems ? Give us a chance to help you before returning this product Email : info@toolots.com After the phone：(844) 866-5687...
