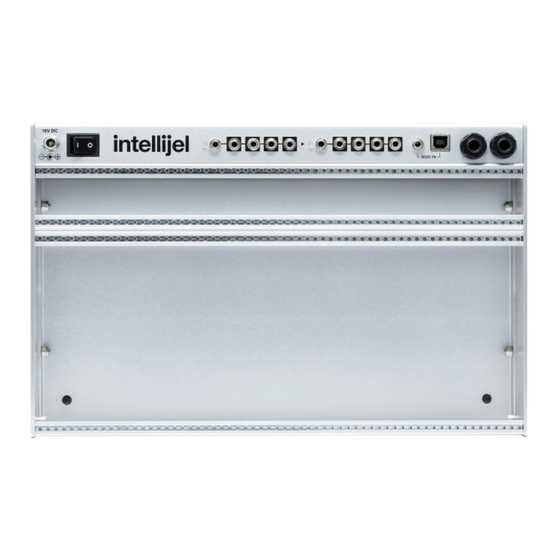

OVERVIEW Intellijel’s Palette case is compact enough to slip into a laptop bag, and shallow enough to rest comfortably on a desktop — yet its capabilities far exceed its size. It contains 62 HP of 3U space for mounting eurorack standard 3U modules, plus another 62 HP of 1U space for all those necessary little ... -
Page 5: Top Panel
1. Power Input Socket Connect the included 40W, 15V center-pin-positive power adapter to this socket to provide power to your case. To insure proper power is applied to all your modules, use only Intellijel certified power adapters. 2. Power Switch ... - Page 6 , where it can be connected to a MIDI input module, such as the Intellijel µMIDI 1U. 6. USB MIDI Input MIDI input connector on USB. MIDI sent into the USB port is routed to the 10-pin MIDI ...
- Page 7 A second configurable ¼” Neturik TRS jack, which operates in conjunction with TRS Audio Jack 1, described above. 9. 62 HP for mounting 1U modules 62 hp of mounting space for Intellijel format 1U modules. 10. 62 HP for mounting 3U modules ...
-
Page 8: Circuit Board
Palette Case CIRCUIT BOARD Running along the back edge of the Pallette is its built-in circuit board, which contains all of Palette’s audio, midi, power, and module connection circuitry. The jacks and switches that run along the top of the circuit board were discussed earlier in the Top ... - Page 9 Jacks on your Palette case, unexpected results may occur. C. MIDI Connector Connect the cable included with your Intellijel µMIDI 1U module to this 10-pin connector to use the Palette’s USB and ” TRS MIDI Jacks as MIDI inputs for the µMIDI 1U. ...
- Page 10 E. 5V Connectors Connect these 5V connectors to any modules that require a 5V power source. You can also use this to power an Intellijel USB Power 1U module, which (for example) is useful for connecting a small USB gooseneck LED light. ...
-
Page 11: Installation Tips
Palette Case INSTALLATION TIPS Palette was designed to provide maximum performance and compatibility in the smallest possible space. Because of this, and in accordance with those pesky little laws of physics, it can sometimes be a little tedious to plug and unplug the various cables into the circuit board at the rear of the case. Fortunately, there are a couple of things you can do to make the process quicker and easier: ... -
Page 12: Understanding Buff Mults
Palette Case UNDERSTANDING BUFF MULTS “Buff Mult” is vernacular shorthand for “Buffered Multiplier.” A buff mult takes a single input signal and routes it to multiple outputs simultaneously. For example, you might want to route a keyboard’s pitch CV to three different destinations: one to govern the pitch of your main oscillator;... -
Page 13: Technical Specifications
Palette Case TECHNICAL SPECIFICATIONS Dimensions 324.4 x 204.4 x 51.3 (mm) (58.5 mm high, when including rubber feet/jacks) 12.77” x 8.05” x 2.02” (2.3” high, when including rubber feet/jacks) 62 hp for 3U modules + 62 hp for 1U modules Maximum Module Depth ...
