Supertex inc.
Features
Switch mode controller for single switch LED drivers
Enhanced drop-in replacement to the HV9910
Open loop peak current controller
Internal 8.0 to 450V linear regulator
Constant frequency or constant off-time operation
Linear and PWM dimming capability
Requires few external components for operation
Applications
DC/DC or AC/DC LED driver applications
RGB backlighting LED driver
Back lighting of flat panel displays
General purpose constant current source
Signage and decorative LED lighting
Chargers

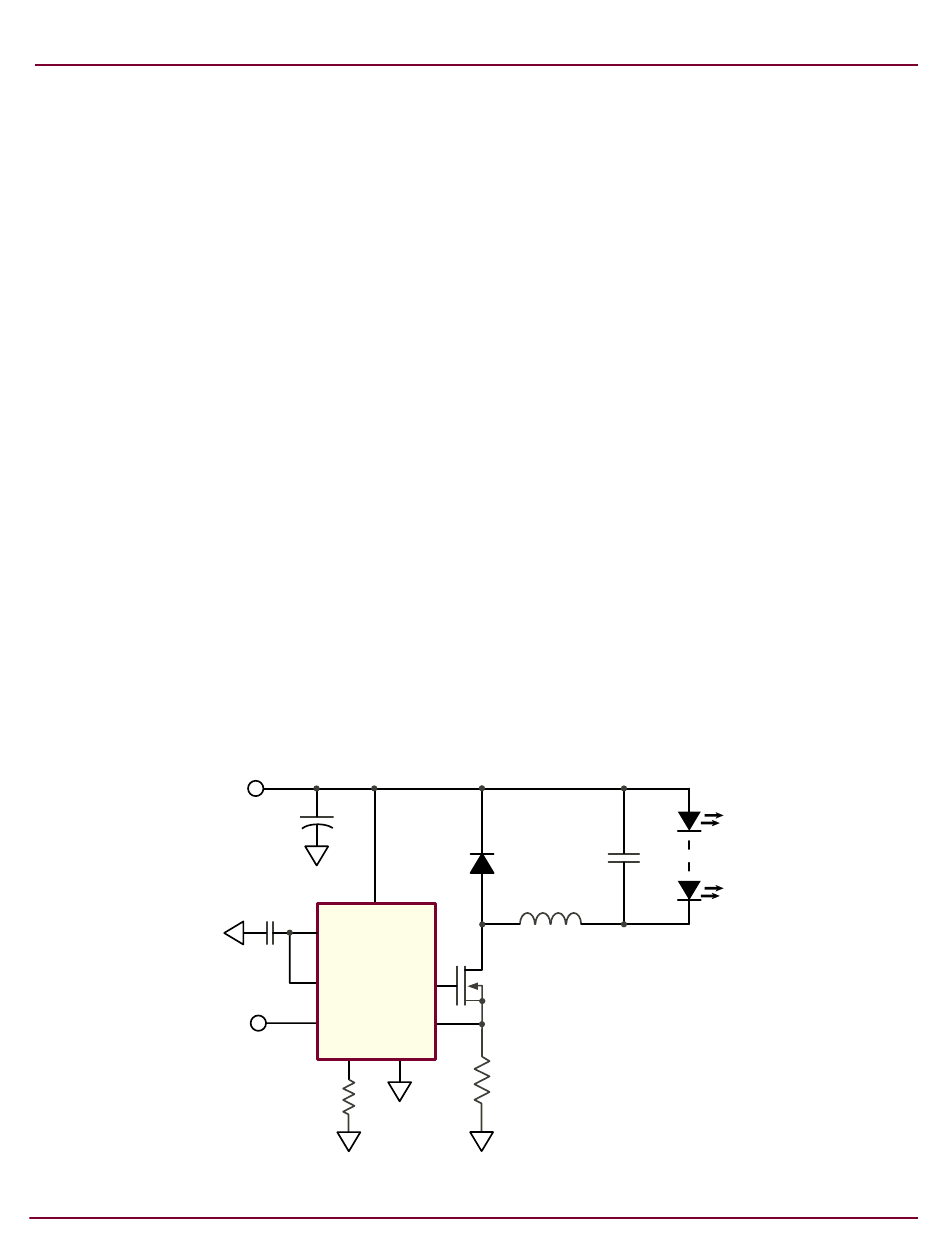

Typical Application Circuit
Supertex inc.
Universal High Brightness
LED Driver
C
IN
C
DD
VIN
VDD
HV9910B
LD
GATE
PWMD
CS
RT
GND
R
T
1235 Bordeaux Drive, Sunnyvale, CA 94089
General Description
The HV9910B is an open loop, current mode, control LED
driver IC. The HV9910B can be programmed to operate in
either a constant frequency or constant off-time mode. It
includes an 8.0 - 450V linear regulator which allows it to work
from a wide range of input voltages without the need for an
external low voltage supply. The HV9910B includes a PWM
dimming input that can accept an external control signal with a
duty ratio of 0 - 100% and a frequency of up to a few kilohertz.
It also includes a 0 - 250mV linear dimming input which can
be used for linear dimming of the LED current.
The HV9910B is ideally suited for buck LED drivers. Since
the HV9910B operates in open loop current mode control, the
controller achieves good output current regulation without the
need for any loop compensation. PWM dimming response is
limited only by the rate of rise and fall of the inductor current,
enabling very fast rise and fall times. The HV9910B requires
only three external components (apart from the power stage)
to produce a controlled LED current making it an ideal solution
for low cost LED drivers.
C
O
D1
L1
Q1
R
CS
Tel: 408-222-8888
HV9910B
www.supertex.com
