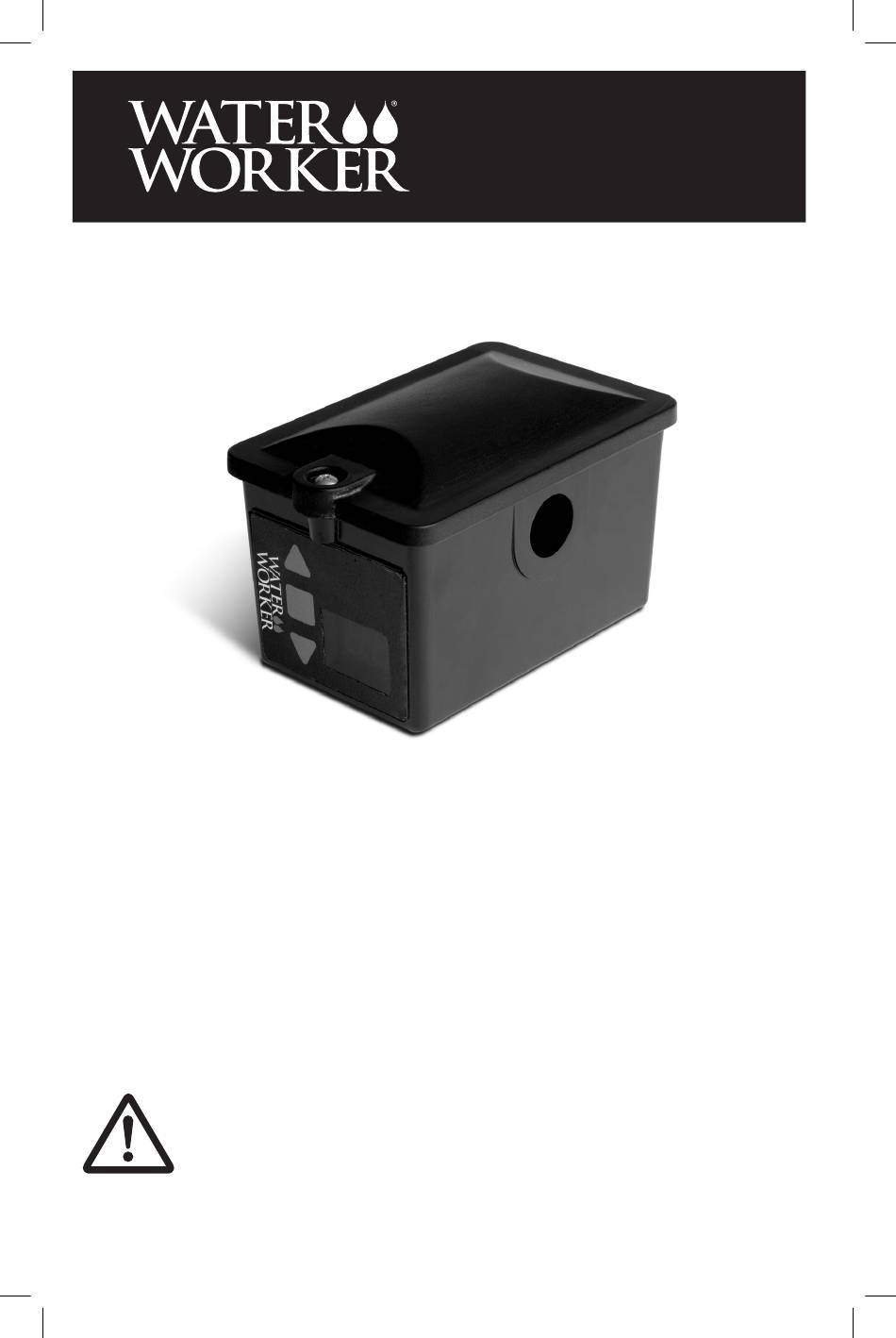

INSTALLATION MANUAL FOR DIGITAL PRESSURE CONTROL
Your WWDPC has been carefully assembled and factory tested. To enjoy
the full service this unit can provide, you should read and follow all of the
instructions in this manual. When all installation steps have been completed,
make sure you also follow the enclosed post-installation and startup checklists
before using your WATER WORKER
the sections describing proper product maintenance and follow the required
procedures as you use your WWDPC. Keep this manual with the product. This
manual may become out-of-date by later amendments. Check our web site,
www.waterworkerDIY.com or ask your WATER WORKER
updates relating to your product. This product comes with a limited two (2)
year warranty. Visit www.waterworkerdiy.com for complete warranty details.
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU
TO POTENTIAL PERSONAL INJURY AND OTHER HAZARDS. OBEY
ALL SAFETY MESSAGES THAT FOLLOW THIS SYMBOL TO REDUCE
THE RISK OF POSSIBLE INJURY AS WELL AS PROPERTY DAMAGE.
INSTALLER: LEAVE THIS MANUAL WITH THE OWNER
Part # 9046-0002 (01/19)
product. You should also read carefully
®
1
Model WWDPC
supplier for any
®
Patent Pending

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WWDPC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Water Worker WWDPC

  • Page 1 ® the sections describing proper product maintenance and follow the required procedures as you use your WWDPC. Keep this manual with the product. This manual may become out-of-date by later amendments. Check our web site, www.waterworkerDIY.com or ask your WATER WORKER supplier for any ®...
  • Page 2 ELECTRICAL POWER BEFORE SERVICING. ELECTROCUTION HAZARD. THE WWDPC MUST BE ELECTRICALLY GROUNDED. NOTE: The WWDPC will operate on 115 VAC & 230 VAC systems. Its ambient air temperature rating is 122°F / 50°C. 1. Disconnect power and verify with a volt meter.
  • Page 3 6. The opening of the enclosure shall be closed with hubs rated 3, 3S, 3SX, 3X, 4, 4X, 6 or 6P. NOTE: Steps 5 and 6 are required for outdoor installations only. 7. Following all electrical codes, wire the WWDPC using the wiring diagram below (Figure 3). NOTE: The WWDPC has openings to accept standard conduit terminations.
  • Page 4 The factory WWDPC setting is 40 psi cut-in and 60 psi cut-out. 2. Turn on power and ensure WWDPC display illuminates, “88” will appear, then code revision number, then “00”. Display will blank momentarily and the pump will start.
  • Page 5: Troubleshooting

    Check circuit breaker and wiring connections WWDPC error encountered See error chart below Faulty pump Contact pump manufacturer Pump will not Improper wiring (WWDPC or Check wiring per manufacturer’s activate pump) instructions Water flow stops Tank precharge too high Adjust precharge per manufac- before cut-in turer’s instruction...
  • Page 6 GENERAL SAFETY INFORMATION WARNING: REVIEW ALL GENERAL SAFETY INFORMATION PRIOR TO INSTALLATION. READ CAREFULLY PRODUCT INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS AND WARNINGS IN THE MANUAL MAY RESULT IN SERIOUS OR FATAL INJURY AND/OR PROPERTY DAMAGE, AND WILL VOID THE PRODUCT WARRANTY.
  • Page 7 • Do not install with components that are incompatible with the WWDPC. This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Page 8 T: 401.884.6300 • F: 401.885.2567 • www.waterworkerdiy.com WATER WORKER is a registered trademark in the U.S. and elsewhere. All rights reserved.
