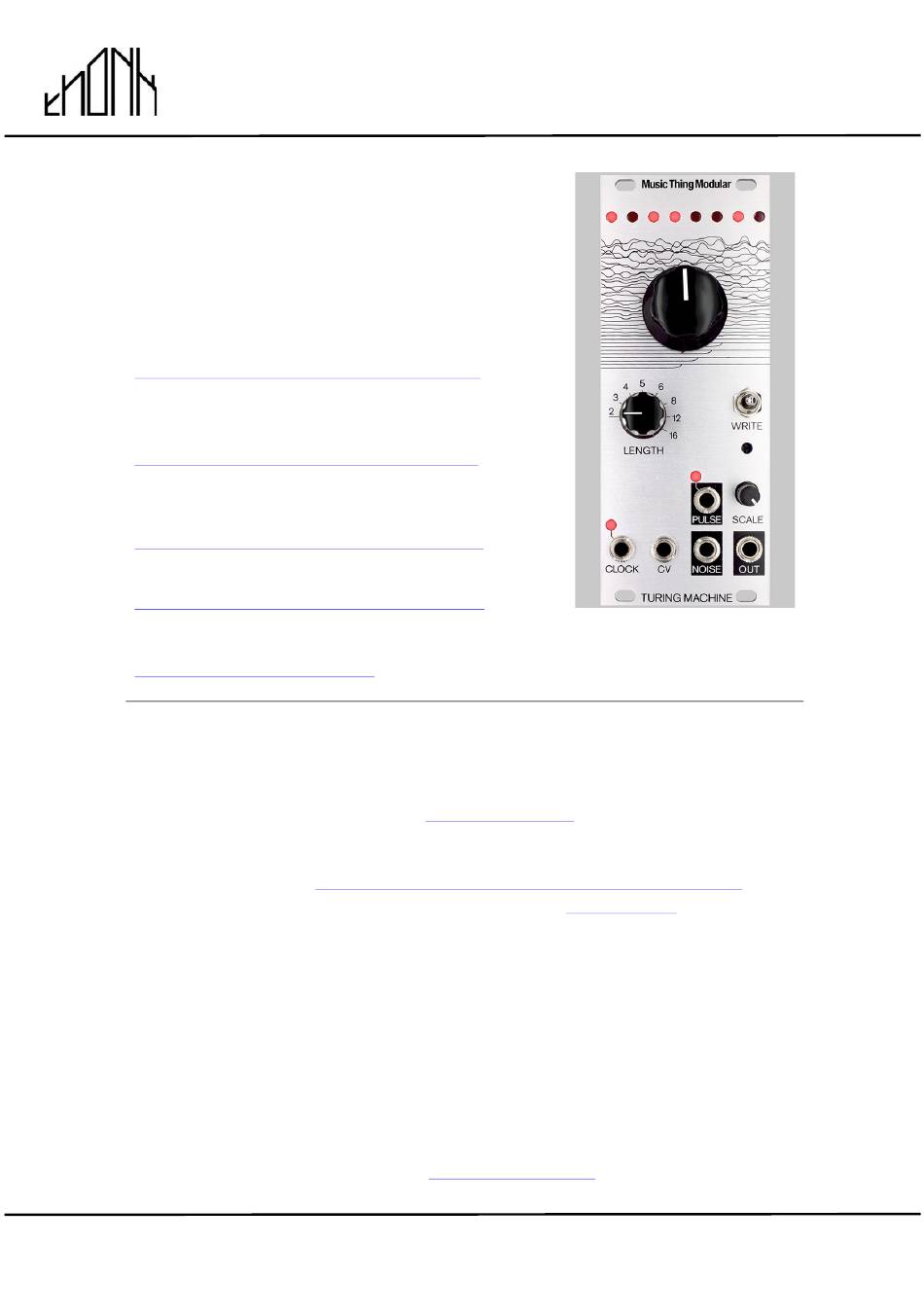

TURING MACHINE Mk ii
(APRIL 2016 ONWARDS)
Music Thing Modular Turing
Machine Mkii version
PLEASE DO NOT LINK TO OR REDISTRIBUTE THIS
DOCUMENT WITHOUT PERMISSION FROM THONK
For the most recent version of this
document please visit –
https://www.thonk.co.uk/documents/turing2016/
Refer also to the Music Thing
documentation here -
https://github.com/TomWhitwell/TuringMachine/
For all technical support please create a
Github account and log an issue here -
https://github.com/TomWhitwell/TuringMachine/issues
Chat about the build here –
https://www.muffwiggler.com/forum/viewtopic.php?t=159116
All Thonk kits are sold under our standard Terms and Conditions -
http://www.thonk.co.uk/faq/
DIY INSTRUCTIONS
This document gives detailed instructions that assume you have purchased a
complete Turing Machine kit from
assumes no previous knowledge of electronics.
To learn to solder try
the Adafruit guide to excellent soldering –
Watch and understand that whole YouTube video! If you're not achieving the
results shown in the video then you need to buy new tools or seek advice.
You will not end up with a working unit otherwise.
TOOLS REQUIRED
Soldering iron, snipe nose pliers, wire strippers, small flat head screwdriver
and diagonal cutters AKA snips AKA side-cutters. A Digital Multimeter is
always helpful for checking for bad solder joints and continuity. Thonk sell a
range of inexpensive tools here -
April 20th 2016
Eurorack DIY Kit
Instructions
www.thonk.co.uk
https://www.youtube.com/watch?v=IpkkfK937mU
http://bit.ly/1jxqF3n
www.thonk.co.uk
Version 1.01
after April 2016, it also
http://bit.ly/1l77tF4
and
1
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Music Thing Modular TURING MACHINE Mk ii
- Page 1 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Music Thing Modular Turing Machine Mkii version PLEASE DO NOT LINK TO OR REDISTRIBUTE THIS DOCUMENT WITHOUT PERMISSION FROM THONK For the most recent version of this document please visit –...
- Page 2 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions SOLDER JOINTS Your solder joints should look like those shown as ‘OK’ below, they should have that neat conical shape on BOTH sides of the PCB. If they don’t look the same on both sides then stop! Work out why from the soldering guides linked and don’t continue until you are getting those results.
- Page 3 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions TURING MACHINE BUILD INSTRUCTIONS To start with we advise emptying the This document has hi-res images. bags into two separate bowls or ZOOM IN for a closer look containers so it makes it easier to find parts.
- Page 4 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Solder the single 47K resistor into position R6 as shown Solder the single 100K resistor into position R4 as shown Solder the two 1N4001 diodes into the positions as shown.
- Page 5 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Solder the two Ferrite Beads into place as shown. 3 x 14 pin 4 x 16 pin Next solder the eight IC sockets into place. Make sure the notches in the sockets match the notches on the silkscreen.
- Page 6 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Break off four of the 1n caps and save two for later. Solder those four 1n caps into positions C1, C2, C3 & C4. Next identify the twelve 100n capacitors (they are on a card strip, orange and labeled ‘104’).
- Page 7 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Next identify the two 78L09 voltage regulators. Make sure you check the codes correctly! Do not mistake them for the single TL431 or single 2N3904 included which look very similar.
- Page 8 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions 6 pin 10 pin Solder the three female dual row sockets into place as shown. There are two six pin sockets and one ten pin sockets. Make sure the are soldered flat against the PCB.
- Page 9 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions NOTE! BOARD IS FLIPPED 180 DEG IN THIS IMAGE Next you will place the eight IC’s required on this PCB as shown. CD4050 CD4081 TL072 NOTE – Orientation is vital!
- Page 10 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Let’s move onto the other PCB, which we call the ‘Jack PCB’ Identify the single 1N4148 diode and solder into the position show. Note the black line on the body of the Diode should match the white line on the silkscreen.
- Page 11 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Solder the ten 2.2K resistors into positions R1, R4, R6, R8, R13, R14, R15, R16, R17 & R21 as shown. Solder the single 3.3K resistor into positions R20 as shown.
- Page 12 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Solder the single 51K resistor into positions R5 as shown. Solder the four remaining 100K resistors into positions R10, R11, R22 and R29 as shown. Solder the two 470K resistors into positions R7 and R31 as shown.
- Page 13 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Next solder the single 10n capacitor (marked ‘103’) into position C9 as shown. Next solder the remaining five 100n capacitors (marked ‘104’) into position C7, C8, C13, C14 & C16 as shown.
- Page 14 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Next identify the single TL431 transistor and solder into the position shown. NOTE! Ensure the flat face on the component matches the flat face on the PCB silkscreen. You need to...
- Page 15 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Identify the following panel parts: ROTARY SWITCH x1 TOGGLE SWITCH x1 (LENGTH) (WRITE) Remove all washers and nuts from the red switch. Only use one nut and discard the rest.
- Page 16 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions If you want to fit the flat head LEDs so they fit flush to the panel then apply masking tape over the 10 LED holes in the front panel.
- Page 17 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Now with the panel holding everything correctly aligned finally Green Rotary switch – 7 solder solder all the pots, switches, jacks joints and LEDs. Red Toggle switch – 3 solder joints Double check all solder joints! There are 45 to do all at once.
- Page 18 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Next mate the two boards together as shown. Secure with two of the remaining M3 screws Now finally put the metal panel onto the top PCB and secure all the remaining nuts and washers.
- Page 19 TURING MACHINE Mk ii Eurorack DIY Kit Version 1.01 (APRIL 2016 ONWARDS) Instructions Attach the power cable like so with the red stripe down, at the end of the power connector indicated on the PCB with ‘RED’ You are now ready to power up and calibrate.
