Summary of Contents for JACLOC Desk Kiosk

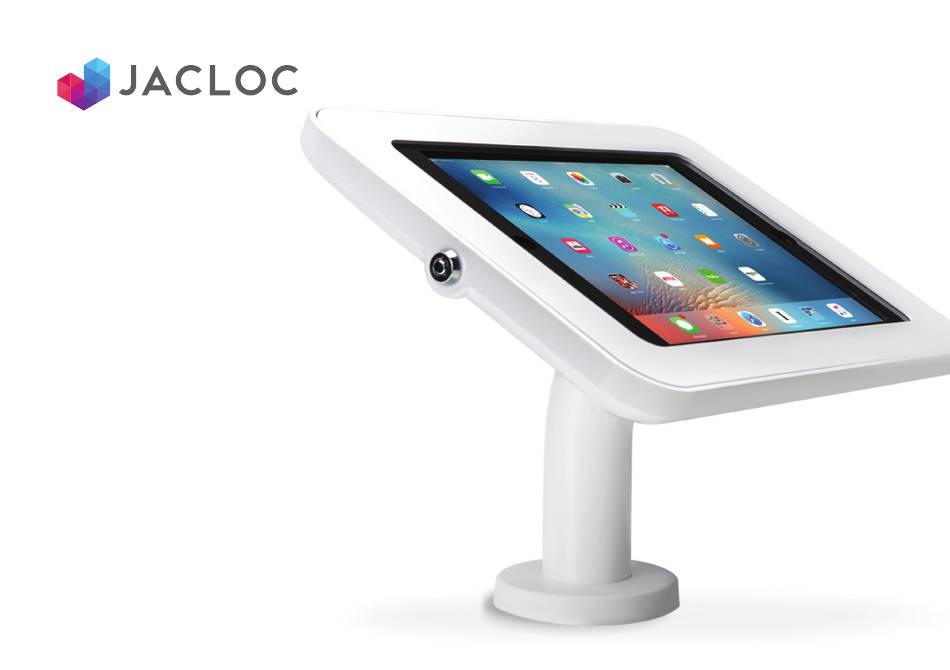

- Page 1 Desk Kiosk Install Guide...
- Page 2 T H E JA C L O C K I O S K S Y S T E M I S designed to improve user experience & increase engagement...
- Page 3 What’s in Recommended 60° Stem Flex Stem the box? Positioning 2x Keys 4x Bolts 1x Mounting Washer 30° Stem 45° Stem 90cm – 110 cm 75cm – 90 cm Fit Kit Stem Face Plate Access Cover Case Please Note: If you purchased any of our upgrade options, those additional parts are not listed above.
- Page 4 Charging Cable Mounting Options Options Up to 30 mm Above 30 mm Under Counter Surface Freestanding Option 1 Option 2 Requires drill holes and access Screw down into your surface to fix your No need to drill holes in your furniture. The charge cable can exit out the back of The charge cable can continue through beneath the mounting surface to...
- Page 5 LPS-90-W (WHITE) | LPS-90-B (BLACK) Switch Optional Upgrade: Fixed Stem Flex Stem Landscape to Portrait PLEASE NOTE: This is an optional upgrade. Please complete A and B below, then proceed to Step 2. If you have not purchased this option, please proceed to assemble your kiosk starting at Step 1 (right). Bolts Bolts Attach the Switch to...
- Page 6 Tablet Fit Kit Corner Pieces Positioning Pins Charge Lock Cable Lock Firmly insert each of the four Fit Kit rubber corner pieces into the case by aligning with the Positioning Pins. Connect the charge cable to the tablet, then insert your tablet into the Fit Kit corner pieces. It should sit neat and snug.
- Page 7 Key Lock Face Plate Fixing Hooks Access Tablet sits Cover on underneath Example: The last step is to lock-down the stainless steel Face Plate to secure and protect your tablet. First, position the First, peel the brown protective seal from one side of the Access Cover. Then insert the Access Cover over the top of your tablet with the black, shiny side facing up.
- Page 8 BOX INCLUSIONS MTB001-W (WHITE) | MTB001-B (BLACK) When the lock-pin stands out, it To secure your kiosk, push means your kiosk is open in the lock-pin 1x Base Plate 1x Base Cover 4x Screws 4x Bolts STEP 1 STEP 2 STEP 3 STEP 4 Connect the Base Plate...
- Page 9 BOX INCLUSIONS BOX INCLUSIONS MTB001-W (WHITE) | MTB001-B (BLACK) ROT-270-W (WHITE) | ROT-270-B (BLACK) Base Rotate 4x Bolts 4x Bolt Rods 4x Washers 4x Nuts 1x Mounting Washer 4x Bolts 4x Bolt Rods 4x Washers 4x Nuts 1x Mounting Washer STEP 1 STEP 2 STEP 3...
- Page 10 FSB001-W (WHITE) | FSB001-B (BLACK) Also available... For further information Base Freestanding 4x bolts Floor Kiosks & support From $295 Email sales@jacloc.com.au Wall Kiosks Phone 1800 077 375 From $158 Distribution Centre 34 Thompson Street, Bowen Hills, QLD 4006 STEP 1 STEP 2 Connect the Base Freestanding to the Stem using the Complete.
- Page 11 Enjoy your Jacloc Kiosk www.jacloc.com.au...
