Sliding Clam Heat Press Manual
Model No: UHP-15/20MS
Contents
1.

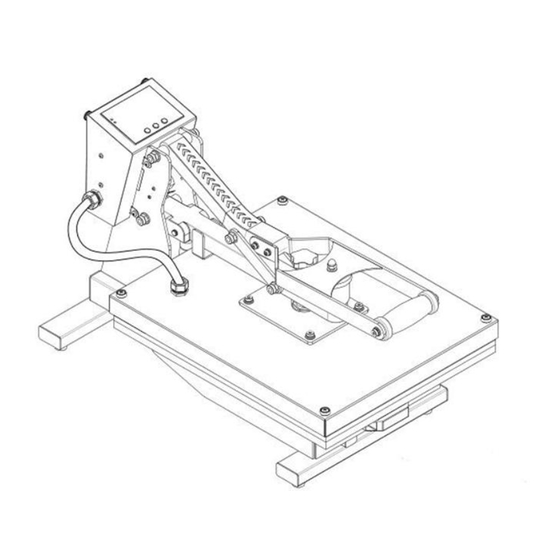

Assembly Drawing .......................................................................................................................................................... 2
2. Technical Parameters ......................................................................................................................................................... 3
3. Operating Process .............................................................................................................................................................. 3
2.
Set temperature required ............................................................................................................................................ 3
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHP-15MS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Microtek UHP-15MS

  • Page 1 Sliding Clam Heat Press Manual Model No: UHP-15/20MS Contents Assembly Drawing ................................2 2. Technical Parameters ................................. 3 3. Operating Process ................................3 Set temperature required ............................3 Page 1 of 9...

  • Page 2: Table Of Contents

    Set time required ................................. 4 Printing Methods ................................4 Recommendations ................................5 NOTE: ....................................5 Maintenance ..................................6 Troubleshooting for transfer print quality ........................7 8. Circuit Diagram ................................... 7 9. Explosion View ................................... 8 1. Assembly Drawing Page 2 of 9...

  • Page 3: Technical Parameters

    2. Technical Parameters 1. Model No.: UHP-15/20MS 2. Machine Dimensions: 706*410*433mm 3. Heat Platen Size: 38x38cm/ 40x50cm 4. Printable Articles Max Size: 400*500*10mm 5. Voltage: 220V/1 Phase; 120V/1 Phase 6. Power: 220V/1.8KW 7. Recommend Setting: 30~280s; 180~210℃ . Time Range: 0~999s Maximum Temp: 225°C 3.

  • Page 4: Set Time Required

    3. Set time required If there is a difference between the Press button after the Press button after time setting; actual temperature and temperature the display shows the temperature temperature setting and the starts to rise. “CD-L” shows the time shows on the controller, you can time light is ON.

  • Page 5: Recommendations

    Step 5: Time is counting down; once time is up, the buzzer will send out a sound again, then open up the heat platen (meantime the sounds stop). Step 6: Work finish and take out the object. If you want to print on another object, place the object on press bed and confirm the TIME and TEMPERATURE set as last time, then repeat above process.

  • Page 6: Maintenance

    6. Maintenance No action after turning on the machine 1). Check the plug whether it connects properly or whether it is broken. 2). Check the power switch or temp. & time controller whether it is broken. 3). Check the fuse whether it has been burnt out. 4).

  • Page 7: Troubleshooting For Transfer Print Quality

    7. Troubleshooting for transfer print quality 1. If the print colour is pale: the temperature is too low / the pressure is not correct / or not pressed long enough. 2. If the print colour is too brown or the transfer paper is almost burnt: reduce the temperature setting. 2.

  • Page 8: Explosion View

    Power Switch FU:Fuse Transformer :Heating Pipe SJ: Digital Controller R1:Relay 9. Explosion View Page 8 of 9...
  • Page 9 Microtech User Manual 2018...
