Summary of Contents for Mazi CA-101
- Page 1 CA-101 K EYBOARD ANUAL...
- Page 2 CA-101 Keyboard User Manual V1.0 Thanks a lot for purchasing our product. If there is any question, please feel free to contact us. This manual may have something inaccurate in technology, unsuited with the product’s functions and operations or the misprints.
- Page 3 Conteúdo Main Features ................................... 3 Control ..................................3 Control protocol ................................3 Divided control by host and auxiliary keyboard ......................3 Features and functions ..............................3 Install Introduction ................................3...
-
Page 4: Main Features

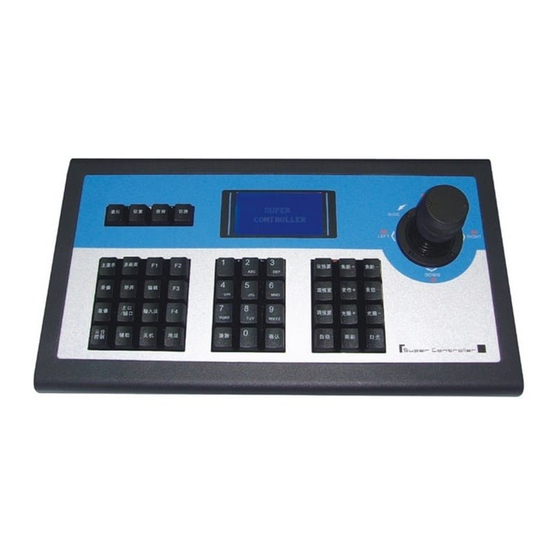

Main Features CA-101 keyboard is compatible with all of our company’s full series embedded DVRs. These keyboards can control speed dome and PTZ either directly, or through the DVRs. Also they can control DVRs as well. Control Completely replace the all functions of DVR front panel. Any operation is indicated in LCD display. - Page 5 Host keyboard connects auxiliary keyboard for PTZ control. Power input DC-12V Host keyboard pin8 (Ra) connects auxiliary keyboard pin10 (Ta), and host keyboard pin7 (Rb) connects auxiliary keyboard pin9 (Tb). Then auxiliary keyboard can Control PTZ. CA-101 front panel introduction...
- Page 6 Key button functions introduction Function introduction Button name back to up-level menu hold for 3 seconds, enter into keyboard configuration state (default password: 8888) Setup press 1 second, check keyboard configuration: PTZ protocol Search switch the control mode of embedded DVR or speed dome Shift show the main menu MENU...
-
Page 7: Keyboard Configuration And Query
Joystick control introduction function introduction operation In PTZ control mode: control the movement of pan/tilt In DVR control mode: play record file fast In PTZ control mode: control the pan/tilt to move upon down In DVR control mode: play record file slowly In PTZ control mode: control pan/tilt to move left left In DVR control mode: control record file backward... -
Page 8: Configuration Illustration
Configuration illustration Here is a example to illustrate how to set dome: change the communication protocol of dome 002 to PELCO-D, and change the baud rate to 4800. 1. In the mode of standby (fig a), hold the “Setup” button for 3 seconds, login the main menu (fig b); 2. -
Page 9: Typical Wiring Diagram
Typical wiring diagram Control speed dome... - Page 10 Control DVR...
-
Page 11: Technical Specification
Technical Specification Supported DVR number Supported PTZ number Control mode RS-485 half-duplex mode Baud rate: 1200 ~ 19200bps Communication interface RS-485 port LCD screen 128mm*64mm Joystick Maximum cable length 1200m Power supply DC 12V -10℃-- +55℃ Working temperature Working humidity 10%--90% Size 360mm*200mm*108mm... - Page 12 IVV A ISTRIBUÍDO PELA UTOMAÇÃO GERAL...
