DDMALL HE-20 User Manual

Hdmi extender over cat5e/ cat6
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

®
DDMALL

User Manual

HDMI Extender Over CAT5e/ CAT6
Model: HE-20
 Transmission distance up to 262ft (80m).
 Supports resolutions up to 1920×1080p@60Hz.
 HDCP compliant.
 HDMI 1.4 compatible.
 EDID management.
 No separate HDMI cables needed.
 Small in size and light in weight.
 Lower power consumption, longer life.
 Simply plug and play, no software required.
Website: www.ddmalltech.com
Email: support@ddmalltech.com
User Manual
1
DDMALL HE-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE-20 and is the answer not in the manual?

Questions and answers

Related Manuals for DDMALL HE-20

Summary of Contents for DDMALL HE-20

  • Page 1: User Manual

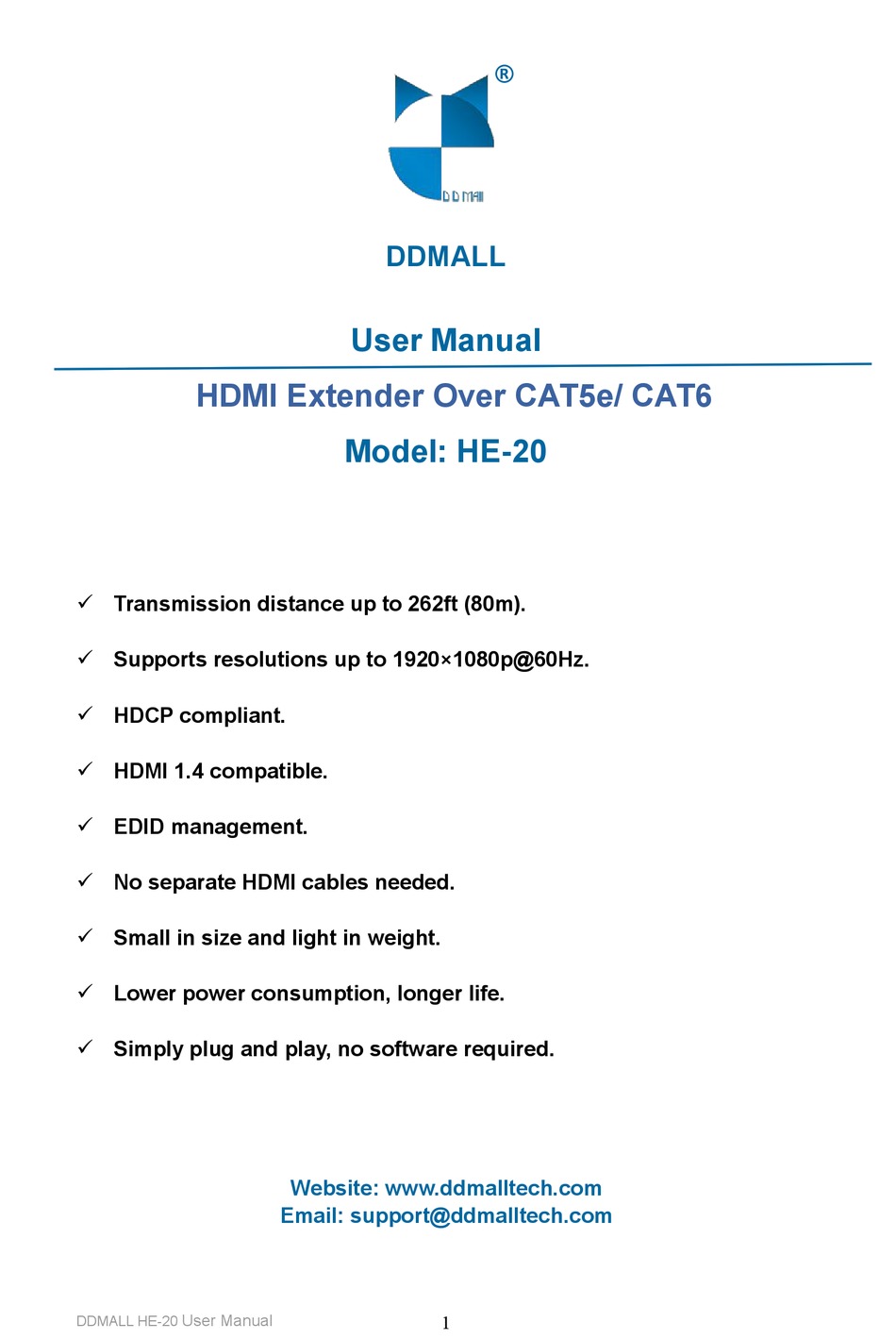

    ® DDMALL User Manual HDMI Extender Over CAT5e/ CAT6 Model: HE-20  Transmission distance up to 262ft (80m).  Supports resolutions up to 1920×1080p@60Hz.  HDCP compliant.  HDMI 1.4 compatible.  EDID management.  No separate HDMI cables needed.
  • Page 2 Introduction The HE-20 provides long haul transmission of HDMI signal up to 262ft (80m) over one CAT6/CAT5e (or better) cable, while maintaining signal strength and super audio and video quality. Supports resolutions up to 1920×1080p@60Hz.

  • Page 3: Package Contents

    If the signal does not appear on the display, please power on both the transmitter and receiver for optimal performance. Please note that transmission distance will be different due to the  environment. Please do not plug in/out when it is working.  DDMALL HE-20 User Manual...
  • Page 4 Indicator Light Status Green Light Yellow Light Flash Power Normal Transmit Non-HDCP Signal Keeps On Power Normal Transmit HDCP Signal DDMALL HE-20 User Manual...
