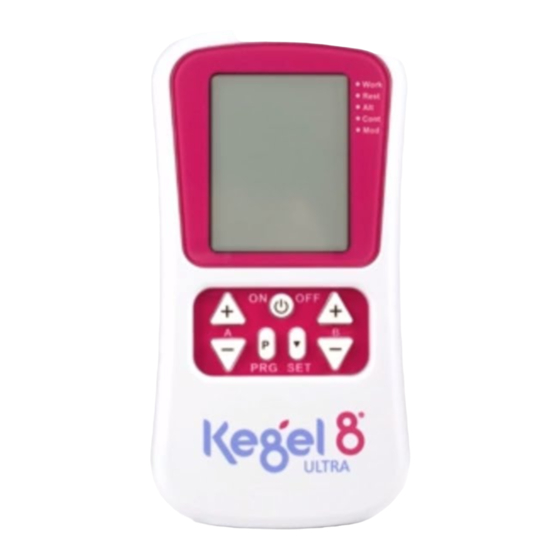

- Page 1 Kegel8 Ultra Operation Manual ®...
- Page 2 Kegel8 ® Ultra Operation Manual Symbols on the unit and case Caution! (electrical output). Follow operating instructions! Failure to do so could place the patient or operator at risk. afgafadf Neuromuscular Stimulation (STIM) and EMG Triggered Stimulation (ETS) should not be used by Patients fi tted with demand style cardiac pacemakers.
-
Page 3: Warnings
CE approved battery charger. Never connect the Kegel8 ® Ultra directly to a battery charger or to any other mains powered equipment. We advise not to use Ni-Cad rechargeable batteries. Patient Electrodes are for single patient use only. -
Page 4: Table Of Contents
Kegel8 ® Ultra Operation Manual Contents Contents Page Warnings What is STIM? Contra Indications & Precautions Description of STIM Unit & Functions Quick Start Instructions Setting up your Customized Programme Lock Button Continence Treatment Programmes Electrode Types & Tips Care, Maintenance, Accessories and Disposal Indications for use Specifi... -
Page 5: What Is Stim
The Kegel8 ® Ultra off ers precision giving full control of Pulse Widths, Rates, Ramp up times, Work / Rest cycles as well as alternating or synchronous application if two channels are being applied. -
Page 6: Contra Indications & Precautions
Kegel8 ® Ultra Operation Manual Contra Indications & Precautions Before using this equipment you must fi rst seek the advice of your Physiotherapist or Doctor. Read this operating manual before using the STIM unit. STIM should not be used: By patients fi tted with a demand style cardiac pacemakers unless so... -
Page 7: Description Of Stim Unit & Functions
Kegel8 ® Ultra Operation Manual Description of STIM Unit & Functions Connect Probe to Channel A Channel B Channel A or B Display Lead Wire and Pin Select Lock Programme Front Rear * PRG button Selects the desired set programme from P01 - P11 or customised programme PC1 - PC3. - Page 8 Kegel8 ® Ultra Operation Manual Example of preset programme: Frequency & Current phase / Lock pulse width of phase phase indicator symbol 3 Hz •Work •Rest 250 uS •Alt Phase mode •Cont Programme •Mod Total Number of phases 3 : 2...
-
Page 9: Quick Start Instructions
Kegel8 ® Ultra Operation Manual Quick Start Instructions Remove battery cover. Insert 1 x 9 volt PP3 battery or a rechargeable Nickel Metal Hydride battery into the battery compartment. Replace the cover. Insert the lead wire(s) into the sockets of the unit. Lead colour is not important. - Page 10 Kegel8 ® Ultra Operation Manual Hold down the A+ button until you feel a strong but comfortable current. The current may be decreased by pressing the A- button. 10. You may adjust the strength of the current during the treatment by press- ing the A+ or A- buttons.
-
Page 11: Setting Up Your Customized Programme
Kegel8 ® Ultra Operation Manual Setting up your Customized Programme First, if a programme is running, press the PRG button twice to return to the home screen. Refer to the example of custom programme diagram on page 7. Press the PRG button until PC1, PC2 or PC3 is selected. -
Page 12: Lock Button
Average millamps Average milliamps for CH.A CH.B A “concealed” lock button is included in the Kegel8 Ultra which allows the ® clinician to accurately monitor “Home Compliance” of the patent between appointments. It records the time in use and the average intensity (MA). It also locks the customised programmes, stopping them from being altered. -
Page 13: Continence Treatment Programmes
Kegel8 ® Ultra Operation Manual Continence Treatment Programmes Programme: P01 Pelvic Floor Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Pain Phase time Cont Mode Frequency work µS Pulse duration secs Ramp up time secs Ramp down time... - Page 14 Kegel8 ® Ultra Operation Manual Programme: P03 Stress Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Incontinence 1 Phase time Mode Frequency work µS Pulse duration secs Ramp up time secs Ramp down time secs Work time secs...
- Page 15 Kegel8 ® Ultra Operation Manual Programme: P05 Frequency Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 / Urge 1 Phase time Mode Frequency work µS Pulse duration secs Ramp up time secs Ramp down time secs Work time...
- Page 16 Kegel8 ® Ultra Operation Manual Programme: P07 Frequency Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 / Urge 3 Phase time Cont Mode Frequency work µS Pulse duration secs Ramp up time secs Ramp down time secs Work time...
- Page 17 Kegel8 ® Ultra Operation Manual Programme: P09 Pelvic Floor Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Work Out Phase time Mode Frequency work µS Pulse duration secs Ramp up time secs Ramp down time secs Work time...
- Page 18 Kegel8 ® Ultra Operation Manual Programme: P11 Relaxing the Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Pelvic Muscle Phase time Mode Frequency work µS Pulse duration secs Ramp up time secs Ramp down time secs Work time...
-
Page 19: Electrode Types & Tips
Kegel8 ® Ultra Operation Manual Electrodes Types and Tips Self-Adhesive reusable long-term electrodes (if looked after) have a typical life span of 4/6 weeks. We recommend cleaning the skin with an alcohol-based wipe before placing the electrodes. The wipe should not contain fat as any grease will degrade the electrode stickiness. -
Page 20: Care, Maintenance, Accessories And Disposal
Kegel8 ® Ultra Operation Manual Care, Maintenance, Accessories and Disposal WARNING! Only medically approved accessories should be used! CONTROL UNIT: Wipe the surface once a week with a damp cloth or antiseptic wipe or baby wipe. Do not use cleaning sprays or alcohol based cleaning solutions... -
Page 21: Indications For Use
Kegel8 ® Ultra Operation Manual Self-Adhesive Electrodes: Check the short connectors have not become separated from the electrodes Replace electrodes onto plastic fi lm after use. If they drop onto the fl oor debris will adhere to conductive gel rendering the electrodes ineff... -
Page 22: Specifi Cations
Kegel8 ® Ultra Operation Manual Specifi cations STIM Dual channel: individually isolated circuits. Amplitude: 0-90 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA. -
Page 23: Information Regarding Electromagnetic Compatibility And Interference (Emc)
Information regarding electromagnetic compatibility and interference (EMC) Kegel8® products are designed to produce very low levels of radio frequency (RF) emissions (interference), to be immune from eff ects of interference produced by other equipment operating in their vicinity and damage due to electrostatic discharge all when operating in a typical domestic and or clinical environment. - Page 24 Kegel8 ® Ultra Operation Manual...
- Page 25 Kegel8 ® Ultra Operation Manual...
-
Page 26: Troubleshooting
Kegel8 ® Ultra Operation Manual Troubleshooting If the programme cannot be changed - remove the battery cover and unlock the unit by pressing the unlock button - see page 6 and 11. If mA intensity cuts out above 8 milliamps and zero mA is fl ashing on LCD: 1. -
Page 27: Warranty
For assistance, if needed, in setting up, using or maintaining the unit, or report unexpected operation or events, please visit the distributor’s website for further details: www.kegel8.co.uk Distributed by: Savantini Ltd. Savantini House, Foster Street... -
Page 28: Clinical References
Kegel8 ® Ultra Operation Manual Clinical References Please contact us for any clinical referencies of Kegel8 ® enquiries@kegel8.com... - Page 29 Kegel8 ® Ultra Operation Manual Notes...
- Page 30 Kegel8 ® Ultra Operation Manual...
- Page 31 Kegel8 ® Ultra Operation Manual...
- Page 32 Kegel8 Ultra Operation Manual ® Not for sale or use in the USA Distributor: Savantini Ltd. Savantini House, Foster Street, Stoneferry Road, Hull HU8 8BT England Any queries should be addressed to: Helpline +44(0)1482 496 932 Call us! We’re here to help you Monday-Friday, 8am - 5pm.
