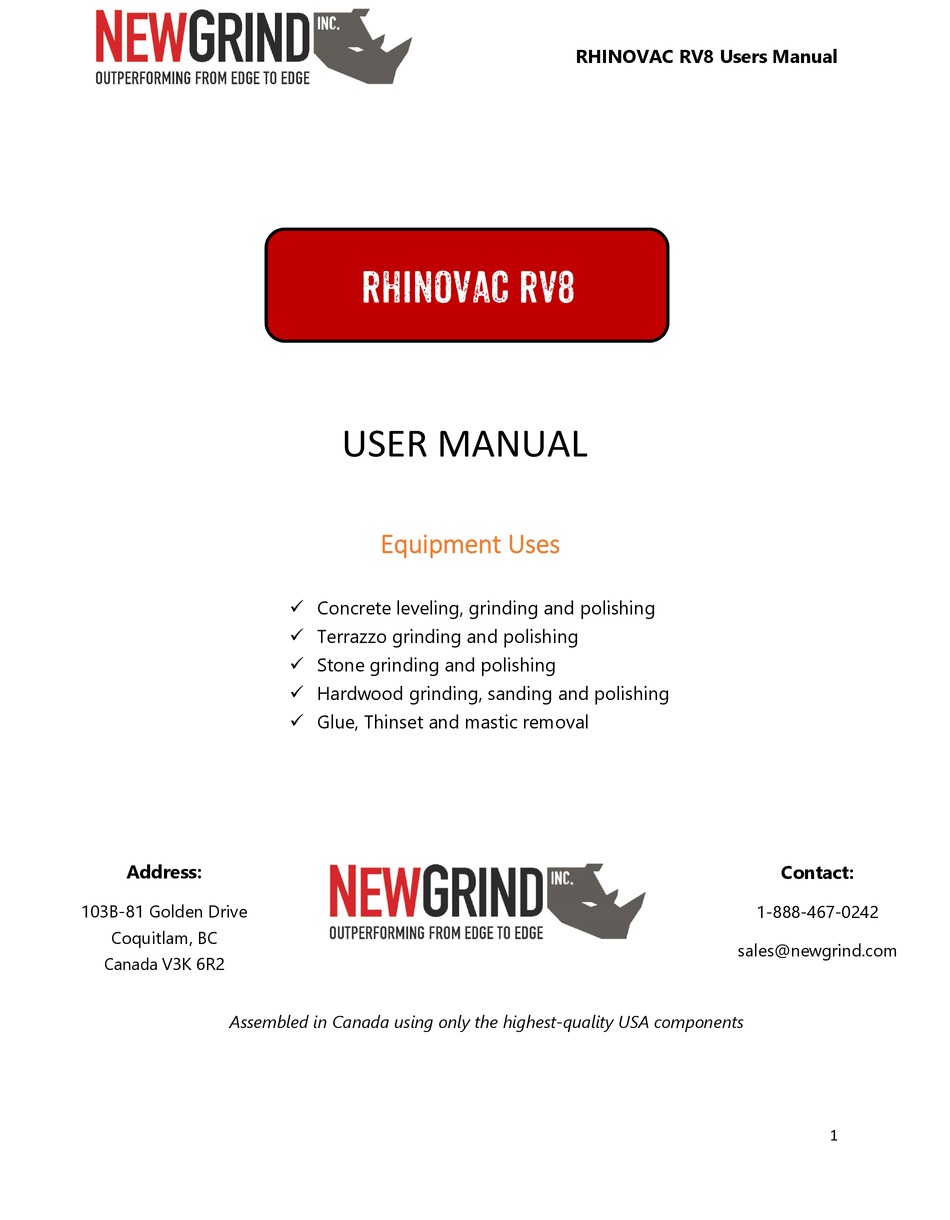

RHINOVAC RV8 Users Manual

RHINOVAC RV8

USER MANUAL

Equipment Uses

 Concrete leveling, grinding and polishing

 Terrazzo grinding and polishing

 Stone grinding and polishing

 Hardwood grinding, sanding and polishing

 Glue, Thinset and mastic removal

Address:

Contact:

103B-81 Golden Drive

1-888-467-0242

Coquitlam, BC

sales@newgrind.com

Canada V 3K 6R2

Assembled in Canada using only the highest-quality USA components

Table of Contents

Need help?

Do you have a question about the RHINOVAC RV8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Newgrind RHINOVAC RV8

Page 1: Equipment Uses
RHINOVAC RV8 Users Manual RHINOVAC RV8 USER MANUAL Equipment Uses  Concrete leveling, grinding and polishing  Terrazzo grinding and polishing  Stone grinding and polishing  Hardwood grinding, sanding and polishing  Glue, Thinset and mastic removal Address: Contact:...
Page 2: Table Of Contents
RHINOVAC RV8 Users Manual Table of Contents Equipment Uses..............................1 RHINOVAC RV8 Diagram ..........................4 Machine Specifications ............................ 5 Safety Instructions ............................5 Work Area Safety ............................5 Electrical Safety ............................. 5 Personal Safety ............................. 6 Equipment Safety and Care .......................... 6 Service Safety ..............................
Page 3 RHINOVAC RV8 Users Manual LIABILITY LIMITATIONS ............................14 TERMS & CONDITIONS ............................15 AGREEMENTS ..............................16...
Page 4: Rhinovac Rv8 Diagram
RHINOVAC RV8 Users Manual RHINOVAC RV8 Diagram 220V outlet Vacuum intake port Filter clean setting (on/off/clean) Variable speed control On/off switch Dry pickup only warning Serial number 110V AC GFI outlet Maximum fill line 8-gallon Lexan barrel Urethane wheels...
Page 5: Machine Specifications
RHINOVAC RV8 Users Manual Machine Specifications Power 220V/3 Phase Pass-through power outlet 220V Maximum watts draw ----- 110V GFI outlet Machine weight Variable speed control 8 Gallon Lexan Barrel Built-in pre separator .3-micron HEPA filter Vacuum port 2.5 inches Vibrating motor...
Page 6: Personal Safety
An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. For the RHINOVAC RV8 use 10-gauge cord or larger. Personal Safety 1. DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to equipment safety rules.
Page 7: Service Safety
RHINOVAC RV8 Users Manual 2. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing equipment. Such preventive safety measures reduce the risk of starting the equipment accidentally. 3. Maintain equipment with care. Keep tools and accessories in good condition. Properly maintained tools are less likely to fail.
Page 8: Filter
RHINOVAC RV8 Users Manual plug. Input power should be 208-230 Volt single or 3 phase Caution: exceeding voltage range will cause immediate damage to components For 3 phase use: • Always use the correct male plug to attach to power source. i.e. 30-amp 250-volt 3 phase twist lock •...
Page 9: Cyclone
RHINOVAC RV8 Users Manual 1. Release filter from carriage by loosening knobs at bottom or releasing quick release latches if so equipped. 2. Carefully lift filter out of carriage and place inside of a clean garbage bag. Fold top of bag into filter to prevent dust from entering the inside of filter 3.
Page 10: Dustbin
RHINOVAC RV8 Users Manual 3. Carefully hook out debris or rag using a small piece of wood or coat hanger. Do not force debris or bang cyclone, as damage may occur. 4. Once blockage has been removed re-install cyclone by reversing the above procedures.
Page 11: 1⁄4" Auxiliary Vac Port
RHINOVAC RV8 Users Manual • For large areas it is better to use a 50ft hose or join 2 25ft hoses together to allow for greater mobility. 1 1⁄4” Auxiliary Vac Port The RhinoVac has an auxiliary 1 1⁄4 “ vac port for attaching to a hand grinder or sander.
Page 12: Starting The Rv8
RHINOVAC RV8 Users Manual Starting the RV8 1. Turn the CFM control to max 2. Turn the power switch to the on position Adjusting the speed 1. Use the knob, located on the left side of the control box to adjust speed of equipment.
Page 13: Limited Equipment Warranty Of Sale
NewGrind Inc. will, at its option, repair or replace, at the NewGrind Inc. factory or at a point designated by NewGrind Inc. any part which shall appear to the satisfaction of NewGrind Inc.
Page 14: Force Majeure
RHINOVAC RV8 Users Manual the provisions of the above or any instructions or specifications provided with or for the product. FORCE MAJEURE Seller’s obligation hereunder are subject to, and Seller shall not be held responsible for, any delay or failure to make delivery of all or any part of the product due to labor difficulties, fires,...
Page 15 RHINOVAC RV8 Users Manual or not such loss or damage is based on contract, warranty, negligence, indemnity, strict liability, or otherwise. New Grind Inc. reserves the right to modify, alter and improve any part or parts without incurring any obligation to replace any part or parts previously sold without such modified, altered or improved part or parts.
Page 16 RHINOVAC RV8 Users Manual 4. DELIVERY, DAMAGES, SHORTAGES Seller shall use reasonable efforts to attempt to cause the Products to be delivered as provided for in these Terms & Conditions. Delivery to the initial common carrier shall constitute the delivery to the Purchaser. Sellers responsibility, in so far as transportation risks are concerned ceases upon the delivery of the Products in good condition to such carrier at the F.O.B.
