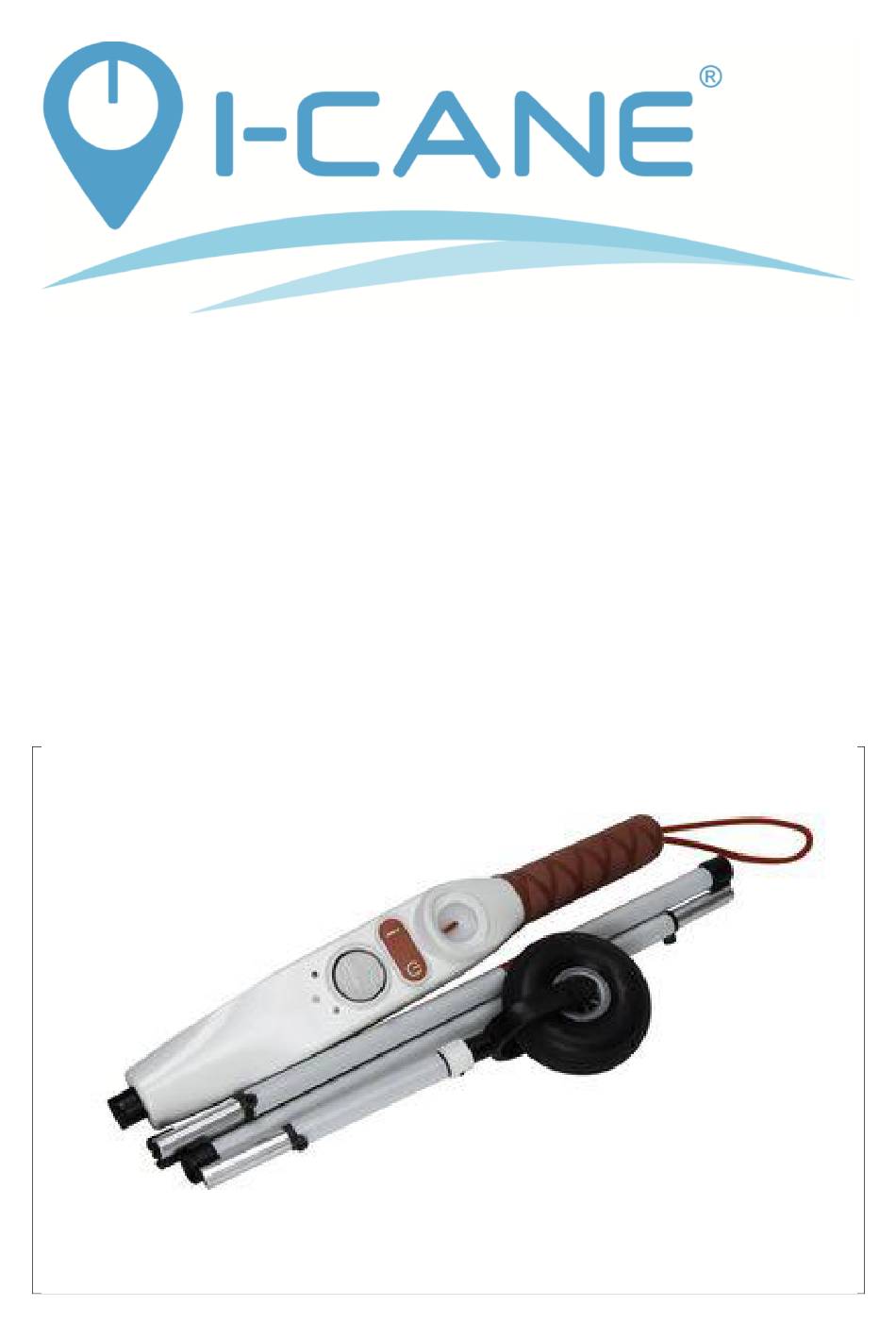

- Page 1 Manual I-Cane Mobilo® 2.1 folding cane...
- Page 2 THE I-CANE MOBILO® AND THE I-CANE GO® APP. A. Important We thank you for purchasing an I-Cane Mobilo® 2.1. If you treat the I-Cane Mobilo® carefully then you can use it trouble-free for years. Take the time to read this user manual carefully before using the I-Cane Mobilo® 2.1. Keep this manual for future reference.
- Page 3 As a user of an I-Cane Mobilo®, we strongly advise you to follow or have followed a training in the use of a touch cane as a mobility aid plus a training in the use of the I-Cane Mobilo® . These courses have been or will be provided by a mobility-instructor.
- Page 4 Always obey the traffic rules, and check traffic conditions before following the instructions from the sensor arrow or voice information. The I-Cane Mobilo® with a red belt can be used as a touch or recognition cane and can be recognized as such by the public and legislator.
- Page 5 I-Cane Mobilo® direction indicators . Always be aware that the use of route navigation and obstacle warning is not a guarantee of safety and that caution is also required when using the I-Cane Mobilo® and I-Cane Go® . Reuse and disposal Do not dispose the product with household waste.
- Page 6 During this training, the first routes are recorded with you . The instructor helps to install the navigation program on your smartphone and will explain it to you. Outside, the mobility instructor focuses on using the I-Cane Mobilo® as a tactile and recognition cane in combination with the obstacle warning, recording and using routes and applying the ' Where am I? ' position.
- Page 7 1.10 All movements of the tactile arrow are supported by audio signals in spoken and / or 'beep' form. 1.11 On the handle of the I-Cane Mobilo® , between the tactile arrow and the sensor, are two tactile push buttons. These are intended to switch the I- Cane Mobilo®...
- Page 8 LED gives white light when the Mobilo is switched on and goes out when the Mobilo is switched off. 1.13 The handle of the I-Cane Mobilo® 2.1. can be used in combination with a special folding cane with red band. Depending on the length of the user, this folding cane consists of 3 or 4 segments.
- Page 9 2. Preparing your I-Cane Mobilo® for use Take the I-Cane Mobilo® out of the package. You must first charge the I-Cane Mobilo® . You can do this by connecting the I-Cane Mobilo® to the power supply using the supplied magnetic USB charge cord.
- Page 10 Comfy Wheel® and slightly above the head. This feature makes it necessary for the cane user to hold the I-Cane Mobilo® in front of him and to avoid unintentionally swiping the cane around her axis.
- Page 11 Note: The obstacle warning is automatically switched on and off when the I- Cane Mobilo® is switched on / off . When using the I-Cane Go® navigation program , this function can also be switched on and off in the app . This is...
- Page 12 You will hear the welcome message ' Welcome to I-Cane Go® '. Please note that when you open the navigation program for the first time, you do not yet have the full functionality of the I-Cane Go® . The additional functions only become visible after your first connection to the I-Cane Mobilo®...
- Page 13 The 'where am I ? 'function can be performed with the right-hand button (i) on the I-Cane Mobilo® so that the smartphone can be stored safely . Press this button briefly, a double tone indicates that the function is being executed.
- Page 14 6. 'Include routes' function The I-Cane Go® offers the possibility to record your own routes and / or to have them used again later. The advantage of this is that you can always determine the most logical and most comfortable route for you.
- Page 15 6.19 Recording a walking route over a square without marked hiking trails is difficult if the user of the I-Cane Mobilo® depends on natural guide lines. The chance of deviating from the route is then large. In such a case, mark the route along the natural guide lines of the square.
- Page 16 enter a route name. Choose the name and insert it. It can be short or longer. It is important that the route name is clear to you. Press SAVE to record the route . 6.22 If you do not enter a route name and immediately choose SAVE, the route name will be provided with the start address and the destination address (street name + city name).
- Page 17 7. Linking the I-Cane Mobilo® with the I-Cane Go® (App) Before the I-Cane Mobilo® can carry out instructions from the I-Cane Go®, a one-time connection should be carried out between the handle and the I-Cane Go® (App). Please follow the next procedure: Switch on the I-Cane Mobilo®...
- Page 18 9. Use routes from the route list For the time being , only pre- recorded routes can be used . On the home page, choose START ROUTE. Select the route you want to walk from the route list and wait for the message that the GPS signal is sufficient to start.
- Page 19 9.11 Arriving at the decision point (intersection / split) the definitive indication of the tactile arrow follows, supported by a spoken message about the direction to be followed. For left turn the tactile arrow turns left and stays there for a bit. To the right, the tactile arrow turns to the right and stays there for a bit.
- Page 20 number increases as you go to far and decreases as you approach your final destination again. Deviating from the route (off route) 10.1 If you deviate from the route, you will hear audible and tactile instructions to go back ('go back') to the point where the planned route was abandoned. The tactile arrow turns 3 times to the left quickly and returns slowly .
- Page 21 Restore the connection by reconnecting the handle with the navigation program , see chapter 7. 12.2 Program ( App ) does start. Switch your smartphone off completely and start it again as also I-Cane Go® app. 12.3 GPS reception insufficient to record route or to start .
