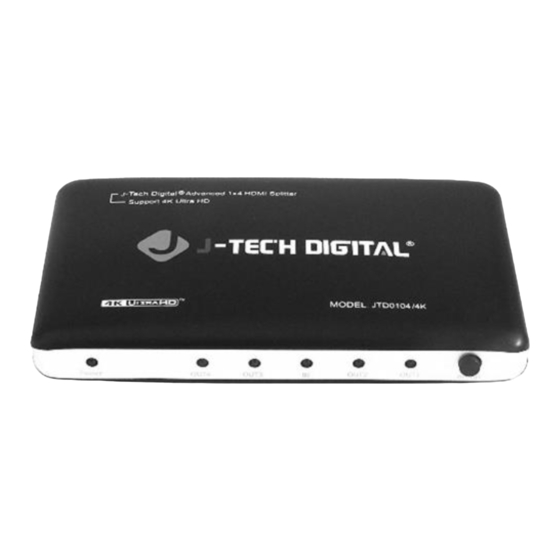

- Page 1 1-888-610-2818 support@jtechdigital.com USER MANUAL J-Tech Digital 4K@30Hz HDMI 1x4 Splitter Model JTD0104/4K JTD-101...
- Page 2 4K 30Hz HDMI 1X4 SPLITTER User Manual V1.5...
- Page 3 Introduction The JTD0104/4K routes one HDMI input signal to four HDMI displays. This 1x4 HDMI splitter supports 4K @ 30Hz, 3D and HDCP 1.4 content. With its 3Gbps bandwidth and the additional features of the latest HDMI standards, you can be sure the JTD0104/4K will work...
- Page 4 Supports display resolutions up to 4K@30Hz,1080P@120Hz,and 1080P 3D@60Hz Supports deep color 30bit, 36bit, 48bit per pixel Supports digital audio formats DTS-HD/Dolby-True HD/LPCM 7.1/DTS/Dolby-AC3/DSD III. Package Contents JTD0104/4K HDMI Splitter ------------------------------------------------------- 1PC 5V1A DC Power adapter ---------------------------------------------------------- 1PC User Manual ------------------------------------------------------------------------ 1PC...
- Page 5 IV. Specifications Frequency Bandwidth 2.97 Gbps HDMI Splitter Input Ports 1 x HDMI Female Input Port HDMI Splitter Output Ports 4 x HDMI Female Output Ports Power Supply DC 5V 1A ± 8kV (air-gap discharge) ESD Protection Human Body Model ±...
- Page 6 V. Operation Controls and Functions Front Panel POWER LED: This blue LED illuminates when the device is connected to the power supply INPUT LED: This blue LED illuminates when the HDMI source signal is detected OUTPUT LED: These blue LEDs illuminate when a display device is detected ON/OFF: Power on/off splitter...
- Page 7 Rear Panel 5V: Plug the provided 5V DC power supply into this port and connect the adaptor to AC wall outlet HDMI OUTPUT: Connect your HDMI displays to Out1 – Out4 ports via HDMI cable HDMI INPUT: Connect your HDMI source device to the HDMI Input port via HDMI cable...
- Page 8 VI. Application Example...
- Page 9 - Specifications, pictures & software described herein are subject to change without prior notification. - Only use the provided power supply when operating this unit. J-Tech Digital® is not responsible for any damage due to customer neglect. - All trademarks are the sole property of their respective companies.
