Summary of Contents for Multibor Podolog

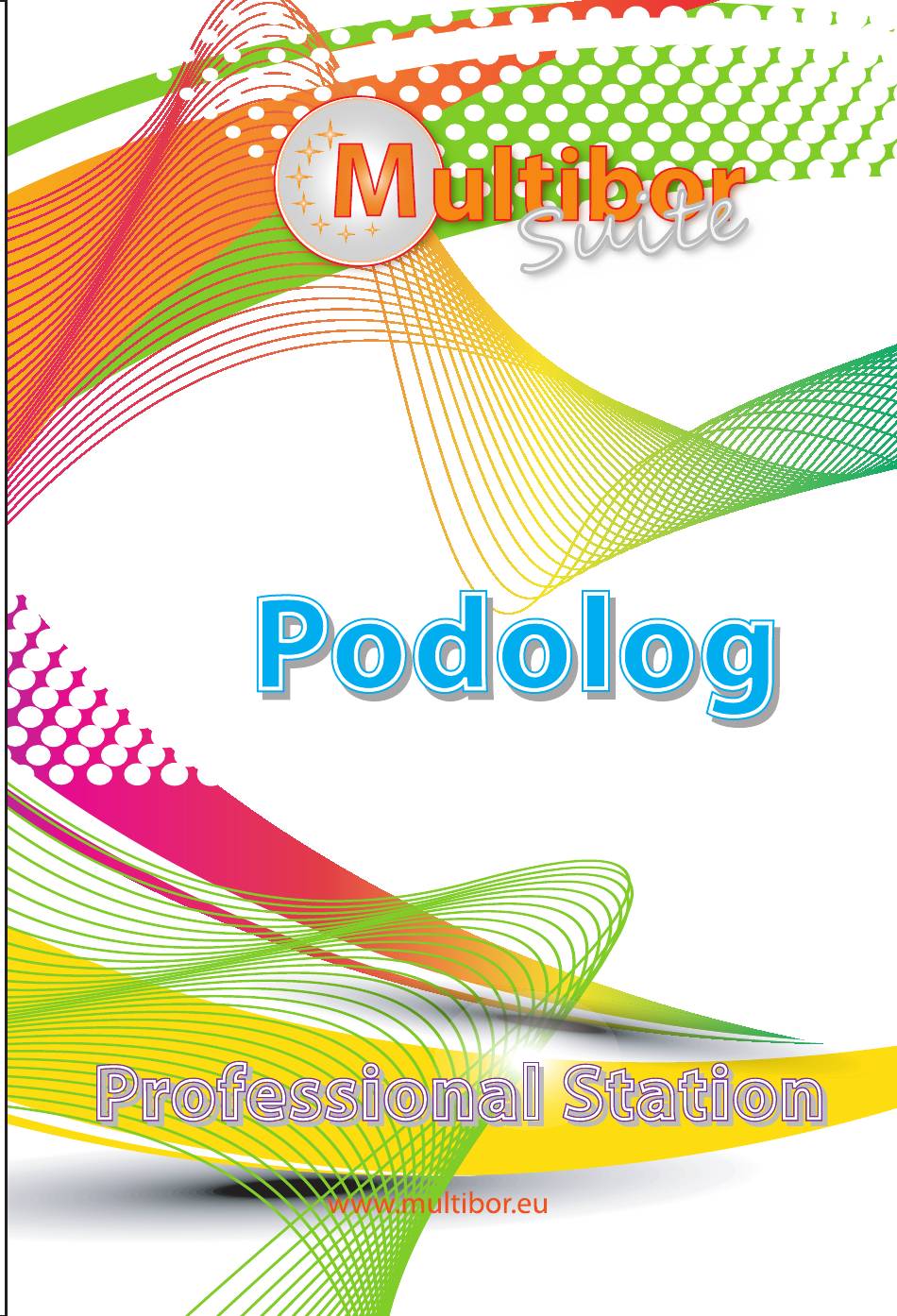

Page 1
Professional Station Professional Station Professional Station...
Page 2
Please note the following: The progrms for “MULTIBOR Pedicure Bits” and program for the “Pedicure” are di erent. If you work with replaceable sand caps based on rubber or with sintered cersmics, please select the “Pedicure” only. If you try to activate the “MULTIBOR Pedicure Bits”,...
Page 3
Should you have any questions regarding the use of the device or should you put the device into such modes of operation where from you don't know the way out, please contact the Service Center. Service Center www.multibor.eu...
Page 4
Multibor – Podolog MAX These models have di erent technical properties and con gurations. Multibor — Podolog Suite is a milling cutter for masters of nail care (hereinafter, the 'Milling Cutter'). This is a microprocessor unit with separate programs for di erent types of operations and for di erent types of tools with automatic selection of preset programs and with digital adjustment for optimal mode of operation.
Delivery Set Power unit Handheld milling cutter (micromotor) Micromotor pad Pedal (available in speci c models) User Guide Packaging Safety Precautions In order to ensure safe operation of the Milling Cutter, please learn the safety precautions speci ed in this User Guide. Do not try to use the Milling Cutter is a manner not speci ed in this document.
Page 6
ATTENTION! Disregarding these safety precautions may damage the Milling Cutter or may result in its ignition or in electric shock for you. ATTENTION! Plug the Milling Cutter in the electric mains thru standard three-pin sockets with grounded terminals only. Nine Simple Rules: Never use electric mains where voltage and frequency are di erent from the parameters speci ed on the casing of the Milling Cutter.
Page 7
Make sure there is some free space around the wall socket, so that you can quickly unplug the device if necessary. In the event of smoke, unusual fumes or strange noise near the Milling Cutter, switch it o immediately, unplug it and refer to the Service Center. Do not place any items onto the power unit.
Page 8
- increase or decrease the rotation speed - change the rotational direction: 'Reverse' function - select a control program from the list Thru the 'Multibor Magic Button' (hereinafter, the 'M-button'), it is possible to: - activate the program control mode...
Page 9
The light warning system comprises the Display and the range with 12 light emission diodes (LED Range) (like a clock face) located around the Manipulator. The light warning system is further assisted by the audible warning system. Handheld Milling Cutter The handheld milling cutter has the shape of a monoblock unit.
Page 10
The shank end of a tool must be set into the clamp deeply until locked. Another manner of tool setting leads to vibration, to accelerated wear of the clamp and of the handheld milling cutter, and to damage to the tool. Such operation of the Milling Cutter along with the usage of unbalanced tools (vibration while operating the handheld milling cutter) results in the loss of the warranty rights for the user.
Page 11
Changing the tools in the MAX con gurations 1. Switch o the tool rotation 2. Wait until the tool rotation stops completely 3. Use your hands to turn the upper part (orange color) into the "A" direction over 2 clicks. One click is not enough since this is an intermediate position 4.
Preparing for work 1. Unpack the Milling Cutter. If the device is brought from a cold place to a warmer place, it should be unpacked not earlier than after two hours. 2. Place the power unit onto a plain, rigid, and stable surface such as a working desk.
1. The 'MULTIBOR' sign at the upper lid of the casing is illuminated with constant blue light 2. No breakdown alarm is heard...
Page 14
Such signal may be caused by mechanical or electrical faults in the pedal itself as well as in its power cable or control circuit. For example: 1. Foreign items are on the pedal when it is powered up 2. The contacts in the pedal have stuck together and thus always remain in the short-circuit position.
Page 15
Modes of Operation Indications and Alarms in Di erent Modes The handheld milling cutter can operate in two equivalent modes: Manual mode Program mode For each of the modes, each type of indication is shown at the display by means of a relevant combination of characters, digits, and segments, and is also backed up by speci c audible signals In any mode, prior to switching on the tool rotation, its direction is shown by an arrow on the Display.
Manual Mode Switching between the manual and program modes is performed by pressing the 'M-button' and is followed by an audible signal. Switching between the modes is only possible when the tool rotation is o . In the Manual mode, the display shows only two or three digits, which mean the tool rotation speed in thousands of revolutions per minute (rpm).
Page 17
1. To switch on the rotation, press the center of the Manipulator once 2. To increase the rpm rate, rotate the Manipulator clockwise 3. To decrease the rpm rate, rotate the Manipulator counterclockwise 4. To alter the rotational direction (the reverse function), press the center of the Manipulator twice at a run same as you double-click on a computer mouse 5.
Page 18
Program Control Mode "Programs" Press the 'M-button' to select operation modes under the preset programs. While in the 'Programs' mode, the display shows a character to indicate a speci c program and a digit to indicate the program's number. Program H6 Program P7 “Reverse”...
Page 19
The additional opportunities of Multibor-Suite It is only the MULTIBOR Suite Podolog device family that has two control channels and two connections for two engines, which can be controlled in turns. This feature would for instance be useful for chiropodists.
Page 20
Multibor - Power Control Processor technology The power control processor precisely controls the correlation of the selected rpm rate with the output power required to perform a speci c procedure or a type of work. When the nail care master presses the tool rmer to the surface being treated, the Milling Cutter does not stop and does not decrease the preset rpm rate;...
Page 21
Emergency Protection In order to preclude incorrect steps and to protect the equipment from damage, the Milling Cutter has an emergency protection system. When the emergency protection system is activated, an audible signal is heard and an error message is shown at the display. The 'Overload' indication means that the tool applied is being used at a speed or with a power rating not allowed for...
The 'Open Collet' signal means that there has been an attempt to switch on the rotation without a tool or with an open collet clamp. In order to deactivate the 'Open Collet' emergency mode, the following must be done: 1. Switch o the rotation 2.
Page 23
Display Name Operation 1. Stop the operation power unit 2. Unplug the milling cutter malfunction 3. Contact the Service Center 1. Remove the foreign items from the surface of the pedal Pedal is out 2. Disconnect the pedal from of order the power unit and continue working without the pedal 1.
