- Page 1 USER MANUAL FOR THE GLOBEX STAIRCLIMBER “GECE - E CHAIR” CERTIFICATED GLOBEX OPERATOR TRAINING MUST BE PROVIDED BEFORE USE...
- Page 2 User Manual for Globex Stairclimber Brief Introduction The Globex Stairclimber meets ISO 7176-28:2012 standard and is powered by a lithium-ion battery and driven by motor it can transport mobility impaired persons up and down stairs easily. Specifications Telescopic gripping frame height: H108cm, H127cm, H146cm and H164cm - Chair size: 108*52.1*103cm...
- Page 3 User Manual for Globex Stairclimber Dimension Diagram 1030 520.80...

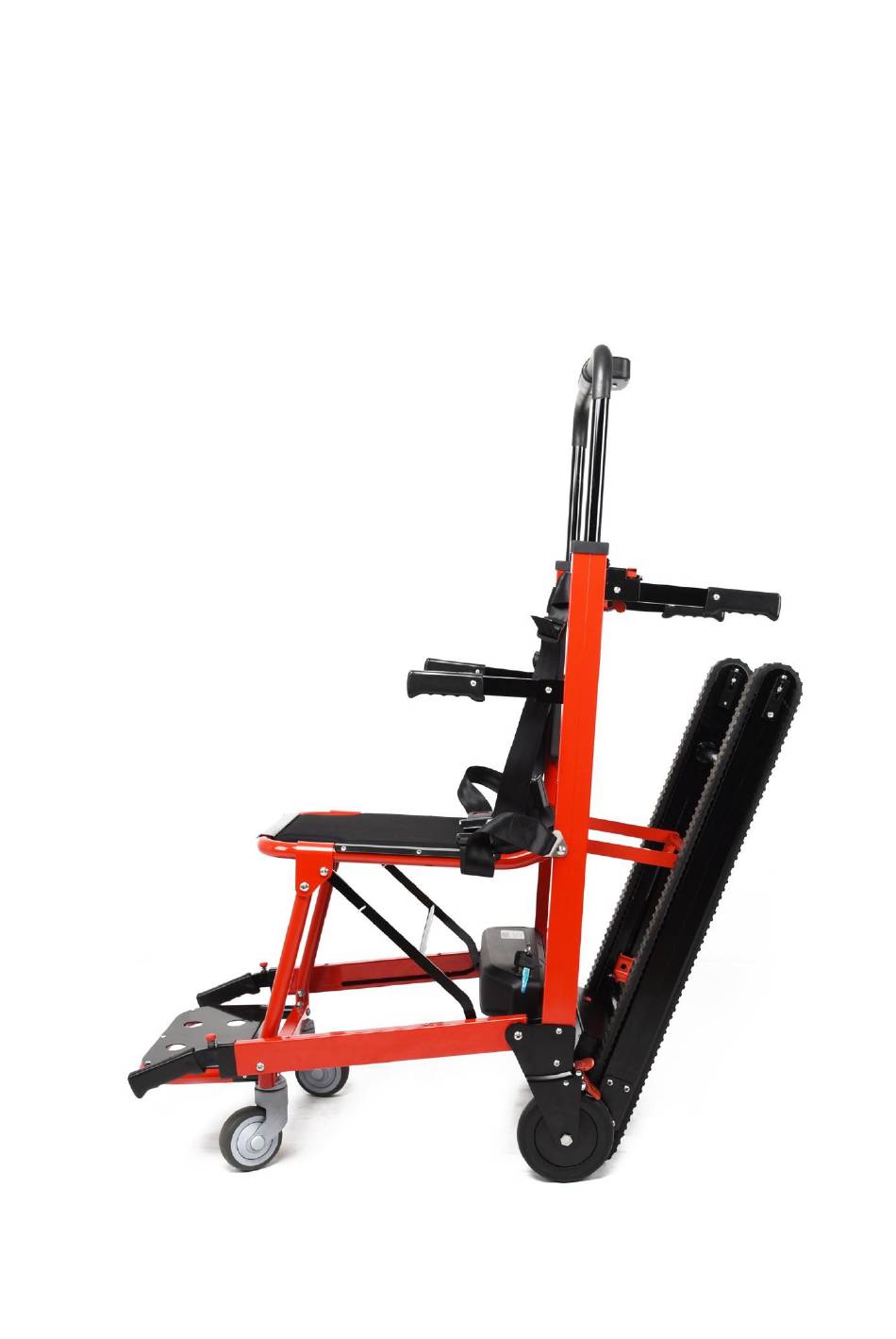

- Page 4 User Manual for Globex Stairclimber Components Adjustable & removable headrest Button for front handles Front handles Battery Safety belt Keys Support bracket Track belt Foot rest Rear carrying handles Telescopic front handles Button for rear carrying handles...
- Page 5 User Manual for Globex Stairclimber Motor protection cover Control panel Brake Red bar for locking handle Rear wheels Top bar for leaning chair backward Brake release pedal Red bar for restoring track belts Front wheels Red pedal for opening track...
- Page 6 User Manual for Globex Stairclimber Battery Charging The battery charger should be tested portable appliance tested prior to use and as required thereafter in accordance with local guidance. Battery technical details can be found on the battery Connect the DC power adapter to the battery charging port （connect the other end...
- Page 7 User Manual for Globex Stairclimber Installation The slot on the inner side of the battery must align with the guide rail，Push the battery along the guide rail arrow direction until it clicks in to place. Turn the key clockwise 180° to lock the battery onto the chair.
- Page 8 User Manual for Globex Stairclimber Preparing to use the STAIRCLIMBER Deployment Open the pedal as shown Open the chair as shown Open the armrests as shown...
- Page 9 User Manual for Globex Stairclimber Deploying the carry handles Open the rear handles as shown if required until they lock in to position Expand the telescopic front lifting handles: Press the red button and pull the handles in the direction of the arrow until they lock into...
- Page 10 User Manual for Globex Stairclimber Closing Fold the armrests: Fold the armrests up as shown Grip the seat by one hand and the frame with the other, depress the foldaway support bracket then after the bracket is out of the locking position fold up the seat.
- Page 11 User Manual for Globex Stairclimber Fold lifting handles: Press locks and fold the handles down Fold the front lifting handles: Press the red button and push the handles into the frame Storing the the track belts: Depress the red bar downwards...
- Page 12 User Manual for Globex Stairclimber Adjust Telescopic Grip Frame When chair stands deployed, keep telescopic frame at the lowest position When going upstairs or downstairs, the operator must adjust the height of the telescopic grip frame close to the operator's shoulders height.
- Page 13 User Manual for Globex Stairclimber Headrest And Safety Belt Headrest: Adjust and fix the headrest to suitable height with strap according to the passenger's height. Safety belt: After the passenger is seated, adjust safety belt and fix it as shown if required.
- Page 14 User Manual for Globex Stairclimber Brakes Before folding the chair, you should press the brake pedal. Lock: Press the brake pedal Release: Press to unlock. Control Panel DOWN POWER LIGHTS As shown, from left to right: go downstairs, power, lighting, go upstairs.
- Page 15 User Manual for Globex Stairclimber Power-On Turn on the battery switch as shown Press the POWER button, the display LED is on, and remaining of the battery is displayed. Power-Off Press the POWER button, the battery monitor background lights off.
- Page 16 User Manual for Globex Stairclimber Climbing Upstairs Deploy STAIRCLIMBER as shown, be sure the battery is switched on, adjust the telescopic gripping frame to suitable height. Adjust the distance (30- 40cm) between the rear castors and the staircase slowly tilt the handle back until the track belt lean on the stair steps as shown.
- Page 17 User Manual for Globex Stairclimber When all the wheels reach the staircase landing, release the UP button, grip the handle and slowly lean forward to make four wheels stand on the ground. Grip the rear lifting handles push STAIRCLIMBER to...
- Page 18 User Manual for Globex Stairclimber Descending stairs Deploy STAIRCLIMBER as shown; make sure that the battery switch is on, adjust the telescopic frame to suitable height. Push STAIRCLIMBER to staircase, adjust the chair and make the track belts at the middle of the staircase.
- Page 19 User Manual for Globex Stairclimber If need to pause or stop, release DOWN button. Note: when the track belts cover one or two steps, press the handle downwards a little to avoid STAIRCLIMBER leaning forward. When the track belts reach the floor at the...
