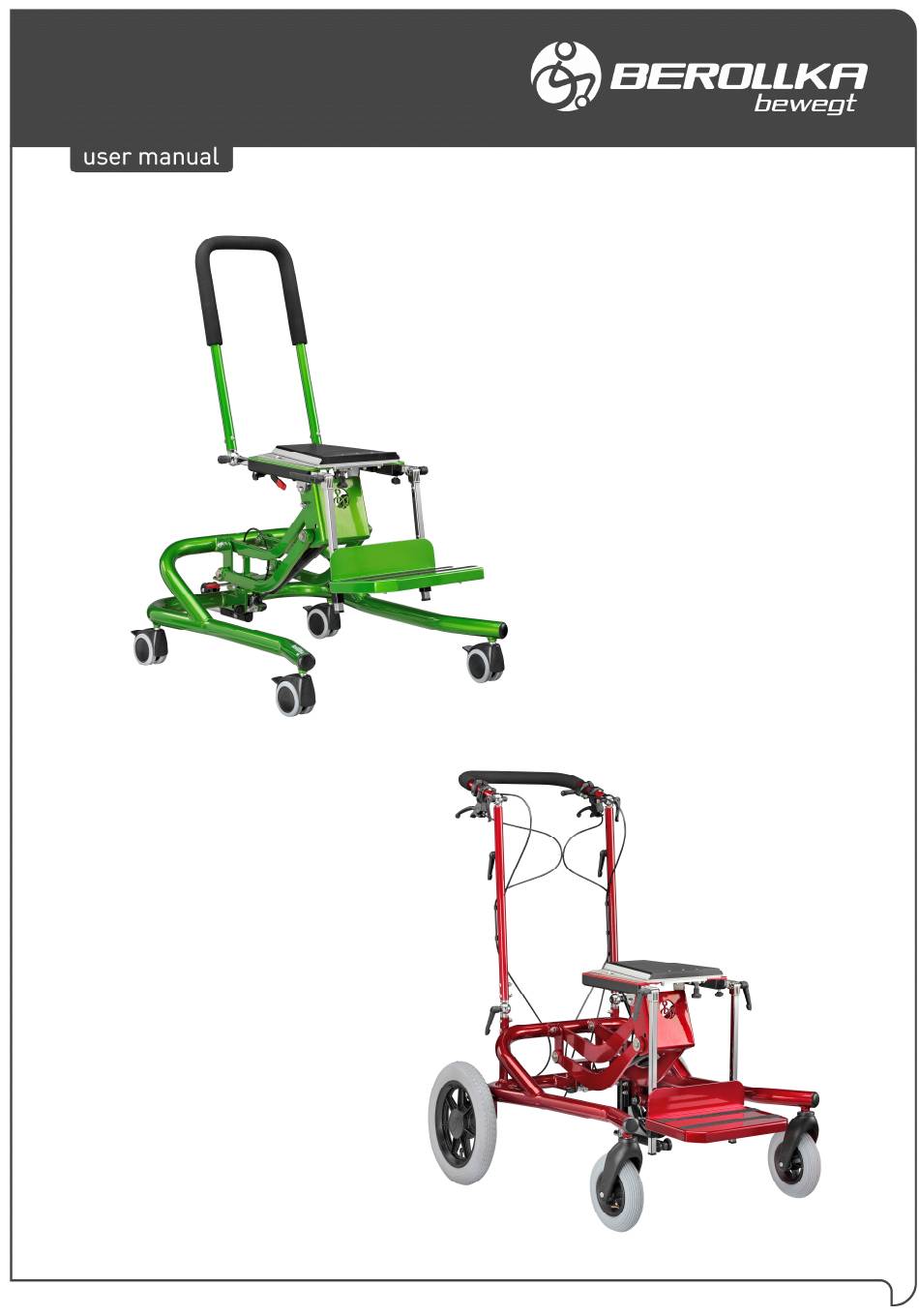

- Page 1 FLIP unbeatable at inner area FLOH the quick-change artist for everyday life Status 03/2014...
- Page 2 EC Declaration of Conformity We, Berollka-aktiv Rollstuhltechnik GmbH Jahnstraße 16 – 74889 Sinsheim, declare in sole responsibility, to conform to the mobility base from Berollka the fundamental request subject to the regulations 93/42/EWG. Yours Berollka-aktiv Team Status: March 2014 Technical changes and literal mistakes are reserved.
-
Page 3: Table Of Contents
Contents Contents page Overview of Flip / Floh General Security Advices Application area / Handling at delivery Adjustabilities Seat attachment (trapezium adapter) Seat incline Seat height Castors / Brakes Equipment Push handles Antitip wheel Mounting the seating system Technical information Care and Maintenance... -
Page 4: Overview Of Flip / Floh
Overview Overview of the mobility base FLIP HB The indoor mobility base FLIP HB is only used for the attachment of seating shells and seating systems indoor. It helps disabled people in mobility and transport. The below-mentioned illustration presents the indication of the most important elements at the mobility base, as well as the definitions, which you will find by reading the manual. - Page 5 Overview Overview of the mobility base FLOH HB The mobility base FLOH HB is only used for the attachment of seating shells and seating systems indoor as well as outdoor. It helps disabled people in mobility and transport. The below-mentioned illustration presents the indication of the most important elements at the mobility base, as well as the definitions, which you will find by reading the manual.
-
Page 6: General Security Advices
Maximum strength ( = seating system + patient + equipment) : Floh HB / Flip HB max. 60 kg Do not use the footrest for boarding and deboarding Your specialist dealer can give you further information. He will also show you the... -
Page 7: Application Area / Handling At Delivery
Take your expert´s help to learn safe using for yourself and your companion. EC Declaration of Conformity We, Berollka-aktiv Rollstuhltechnik GmbH Jahnstraße 16 – 74889 Sinsheim, declare in sole responsibility, to conform to the mobility base FLIP HB and FLOH HB the fundamental request subject to the regulations 93/42/EWG. -
Page 8: Adjustabilities
Adjustabilities Adjustability The mobility bases FLIP and FLOH are constructed modularly like in a construction kit that you can upgrade some equipment. We want to show you some adjustabilities and equipment which facilitate the use with your mobility base. Seat attachment There are different systems available to attach seating shells from different producer. -
Page 9: Seat Incline
Adjustabilities Seat incline You can incline the seat at your mobility base up to 30° backwards and 8° forwards. Please pay attention that the knee angle brake is locked during the adjustment and that the mobility base is standing at a flat ground. Please note: Do the first incline without the patient in the seating shell because the balance point is changing during the incline. -
Page 10: Seat Height
Adjustabilities Seat height The seat height is also adjustable with a gas spring. Please check that the mobility base is standing secure and the brakes are locked. Please note: The first seat height adjustment you should do without the patient inside. Adjust the seat height: The seat height adjustment occurs stepwise. -
Page 11: Castors / Brakes
Castors / Brakes Mobility base FLIP HB: The 4 castors at the mobility base FLIP HB are all equipped with knee angle brakes. Double rolls 75mm To close the brakes press the brake lever and to open them please pull at the brake lever with the foot. -
Page 12: Equipment
Equipment Push handles Mobility base FLIP: The push handle can be mounted additional. Your companion can thus obtain the most comfortable pushing position of his hands. For that the push handles will be inserted backwards into the seat frame and clamped with clamp lever screws. Please note: Do not carry the mobility base at the push handles!! Mobility base FLOH:... -
Page 13: Antitip Wheel
Equipment The handle bow at the back tube is 10 cm height adjustable with 2 clamp levers at the back tube. In addition, the handle bow is individual angle adjustable with joints. Please note: Always tighten the clamp lever! Antitip wheel At the mobility base FLIP and FLOH can be mounted an antitip wheel for safety reasons. -
Page 14: Mounting The Seating System
Mounting the seating system Mounting the seating system If you use a foreign seating system or changing adapter please consider the additional user manuals from the producer. Check of the statical stability After the mounting of the seating system please check the stability of the hole device. (mobility base + seating system + patient)!!!! Attention: As the check must be undertaken with the patient inside pay attention at the check and only... -
Page 15: Technical Information
Technical information Technical information FLIP HB Maximal user weight 60 kg Empty weight without equipment 16 kg tyres frontside / backside Ø 75 mm / Ø 75 mm frontside / backside Ø 125 mm / Ø 125 mm Brake type... -
Page 16: Care And Maintenance
Care and Maintenance Care and Maintenance The care responsibility of the medical aid or therapy equipment is the responsibility of the property owner or the owner of the product. Non-observance of the nursing or the nursing interval referred to the time schedule of the manual of the product causes loss of warrant. Furthermore, the non-observance of the nursing can tends to result in damage of the function or security of the user and/or the nurse. - Page 17 Care and Maintenance We recommend letting your mobility base check from a specialist dealer regularly dependable on the capacity factor, however at least one time a year. Time interval Description First day Read the manual careful before use of the product and keep it for future use Stow the tools at the product Daily...
-
Page 18: Further Use
Further Use Further Use For the further use of our mobility bases we recommend an examination of the product by an accepted specialist dealer. The following measures must be satisfied: • Thorough cleaning and disinfection with appropriate means • Maintenance according to the maintenance plan and review by the manufacturer or authorized specialist •... - Page 19 Check the tilt safety device Documentation Name-plate (Serial-Number) available User manual available (download is possible at www.berollka.de) Generally, the specialist dealer has to check the condition concerning security and if necessary the appropriate parts have to be replaced.
-
Page 20: Additional Information
Furthermore, deficits are eliminated, which occur because of natural defects, excessive use, damage by force as well as because of not designated use. The warranty expires if no original spare parts from Berollka-aktiv will be used for repair. Because of the constant... -
Page 21: Identification Plate
Additional information Identification Plate The identification plate is located visibly on the tube of your cross-link. Identification plate FLIP Identification plate FLOH On the identification plate, there you can find the accurate type designation, the serial number and the maximal user weight ( 60kg). If you want to reorder equipment or spare parts, please always specify the serial number (and perhaps the order number) to guarantee the processing of your order without any difficulty. - Page 22 Please retighten tem once in a while or your dealer. instruct Rollstuhltechnik GmbH Jahnstraße 16 74889 Sinsheim Germany telephone 0049 - 7261 – 7351 - 0 telefax 0049 - 7261 – 7351-10 www.berollka.de...
- Page 23 Notes...
- Page 24 Rollstuhltechnik GmbH Jahnstraße 16 74889 Sinsheim Germany telephone 0049 - 7261 – 7351 - 0 telefax 0049 - 7261 – 7351-10 www.berollka.de...
