Sunlounger Timer ST100 User Manual page 5

Mounting
1. Depending on the type of chair and mattress, you might need to drill 4 holes
to mount the unit*.

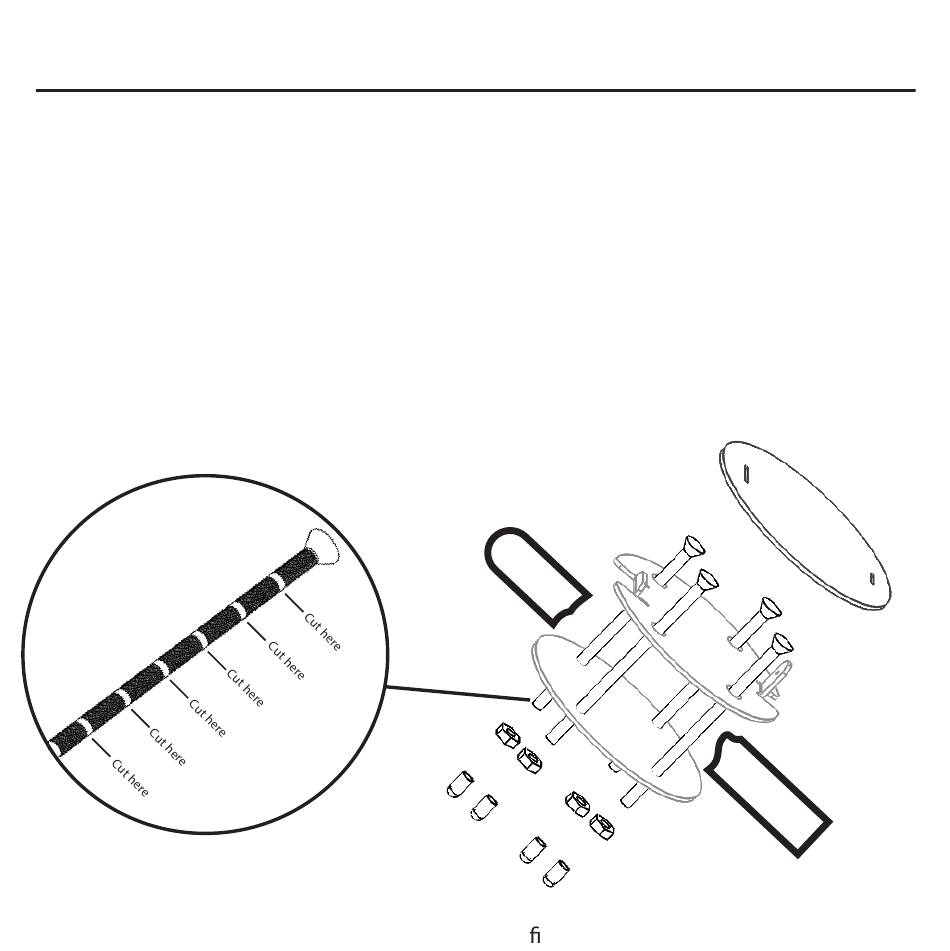

2. Place the "adapter plate" on the front, "mounting plate" on the back and get
the "bolts" through.
3. Cut the lenght of the bolts if needed. Cut only bolts where there is no thread!
4. Tight it all together by using the nuts and cover with bolt caps.
5. Add the "Rubber seal" on top of the "adapter plate".
6 cutting areas on the bolt
*Warning: mounting the device as described is the responsibility of the user.
Sunlounger Timer is NOT responsible for the modi cations made on the chair/bed/mattress
Chair
