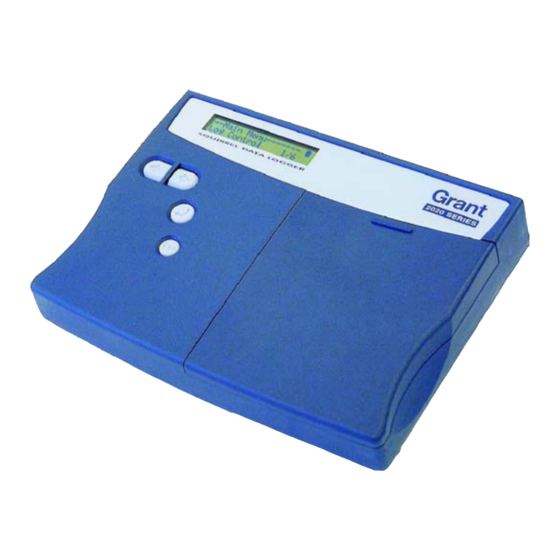

Grant Datalogging Squirrel 2040 Series Quick Start Manual

Hide thumbs

Advertisement

Quick Links

D A T A L O G G I N G
Squirrel Data Logger
2020/2040 SERIES
Quick Start

Advertisement

loading
Need help?

Need help?

Do you have a question about the Squirrel 2040 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Grant Datalogging Squirrel 2040 Series

  • Page 1 D A T A L O G G I N G Squirrel Data Logger 2020/2040 SERIES Quick Start...

  • Page 2: Hardware Checklist

    1. Hardware Checklist 2020/2040 Logger x 1 CD containing software x 1 (SQA100) 2020/2040 SERIES Quick Start manual (this booklet) x 1 USB Cable x 1 (LC77) Mounting bracket/stand for logger x 1 (WB6) Batteries, 6 x AA Current shunt resistors, 10R x 4 (CS202) Connectors: 6 way x 4 (18097), 4 way x 1 (13975), 3 way x 1 (14174), with cable ties Note: 2040 Logger is supplied with an extra 4 x 6 way...

  • Page 3: Table Of Contents

    Contents Hardware Checklist. General Information. Menu and Navigation. Getting Started. Connections. Specifications. After reading this Quick Start, please refer to SquirrelView Help for further details on your logger and how to use it with SquirrelView. Version 2 -July 2004 18108 Page 3...

  • Page 4: General Information

    2. General Information Installing the batteries The 2020/2040 uses six AA size alkaline batteries located under the removable cover shown below. To insert new or change the existing batteries: 1. Open the battery cover by pushing down and sliding as shown. 2.

  • Page 5: Menu And Navigation

    3. Menu and Navigation Control panel The illustration below shows the navigation controls in more detail. LEFT RIGHT NAVIGATION NAVIGATION ENTER/ CONFIRM & POWER ON KEY ESCAPE KEY (reverts to previous menu) To use the 2020/2040 control panel press , the opening display will be --Main Menu----- shown (see right).
  • Page 6 Control panel menu Detailed below is a basic explanation of the top menu structure. For more information on the whole menu structure please refer to the Help/Help Content - Loggers within SquirrelView. 3.3.1 Log Control In this menu you can Arm (activate) or Disarm (deactivate) the logger.

  • Page 7: Getting Started

    4. Getting started Quick Start example After installing SquirrelView an example setfile will be installed within the SquirrelView installation directory. The example file will log the internal temperature of the logger. In order to familiarise yourself with the logger the novice user may find this example Setup useful.
  • Page 8 Running Quick Start Demo In the SquirrelView Assistant, double click on Browse. .or select File - Open from Logger setup to open a setfile Or select the quick start demo file appropriate to your logger type. The Logger Setup screen is now visible, from here you will...
  • Page 9 Click If you to send pause or wish to setup to stop the meter logger logging the input Click for and start process click the in Real SquirrelView logging. Let the unit Logger Control Time click this Assistant. log for a few icon.
  • Page 10 In this screen you can now download the Data file and invoke the Export Wizard or download the Datafile via Analysis* DATE SECONDS The datafile is given a unique name (e.g. 28162735.D20). An 28162735 .D20 explanation of the file name is TIME(24HR) shown on the right.

  • Page 11: Connections

    5. Connections I/O SOCKET Wiring information ALARM EVENT/STATE PIN 1 I/P 1-8 Aux. Output Max 500mA SLOW PULSE FAST PULSE I/P 1-2 I/P 1-2 Version 2 - July 2004 18108 Page 11...
  • Page 12 Analogue Inputs (I/P) BLOCK BLO K BLOCK Rear view of ANALOGUE connectors BLOCK BLO K BLOCK BLOCK BLO K Rear view of NOTE: Blocks G TO K are only ANALOGUE available on 2040 loggers. connectors BLOCK BLO K FOR ANALOGUE INPUT CONNECTIONS REFER TO SquirrelView/ Logger Setup/Sensor Type.

  • Page 13: Specifications

    6. Specifications ANALOGUE INPUTS Basic accuracy: (5-45°C) . .± (0.05% readings + 0.025% range) + 0.025% range) Common mode rej ction: . Common mode rej ction: . .100dB .100dB Input impe ance: . Input impe ance: . .> 1MOHM .> 1MOHM Linearity: .
  • Page 14 POWER SUPPLY Internal:. .6* x AA Alkaline batteries External: . .10-18VDC Reverse polarity and over-voltage protected * Maximum operating temperature for AA alkaline batteries is 50°C POWER CONSUMPTION @ 9V Sleep mode: . .<600µA Logging: . .40 - 80mA DIMENSIONS AND WEIGHT 2020 Logger Dimensions: .
  • Page 15 Declaration of Conformity GRANT INSTRUMENTS (CAMBRIDGE) LTD, Manufacturer: Shepreth, Cambridgeshire SG8 6GB Equipment Name/Type Number: 2020/2040 Description of Equipment: Squirrel 2020/2040 Data Logger Directives: EMC Directive 89/336/EEC Including Accessories: MPU 12V Universal power supply LC71 RS232 serial lead LC77 USB lead This product complies with the requirements of the above Directive(s) EN 61326-1:1998 (+A1/A2) Applied Standards:...
  • Page 16 Grant Instruments (Cambridge) Ltd Shepreth, Cambridgeshire SG8 6GB Tel: +44 (0)1763 260811 www.grant.co.uk loggersales@grant.co.uk Fax: +44 (0)1763 262410 Printed in England - Squirrel/2020/2040-18108/UK...

This manual is also suitable for:

Squirrel 2020 series
