Summary of Contents for Hyco Ellipse Series

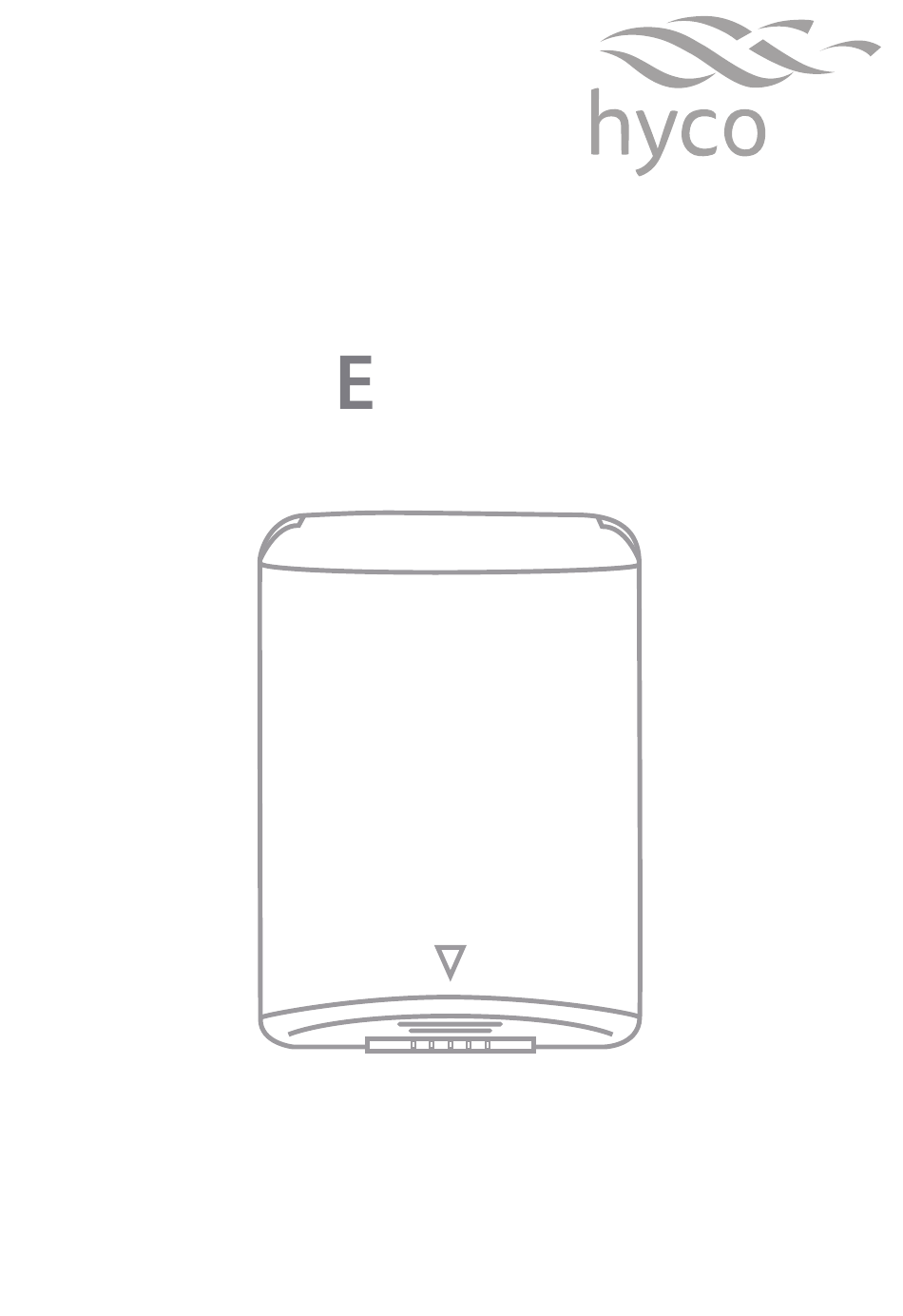

- Page 1 Product Instruction Manual llipse ELLW (white) & ELLBSS (brushed stainless steel) 1.55 kW automatic hand dryer Version 3.2 Jan 2015 v17,10,4...
- Page 2 Thank you for purchasing a Hyco Ellipse hand dryer. Please ensure you read and understand these instructions to ensure safe installation and operation. The Ellipse is a high speed, automatic hand dryer that offers a stylish and versatile option. This energy efficient hand dryer combines high performance quality with sleek design and will compliment a variety of washroom applications.
- Page 3 2. Installation Wall Mounting Always ensure no concealed electrical wiring or pipework prior to drilling into the surface. • A template is supplied for the positioning of holes for wall mounting. Attach the template to the final mounting position, mark and drill the holes. Insert the four supplied wall plugs into the holes.
- Page 4 3. Operation • Shake excess water from hands. • To activate the hand dryer, place your hands underneath the air outlet and the dryer will operate. • Move hands slowly back and forth under the dryer, turning over as required, until they are dry.
- Page 5 4. Maintenance Periodic cleaning of the unit is recommended to ensure optimum performance. • Disconnect the electrical supply. • Remove the two cover-mounting screws. • Remove the cover. • Clean all dust lint from the interior of the dryer. • Clean the exterior of the unit using a soft, damp cloth. Do not soak; never use abrasives to clean the cover.
-
Page 6: Specifications
5. Specifications ELLW ELLBSS Voltage/Frequency 230AC/50Hz 230AC/50Hz Power 1550w 1550w IP Rating Finish White Brushed stainless steel Weight 5.8kg 5.8kg 287mm 205mm 180mm... - Page 7 7. Guarantee and service policy This product is covered by a standard parts or replacement warranty for a period of three years from the date of purchase. If there is a manufacturing defect within the warranty period we will send spare parts, repair and return the unit or, at our discretion, supply a replacement product.
- Page 8 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
