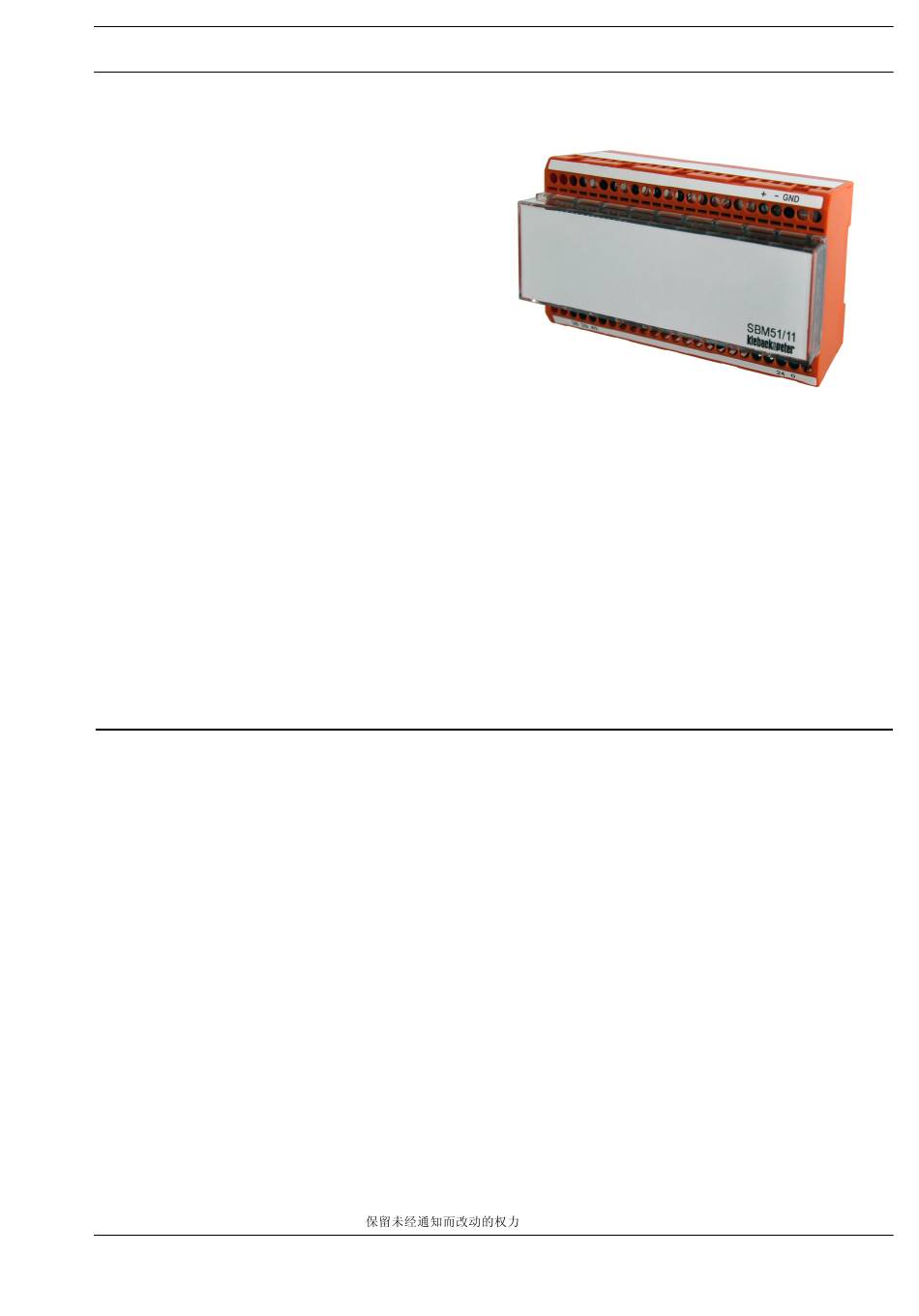

Product Description
SBM51/11 Switch cabinet bus module
for energy monitoring devices A210/A220 and
A230/A230s with communication module EMMOD
201 from the company Camille Bauer
Application
The switch cabinet bus module SBM51/11 is used to
integrate up to 8 energy monitoring devices into the
DDC3000 or DDC4000 system via Modbus RTU.
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Dimensions ..........................................................................................................................................................3
Connection...........................................................................................................................................................4
Mounting ................................................................................................................................................................5
Removal.................................................................................................................................................................5
Commissioning ......................................................................................................................................................6
Indicators and Controls........................................................................................................................................6
Setting the switch cabinet bus address ...............................................................................................................7
Description of Parameters .....................................................................................................................................8
Parameter List in the DDC3000 System..............................................................................................................8
Parameter List in the DDC4000 System..............................................................................................................8
Assignment of Software Menus / System Objects to the Energy Monitoring Devices.........................................9
Parameter Settings for the Energy Monitoring Devices.......................................................................................9
Points Lists ........................................................................................................................................................11
Reference Lists for Parameters according to Connection Type ........................................................................15
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Zmeny vyhradené - Změny vyhrazeny - Zmiany zastrzeżone - Возможны
изменения - A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
Datasheet 2.50-40.151-11-EN
SBM51/11
Page
A
Advertisement
Table of Contents
Summary of Contents for Kieback&Peter SBM51/11
-
Page 1: Table Of Contents
A210/A220 and A230/A230s with communication module EMMOD 201 from the company Camille Bauer Application The switch cabinet bus module SBM51/11 is used to integrate up to 8 energy monitoring devices into the DDC3000 or DDC4000 system via Modbus RTU. Content Page Important Information Regarding Product Safety ....................2... -
Page 2: Important Information Regarding Product Safety
Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "SBM51/11". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer. -
Page 3: Item
Issue 2014-11-19 Datasheet 2.50-40.151-11-EN Product Description SBM51/11 Item SBM51/11 Switch cabinet bus module with Modbus input for a maximum of 8 energy monitoring devices Technical Data Nominal voltage ■ For device: AC 24 V ±10% / 230 mA, max. 5.4 VA... -
Page 4: Connection
Datasheet 2.50-40.151-11-EN Issue 2014-11-19 SBM51/11 Product Description Connection WARNING Contact with live parts of electrical domestic installation can cause death due to electric shock. Only connect the device and switch on the power supply if you are qualified to do so. Be sure to comply with VDE guidelines and local wiring regulations. -
Page 5: Mounting
0.8 mm. Use a stranded pair of leads for the data lines (+ and -). The maximum cable length for the Modbus is 1000 m. The SBM51/11 uses the following interface parameters: ■ Baud rate: 9600 baud ■... -
Page 6: Commissioning
Rotary switch for setting the switch cabinet bus address Switch cabinet bus LED Signal Meaning Switch cabinet bus LED Green SBM51/11 is operating Switch cabinet bus LED Flashing green Data transmission Switch cabinet bus LED Switch cabinet bus error Switch cabinet bus LED... -
Page 7: Setting The Switch Cabinet Bus Address
Datasheet 2.50-40.151-11-EN Product Description SBM51/11 Setting the switch cabinet bus address ► Disconnect the power supply of the SBM51/11. ► Press the lower edge of the front cover and remove the cover. The rotary switches for setting the switch cabinet bus address are located inside the SBM51/11. -
Page 8: Description Of Parameters
"1" The SBM51/11 reads the energy monitoring devices every minute. ■ NOTE When you change the value from "0" to "1", the SBM51/11 immediately reads all energy monitoring devices on Modbus. You can use this function to trigger a readout of all energy monitoring devices on Modbus. -
Page 9: Assignment Of Software Menus / System Objects To The Energy Monitoring Devices
Issue 2014-11-19 Datasheet 2.50-40.151-11-EN Product Description SBM51/11 Assignment of Software Menus / System Objects to the Energy Monitoring Devices DDC3000 DDC4000 Energy moni- Phase Software menu System object toring device M090 SBM 51 "H000" H000.01 H000.02 H000.03 Totals menu H000.04 H000.05... - Page 10 Datasheet 2.50-40.151-11-EN Issue 2014-11-19 SBM51/11 Product Description Parameter 2251 (totals menu) - Connection type Parameter 2251 shows the connection type. Possible values and their meaning are listed here: ■ "0" - Single phase system ■ "1" - Three-wire three-phase system, balanced load ■...
-
Page 11: Points Lists
Issue 2014-11-19 Datasheet 2.50-40.151-11-EN Product Description SBM51/11 Points Lists Phase menu L1 DDC3000: M090 SBM51 Gateway DDC4000: CD_SB51 Parameter Parameter plain text Parameters provided Unit name Operating mode L1 2209 External building com- Participant is logged in plex malfunction 2210... - Page 12 Datasheet 2.50-40.151-11-EN Issue 2014-11-19 SBM51/11 Product Description Phase menu L2 DDC3000: M090 SBM51 Gateway DDC4000: CD_SB51 Parameter Parameter plain text Parameters provided Unit name Operating mode L2 2209 External building com- Participant is logged in plex malfunction 2210 Analog actual value 1 Delta voltage U23...
- Page 13 Issue 2014-11-19 Datasheet 2.50-40.151-11-EN Product Description SBM51/11 Phase menu L3 DDC3000: M090 SBM51 Gateway DDC4000: CD_SB51 Parameter Parameter plain text Parameters provided Unit name Operating mode L3 2209 External building com- Participant is logged in plex malfunction 2210 Analog actual value 1 Delta voltage U31...
- Page 14 Datasheet 2.50-40.151-11-EN Issue 2014-11-19 SBM51/11 Product Description Parameter Parameter plain text Parameters provided Unit name Operating mode L1 L2 L3 2216 Q digital setpoint 1 Address specification: deleted (--) or 0 - off / 1 - on 2220 Q digital setpoint 2...
-
Page 15: Reference Lists For Parameters According To Connection Type
Issue 2014-11-19 Datasheet 2.50-40.151-11-EN Product Description SBM51/11 Reference Lists for Parameters according to Connection Type The following parameters are available depending on the connection type of the energy monitoring device. Possible connection types: ■ Single-phase ■ Three-wire connection (3W) balanced load/ unbalanced load ■... - Page 16 Datasheet 2.50-40.151-11-EN Issue 2014-11-19 SBM51/11 Product Description Par.no. Measured quantity Single-phase / 3W unbalanced load 4W unbalanced load 3W balanced load 4W balanced load 2253 Phase current I2 Present Present 2254 Effective power P2 Present 2255 Apparent power S2 Present...
