Turbines, Inc. CDS1000 Installation And Operation Manual

Complete delivery system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Model CDS1000

Installation and Operation

Also covers the CDS1000-B

PO Box 933, 15935 US Hwy 283 N.

Altus, OK 73522-0933

Seneca: 864-882-4544

http://turbinesincorporated.com

Manual part number 900484

Revision E

Information contained herein is subject to change at any time without prior notice.

Table of Contents

Need help?

Do you have a question about the CDS1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Turbines, Inc. CDS1000

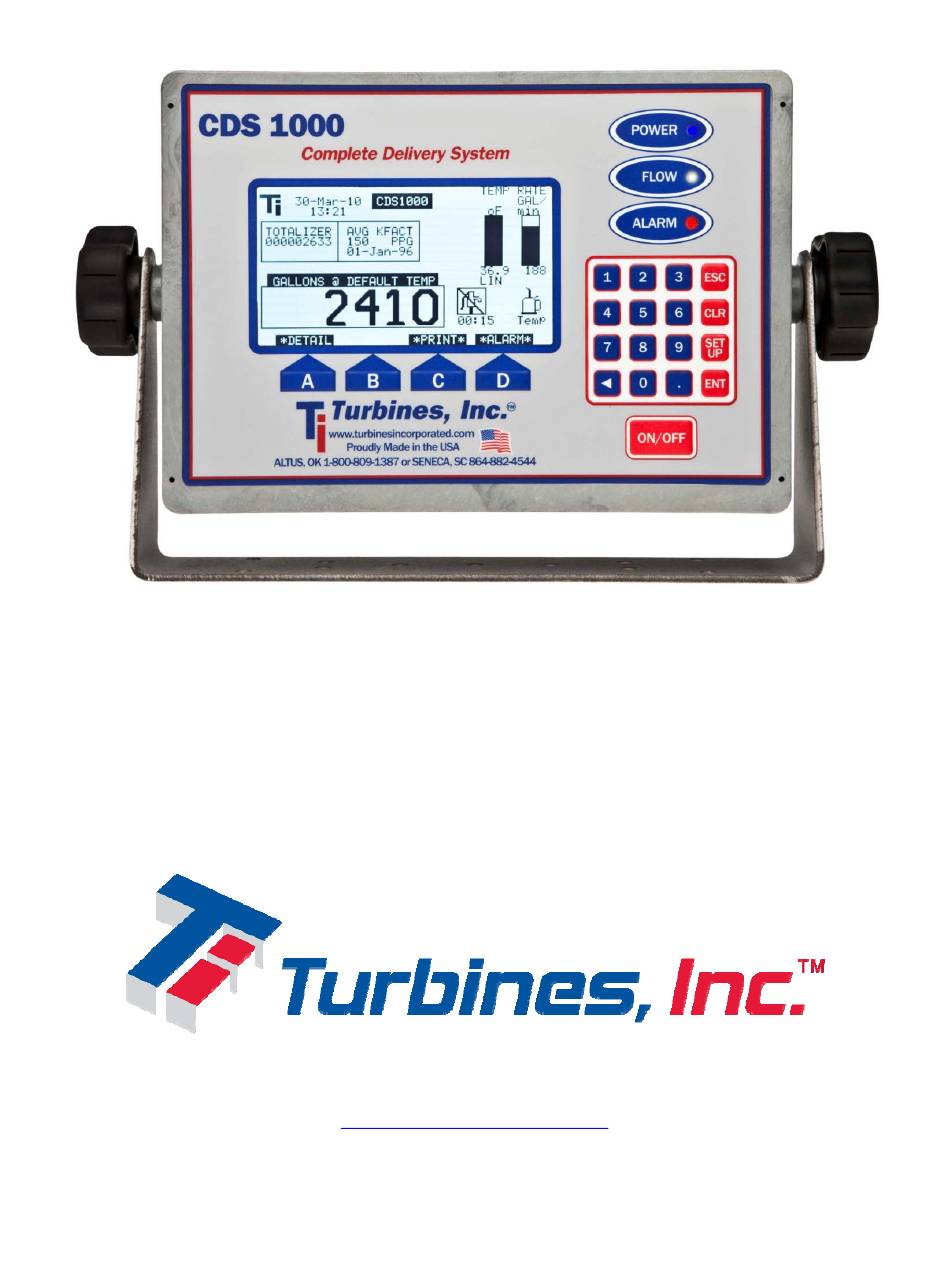

Page 1 Model CDS1000 Installation and Operation Also covers the CDS1000-B PO Box 933, 15935 US Hwy 283 N. Altus, OK 73522-0933 Seneca: 864-882-4544 http://turbinesincorporated.com Manual part number 900484 Revision E Copyright 2013-2016 Turbines Inc. All rights reserved. Information contained herein is subject to change at any time without prior notice.
Page 2 Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Notice Proprietary Notice The information contained in this publication is derived in part from proprietary data and trade secrets. This information has been prepared for the expressed purpose of assisting operating and maintenance personnel in the efficient use of the instrument described herein.
Page 3: Table Of Contents
Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Table of Contents Warranty ............................4 Description ............................5 Features: ..........................5 Overview: ..........................5 Theory of Operation:....................... 5 Modes of Operation: ....................... 6 ...
Page 4: Warranty
Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Warranty Turbines Inc. of Altus Oklahoma provides the following statement of warranty and is subject to the following terms and conditions. No other warranty or guaranty express or implied shall be operative or binding upon the company at any time, or under any circumstances.
Page 5: Description

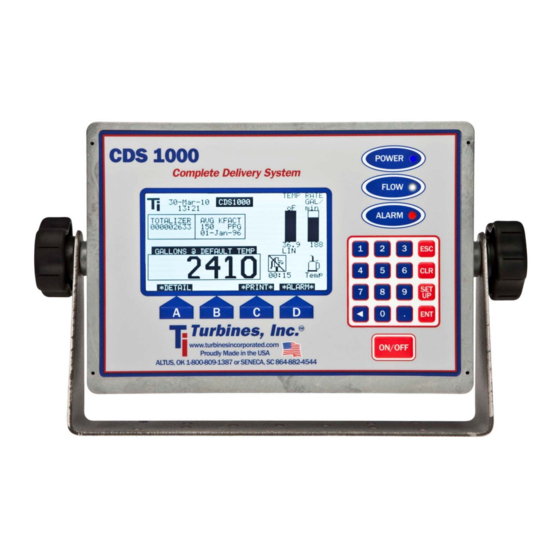

Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Description The CDS1000 Flow Monitor is a microcontroller based rate/totalizer that is capable of calculating the effects of changes in temperature on computed values. Features: Real time graphics and display of operating parameters...
Page 6: Modes Of Operation
The CDS1000 program offers 3 modes, Operating, Programming, and Prove. Any mode that can affect the calibration of the CDS1000 is password protected. The CDS1000 has a 2 tiered password level of security, Privileged and User/Weights and Measures. The Privileged password is maintained exclusively for Factory use and allows access to ALL menu options.
Page 7: Installation
Route cables and tie wrap excess so that no rubbing of the cables will occur. b. Allow slack in the cables to allow the CDS1000 to rotate for easy access to the rear panel. 5. Connect the power cable to the vehicle battery or other constant power source. It is not recommended to connect the power to the lighting system of the truck/trailer.
Page 8: Operation
Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Operation Observe BLUE LED Observe WHITE LED Temperature Indicator Rate Indicator illuminated indicates illuminated or flashing. Current calibration unit is powered on Indicates unit is (K) factor and last receiving signal from calibration date.
Page 9: Programming
Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Programming Your Model CDS1000 is factory set. You should only use this programming guide to change your parameters or turn on additional features. Power Unit Off Press and hold "ESC". While holding, press and release "ON/OFF" for about 1 second to access the Initialization Options Menu 1) Set Clock &...
Page 10 Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) 1 – 1/2" 2 – 5/8" 3 – 3/4" 3) Change System Settings (enter passcode) (default 1000) 4 – 1.0" 5 – 1 1/4" 6 – 1 1/2" 1) Flowmeter size Press 1-9 7 –...
Page 11 Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) 3) Change system settings (continued) 4) User passcode Default 1000 Type value, press “ENT” (max 16 numerical digits) 5) Maintenance 1) System maintenance due Enter setting “DDMMYY” press “ENT” 2) System maintenance just performed Press “0”...
Page 12 7) Serial Echo target device and characters can be sent from the target device to the CDS1000 to be displayed on the LCD. 8) Loaner (Factory use only) Press “ESC” to exit. The system will display “R”, meaning it is resetting.
Page 13: Specifications
Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Specifications Hardware:  Amplifier Input:  Frequency range: 0-2500 Hz  Sensitivity:  15mv RMS @ 10 Hz (min)  100mv RMS @ 500 Hz (min)  400mv RMS @ 2.5 KHz (min) ...
Page 14: Troubleshooting
(b) With a screw driver, rapidly scratch coil below the threads on the bottom surface. (c) Observe CDS1000 counts or "signal" light slightly illuminates or flashes. If yes, there is most likely a problem with the turbine meter. d) RTD Short or RTD Open i) Check temperature probe cable connection ii) Check cable for any loose or frayed ends.
Page 15: Illustrations
Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Illustrations CDS1000 Page 15...
Page 16 Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) CDS1000 Page 16...
Page 17: Wiring
Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Wiring CDS1000 Wiring Connections Power Signal Temp Function Color Function Color Function Color 1 Power1 Brown 1 Coil1 + Brown 1 RTD S- Brown 2 N/C 2 Coil1 - White...
Page 18: Return Policy
Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Return Policy All Returns: For all returns: (a) a return request must be made to Turbines R&D LLC Customer Service with type of Product, quantity, price paid, invoice number and date of purchase; (b) a Turbines R&D LLC Return Material Authorization (RMA) number must be obtained from Turbines R&D LLC Customer Service prior to the return;...
Page 19: Field Calibration
(intervals). The best practice when using a scale is to place the receiving vessel on the scale. For any procedure the CDS1000 should be in the Prove mode. Depress the Setup key, enter the password when prompted, depress Enter and then ESC;...
Page 20: Programming A New Kfactor
If equipped with a Program Enable Module (PEM) cut the lead seal wire and remove the PEM. With the CDS1000 powered up normally, depress Setup and if not already in Prove mode enter your password. Select Avg. Kfactor by depressing 1 Example: A new Kfactor is calculated to be 147;...
Page 21: Revision History
Turbines Incorporated Cryogenic Flow Delivery System CDS1000 Manual (Rev E) Revision History Revision Description Date Initial Release 1/31/2012 Fix first flow chart page (Power Off) 11/12/2012 Delete duplicate programming on Pg11 12/21/2012 Incorporate Pressure PCO control feature and menu items 06/11/2014 Added missing menu item 3 –...
