ZPE Nodegrid Services Router Quick Start Manual

Security Warning
The Nodegrid Services
Router (NSR) provides
extensive access to the
devices attached to this
equipment. As a result,
care must be taken to
avoid compromising your
security policies.
From the factory, this
equipment is shipped
with the following
settings:
• DHCP, SSHv2, HTTPS –
ENABLED
• All Serial, USB, SFP+
and switch ports –
DISABLED
• Ethernet – ENABLED
• Two default users with
passwords:
– root / root
– admin / admin
ZPE recommends
changing the default
passwords of admin and
root, as well as carefully
configuring security
settings immediately after
initial setup.
Please consult the NSR
User Guide for more
information on security
settings.
By installing, copying, or otherwise using this device, you agree to be bound by the terms of the licensing, maintenance and sale agreements set forth on
www.zpesystems.com/docs/legal. if you do not agree to the terms of those agreements, do not install or use the Hardware and/or Software Product(s).
Quick Start Guide for Nodegrid Services Router
1

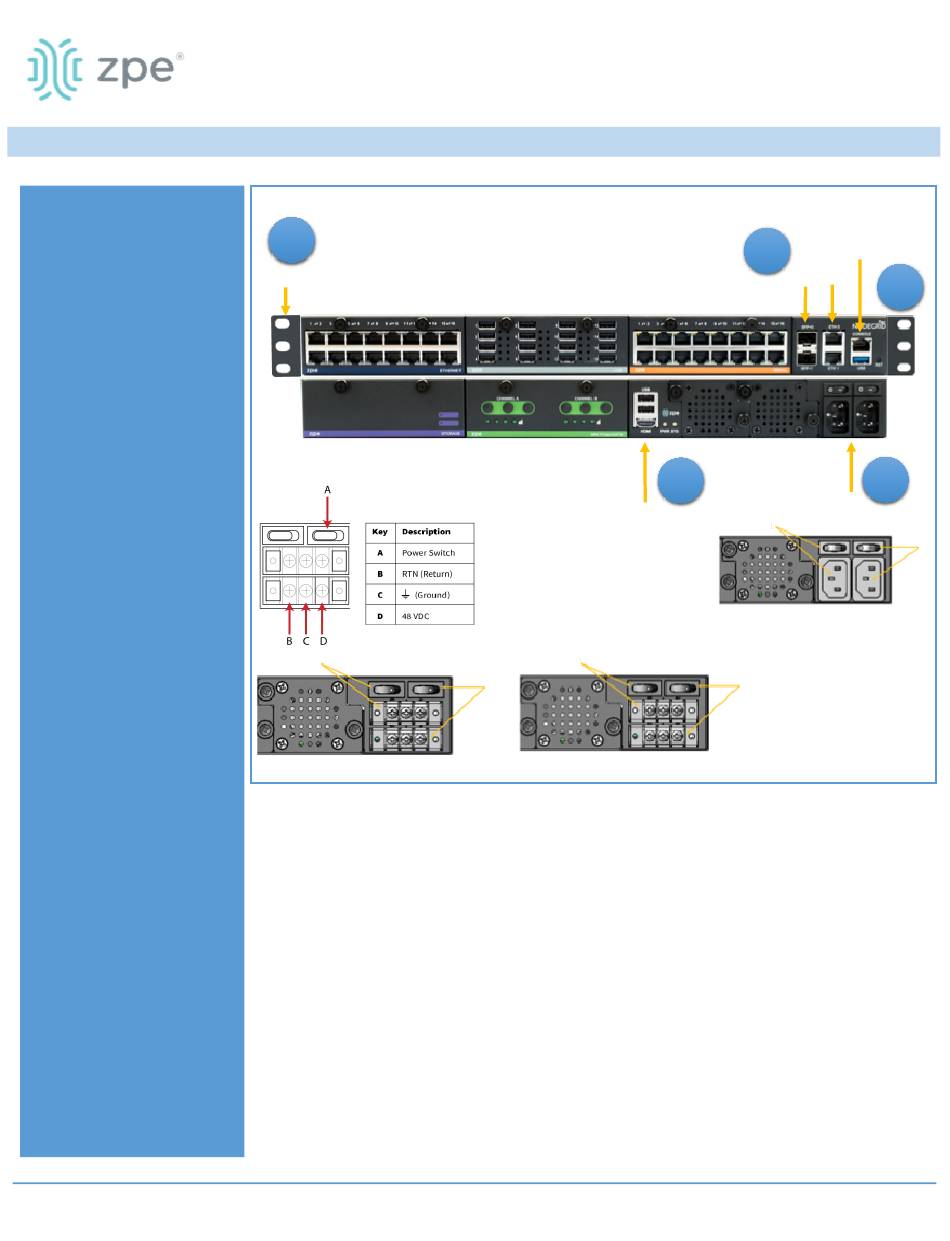

Rack Mounting
Slot #1
Front
Back
Slot #4
DC options
DC PoE
Single DC + DC PoE option
1
Rack mount your NSR
For detailed rack mounting instructions, see
the NSR User Guide.
2
Connect to your network
Connect a ZPE-recommended
CAT 5e or CAT 6 cable from the
10/100/1000BaseT port to your network.
You may connect to either or both network
ports for redundancy.
3
Connect to the Serial Console port
Using the ZPE's RJ-45 console adaptor,
Note: All remaining manual setup steps are required the first time you configure your NSR.
For manual downloads and support, visit: www.zpesystems.com/document-library/
For further assistance please contact ZPE Technical Support.
Nodegrid Services Router
Nodegrid Services Router shown
Slot #2
Slot #5
HDMI
DC options
DC 2
DC
Dual DC power option
connect a terminal or workstation to the
serial console port on the NSR. The NSR will
be configured using a terminal or terminal
emulator with session settings of: 115200,
8, N,1, with no flow control.
Alternatively, use the HDMI port.
4
Connect power cables and turn NSR on
Connect the power cables to the appliance.
Turn on the power switches.
2
Console
Dual
SFP+ GbE
Slot #3
3
Dual AC power
AC PoE
Single AC + AC PoE option
DC 1
TM
3
4
AC
