Manual

Above-counter dispenser

for hot drinks OTHG 105

60-0426-0000

11/12

Table of Contents

Need help?

Do you have a question about the OTHG 105 and is the answer not in the manual?

Questions and answers

Summary of Contents for Selbach OTHG 105

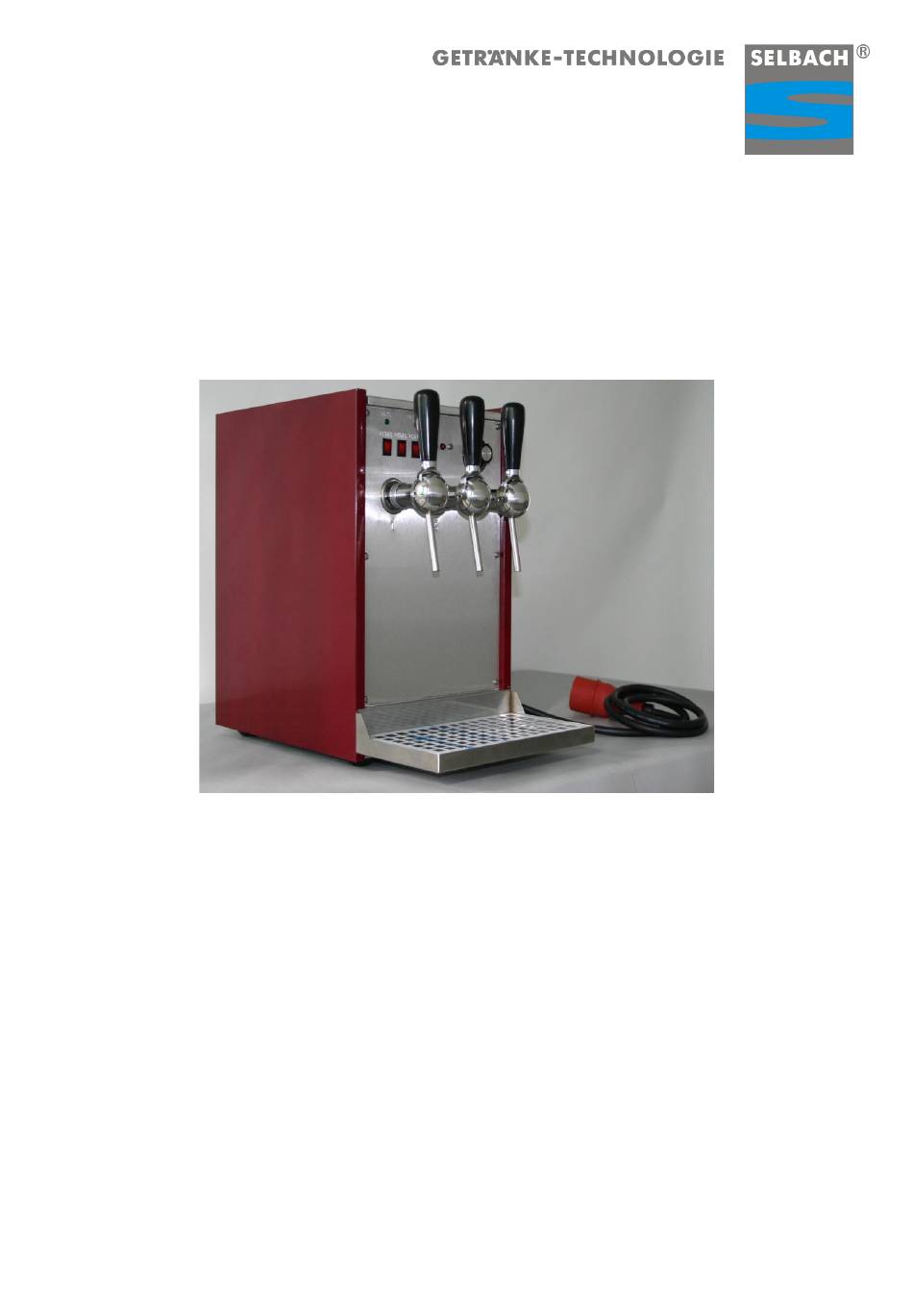

Page 1 Manual Above-counter dispenser for hot drinks OTHG 105 60-0426-0000 11/12...
Page 2 It is in your own interests to observe all the hazard and safety information. This helps you to prevent accidents and technical malfunctions. Only allow employees who have read this manual and familiarised themselves with the machine to operate the machine. Keep this manual near the machine.
Page 3: Table Of Contents
13.0 Spare parts list ........................12 14.0 Schematic sketch of OTHG without beverage pump ............. 13 15.0 Schematic sketch of OTHG with built-in gas-operated beverage pump ........ 14 17.0 Circuit diagram for OTHG 105 ....................16 18.0 Type examination certificate ....................17 60-0426-0000...
Page 4: Device Details
1.0 Device details 1 - 3 10 - 12 Heating indicator lights Mains indicator light (orange) (green) Switches for electrical beverage pumps Temperature adjustment Overheating protection (on the base plate in several models) Drip tray Mains cable Beverage input 1 Beverage input 2 Beverage input 3 Pressure input...
Page 5: Hazard Information
2.0 Hazard information We pride ourselves on providing the best possible device safety, among other outstanding product characteristics. Despite all the safety precautions, however, there are always potential hazards with even the best devices if they are not handled properly. For this reason and in your own interests, we have summarised the potential hazards below.
Page 6: Safety Functions
Intended use Selbach hot beverage devices are intended for use in the hospitality industry and at outdoor events. Selbach hot beverage devices are the ideal solution when it comes to effortless and clean heating up of mulled wine, fortified tea etc.
Page 7: Installation
6.0 Installation Installing the machine To ensure trouble-free operation, the mulled wine heater must be positioned on a level surface. Make sure that there is sufficient space available to connect the beverage lines. Select an installation site where the equipment is protected against wet conditions. Also make sure that the connection cable is not kinked or pinched and goes straight to the socket.
Page 8: Initial Start-Up
8.0 Initial start-up 1) Connect the beverage lines, check for any leaks. 2) To operate the built-in gas pumps, connect the pressure lines (see page 12). Make sure to handle the cylinder pressure reducer correctly if using CO or nitrogen. Alternatively, you can also use dry, clean compressed air.
Page 9: Cleaning
To ensure an unadulterated, pristine product quality, all three components must interact seamlessly. To ensure appropriate cleanliness and sterility when cleaning the OTHG 105 above-counter heating device, always use a chemical cleaning method. Cleaning with water only does not eliminate microbes.
Page 10 Housing Before cleaning the equipment, disconnect the mains plug! Do not allow the device to come into direct contact with water, simply clean it with a damp cloth and a little dishwashing detergent. Cleaning agent and disinfectant requirements The cleaning agents and disinfectants used must not attack the surface finish of components and lines.
Page 11: Troubleshooting
12.0 Troubleshooting Fault Possible cause Trouble- shooting Device does No mains connection Connect not switch on to mains Device switched off Switch on device Overheating protection Switch on has triggered overheating protection (Some) indicator One or more Check lights(s) do not fuses have fuses and mains light up...
Page 12: Spare Parts List
13.0 Spare parts list Order number Components Additional designation 23-0179-0000 Ball valve 7 mm i.D. VA 50-0016-0000 Overheating protection f. OTHG 50-0121-0000 Capillary tube controller 55.34012.600 50-0191-0000 Button for capillary tube controller 524.803 50-0122-0000 Switch for capillary tube controller 49.41015.500 50-0028-0000 Gas diaphragm pumps 51-1841-0000...
Page 13: Schematic Sketch Of Othg Without Beverage Pump
14.0 Schematic sketch of OTHG without beverage pump 60-0426-0000 11/12...
Page 14: Schematic Sketch Of Othg With Built-In Gas-Operated Beverage Pump
15.0 Schematic sketch of OTHG with built-in gas-operated beverage pump 60-0426-0000 11/12...
Page 15 16.0 Schematic sketch of OTHG with built-in electric beverage pump 60-0426-0000 11/12...
Page 16: Circuit Diagram For Othg 105
17.0 Circuit diagram for OTHG 105 60-0426-0000 11/12...
Page 17: Type Examination Certificate
18.0 Type examination certificate 60-0426-0000 11/12...
Page 18 60-0426-0000 11/12...
Page 19 Beverage technology Friedhelm Selbach GmbH Heisenbergstr. 5 42477 Radevormwald Phone 0 21 95 / 68 01-0 0 21 95 / 68 01-188 Email info@selbach.com Internet: http://www.selbach.com 60-0426-0000 11/12...
