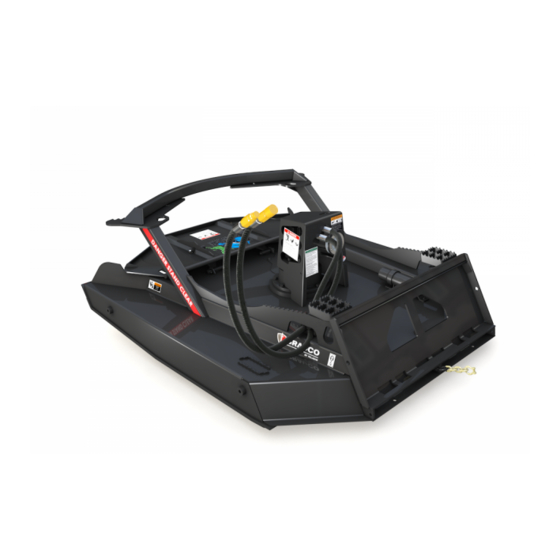

OPERATOR'S MANUAL
BRUSH CUTTER
Extreme Duty Ground Shark
GSE66, GSE72, GS72 & GS78
SERIAL NUMBER: ___________________
MODEL NUMBER: ___________________
800-456-7100 I www.paladinattachments.com
SKID STEER LOADERS
503 Gay Street, Delhi, IA 52223, United States of America Copyright ©
TM
FOR
Manual Number: OM828
Part Number: 75728
Rev. 7
12133
7-27-18-8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bradco Extreme Duty Ground Shark Series and is the answer not in the manual?

Questions and answers

Summary of Contents for paladin Bradco Extreme Duty Ground Shark Series

  • Page 1 OPERATOR’S MANUAL BRUSH CUTTER Extreme Duty Ground Shark GSE66, GSE72, GS72 & GS78 SKID STEER LOADERS SERIAL NUMBER: ___________________ Manual Number: OM828 Part Number: 75728 MODEL NUMBER: ___________________ Rev. 7 800-456-7100 I www.paladinattachments.com 503 Gay Street, Delhi, IA 52223, United States of America Copyright © 12133 7-27-18-8...
  • Page 2 READ ENTIRE OPERATOR'S & PARTS MANUAL BEFORE OPERATING! DANGER! ROTATING BLADE HAZARD! STAY BACK! OBJECTS CAN BE THROWN! DO NOT operate near bystanders. DO NOT place hands or feet under deck while in operation or with en- gine running. DO NOT operate without a shatterproof door (or front shield) installed on loader.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PREFACE................................3 SAFETY PRECAUTIONS Safety Statements ............................ 5 General Safety Precautions ........................5-7 Equipment Safety Precautions ......................8-9 DECALS .................................10-12 PREOPERATION ..............................13 INSTALLATION INSTRUCTIONS ........................14 OPERATING INSTRUCTIONS Intended Use ............................15 General Information ..........................15 Operating Tips ............................15 Cutting Operation ..........................16-17 Troubleshooting Operating Conditions ....................
  • Page 4 75728...

  • Page 5: Preface

    Based on the uncertainty of the prime mover, operator, and job site, it is not possible to get precise ma- chine and operator sound pressure levels or vibration levels for this attachment. NOTE: A list of all Paladin Patents can be found at http://www.paladinattachments.com/patents.asp. 10344...
  • Page 6 THIS PAGE IS INTENTIONALLY BLANK 75728...

  • Page 7: Safety Statements

    SAFETY STATEMENTS THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT THIS MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INjURY OR DEATH. THIS SIGNAL WORD INDICATES A HAzARDOUS SITUATION WHICH, IF DANGER NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS INjURY.
  • Page 8 GENERAL SAFETY PRECAUTIONS WARNING! PROTECT AGAINST FLYING DEBRIS Always wear proper safety glasses, goggles, or a face shield when driving pins in or out, or when any operation causes dust, flying debris, or any other hazardous mate- rial. WARNING! LOWER OR SUPPORT RAISED EQUIPMENT Do not work under raised booms without supporting them.
  • Page 9 GENERAL SAFETY PRECAUTIONS WARNING! DO NOT MODIFY MACHINE OR ATTACHMENTS Modifications may weaken the integrity of the attachment and may impair the func- tion, safety, life, and performance of the attachment. When making repairs, use only the manufacturer’s genuine parts, following authorized instructions. Other parts may be substandard in fit and quality.

  • Page 10: Equipment Safety Precautions

    EQUIPMENT SAFETY PRECAUTIONS WARNING! KNOW WHERE UTILITIES ARE Observe overhead electrical and other utility lines. Be sure equipment will clear them. When digging, call your local utilities for location of buried utility lines, gas, water, and sewer, as well as any other hazard you may encounter. WARNING! EXPOSURE TO RESPIRABLE CRYSTALLINE SILICA DUST ALONG WITH OTHER HAZARDOUS DUSTS MAY CAUSE SE-...

  • Page 11: Equipment Safety Precautions

    EQUIPMENT SAFETY PRECAUTIONS OPERATING THE ATTACHMENT • When operating on slopes, drive up and down, not across. Avoid steep hillside operation, which could cause the prime mover to overturn. • Reduce speed when driving over rough terrain, on a slope, or turning, to avoid overturning the vehicle.

  • Page 12: Decals

    DECALS DECAL PLACEMENT GENERAL INFORMATION The diagram on this page shows the location of all the decals used on your attachment. The decals are identified by their part numbers, with reductions of the actual decals located on the following pages. Use this information to order replacements for lost or damaged decals. Be sure to read all decals before operating the attachment.
  • Page 13 DECALS DANGER! ROTATING BLADE PART #40673 SAFETY INSTRUCTIONS PART #40677 WARNING! HIGH PRESSURE FLUID PART #40151 WARNING! BEFORE LEAVING OPERATOR'S SEAT PART #40678 WARNING! LIFT LIMITING CHAIN PART #40679 DANGER! GUARD MISSING PART #40307 8906 2-29-12-3 75728...

  • Page 14: Decals

    DECALS DANGER STAND CLEAR DANGER STAND CLEAR PART #4105 MADE IN USA PART #4338 LIFT POINT PART #50-0769 WARNING! PINCH POINT PART #50-0737 WARNING! MOVING PARTS PART #41207 NOTE: CONTACT YOUR LOCAL DEALER TO PURCHASE LOGO DECALS. 12132 2-29-12 75728...

  • Page 15: Preoperation

    PREOPERATION GENERAL INFORMATION Your attachment is operated by the prime mover’s auxiliary hydraulics and mounts to the toolbar/quick attach mechanism for easy operator hook-up. Your skid steer loader must have an auxiliary hydraulic system and a shatterproof door or front shield to operate the brush cutter. DANGER! To AVOID SERIOUS PERSONAL INJURY OR DEATH THE BRADCO BRUSH CUTTER MUST NOT BE ATTACHED TO ANY POWER UNIT THAT DOES NOT...

  • Page 16: Installation Instructions

    INSTALLATION INSTRUCTIONS GENERAL INFORMATION The following instructions will help you to mount your brush cutter onto your skid steer loader. The brush cutter uses the quick-attach system for ease of installation. Therefore, if you know how to attach your loader bucket, attaching the brush cutter should prove no problem. Remember to read all safety warnings, decals and operating instructions before operat- ing the attachment.

  • Page 17: Operating Instructions

    OPERATING INSTRUCTIONS INTENDED USE: The Ground Shark brush cutter is designed for cutting brush and small trees up to 7” (178mm) in diameter while still maintaining a 12” (305mm) maximum ground clearance. When equipped with the tooth kit, the attachment will also grind the remaining stumps down to ground level.

  • Page 18: Cutting Operation

    OPERATING INSTRUCTIONS WARNING! Before leaving the operator's seat: Lower the lift arms against frame and place both skid shoes on the ground. Disengage auxiliary hydraulics. Stop Engine. Engage parking brake. Remove the key. DANGER! ROTATING BLADE HAZARD! STAY BACK! OBJECTS CAN BE THROWN! DO NOT operate near bystanders.
  • Page 19 OPERATING INSTRUCTIONS When cutting large brush and small trees: Roll the front of the brush cutter up 1-2 feet (305-610mm). DO NOT LIFT THE BACK OF THE CUTTER! Slowly drive into the tree. The front shield will raise up allowing the push bar on the brush cutter to push against the tree.

  • Page 20: Troubleshooting Operating Conditions

    OPERATING INSTRUCTIONS TROUBLESHOOTING OPERATING CONDITIONS: Below are listed a few operating conditions that may cause repeated stalling of your brush cutter, and suggestions on how to correct them. GRASS TOO LONG OR THICK: If cutting heavy vegetation, you may need to slow travel speed or make smaller passes (less than full cut) to prevent overloading and stalling the unit.

  • Page 21: Storage

    OPERATING INSTRUCTIONS STORAGE The following storage procedure will help you to keep your brush cutter in top condition. It will also help you get off to a good start the next time your cutter is needed. We therefore strongly recommend that you take the extra time to follow these procedures whenever your unit will not be used for an extended period of time.

  • Page 22: Tie Down Points

    OPERATING INSTRUCTIONS • Attach lifting accessories to unit at recommended lifting points. • Bring lifting accessories together to a central lifting point. • Lift gradually, maintaining the equilibrium of the unit. WARNING! Use lifting accessories (chains, slings, ropes, shackles and etc.) that are capable of supporting the size and weight of your attachment.

  • Page 23: Lubrication

    LUBRICATION GENERAL INFORMATION Economical and efficient operation of any machine is dependent upon regular and prop- er lubrication of all moving parts with a quality lubricant. Neglect leads to reduced efficiency, wear, breakdown, and needless replacement of parts. WEEKLY The oil level in the drive bearing housing should be checked once a week. Fill as neces- sary with a mild extreme pressure lubricant API-GL-5, No. 80 or 90 weight gear lubricant. GSE SERIES (20-34 GPM) CUTTERS TO CHECK: Remove plug from front of drive PLUG bearing housing. Lubricant should be visible and just covering top bearings. DO NOT OVERFILL. TO ADD: Remove plug from end of front of the drive bearing housing and add lubricant until top bearings are covered. Replace plug. GS SERIES (30-45 GPM) CUTTERS NOTE: Oil level should be approximately 2” (51mm) from the top when measuring down from the plug.

  • Page 24: Maintenance Schedule

    MAINTENANCE GENERAL INFORMATION Regular maintenance is the key to long equipment life and safe operation. Maintenance requirements have been reduced to an absolute minimum. However, it is very important that these maintenance functions be performed as described. WARNING! Avoid serious injury. Lower the brush cutter so both skid shoes are on the ground, set the parking brake, stop the skid steer engine, and remove the key before leaving the operator's seat.

  • Page 25: Replacing Blades

    MAINTENANCE WARNING! Avoid serious injury. Lower the brush cutter so both skid shoes are on the ground, set the parking brake, stop the skid steer engine, and remove the key before leaving the operator's seat. Be sure all rotation has stopped before making any adjustments or repairs.

  • Page 26: Replacing Blades

    MAINTENANCE WARNING! Avoid serious injury. Lower the brush cutter so both skid shoes are on the ground, set the parking brake, stop the skid steer engine, and remove the key before leaving the operator's seat. Be sure all rotation has stopped before making any adjustments or repairs.

  • Page 27: Replacing Hydraulic Motor

    MAINTENANCE NOTE: With one hand under the blade carrier holding the capscrew into the bolt head recess, loosely install one capscrew and then rotate the blade with spacer installed around to align the remaining two holes. Repeat steps #3 and #4 for the remaining three blades. After all four blades have been replaced, torque all hardware on the blades and the blade carrier to specification.

  • Page 28: Replacing Drive Bearing Housing

    MAINTENANCE IMPORTANT: If couplers were not disconnected prior to removing the control valve, oil will drain from the skid steer causing extensive oil loss. Remove the capscrews holding the motor to the drive bearing housing, and remove the motor. Check motor seal for damage and replace if required. NOTE: If motor shaft seal was damaged you will need to drain the existing oil from the drive bearing housing and replace with new before installing the new motor.
  • Page 29 MAINTENANCE Attach the hoist to the blade carrier assembly and remove from the brush cutter and set aside. (NOTE: The blade carrier weighs between approximately 300 lbs (136 kgs) on the 66” to 700 lbs. (318 kgs) on the 78” cutter.) With the blade carrier assembly removed.

  • Page 30: Changing Oil

    MAINTENANCE CHANGING OIL IN DRIVE BEARING HOUSING When changing the oil in the drive bearing housing the unit should be setting firmly on the ground with the hydraulic couplers disconnected. We recommend removing the existing oil with a fluid removal pump. Remove one of the plugs in the drive bearing housing and place the extraction hose into the housing so that it reaches the bottom. Place the output hose into an approved container or drum that will hold the waste oil. Following the instructions for your fluid removal pump, remove all oil from the drive bearing housing. Once the oil has been drained from the housing, remove the pump. GSE Series (20-34 GPM) Cutters: Fill the housing up to the plug with a mild extreme pressure lubricant API-GL-5, No. 80 or 90 weight gear lubricant. GS Series (30-45 GPM) Cutters: Fill the housing with approximately 2.50 quarts (2.4 li- ters) of a mild extreme pressure lubricant API-GL-5, No. 80 or 90 weight gear lubricant. NOTE: Oil level should be approximately 2” (51mm) from the top when measuring down from the plug.

  • Page 31: Troubleshooting

    TROUBLESHOOTING POSSIBLE CAUSE POSSIBLE REMEDY PROBLEM EXCESSIVE Blades bent. (Blades will become stuck Replace bent blades. (Blades positioned VIBRATION between blade carrier plates and cause an directly opposite of each other will need to imbalance.) be replaced at the same time.) Blades damaged or worn.

  • Page 32: Bolt Torque Specifications

    BOLT TORQUE SPECIFICATIONS GENERAL TORQUE SPECIFICATION TABLES Use the following charts when determining bolt torque specifications when special torques are not given. Always use grade 5 or better when replacing bolts. SAE BOLT TORQUE SPECIFICATIONS NOTE: The following torque values are for use with extreme pressure lubricants, plating or hard washer applications Increase torque 15% when using hardware that is unplated and either dry or lubricated with engine oil.

  • Page 33: Brush Cutter Specifications

    SPECIFICATIONS 5° SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE AND WITHOUT LIABILITY THEREFOR. GSE SERIES (20-34 GPM CUTTERS) DESCRIPTION 66GSE 72GSE Overall Height............28.13” (715 mm) ......28.13” (715 mm) Overall Width ............71.13” (1806 mm) ......77.13” (1959 mm) C.
  • Page 34 THIS PAGE IS INTENTIONALLY BLANK 75728...

  • Page 35: Parts / Limited Warranty

    For Fax and E-mail Orders PLC_Sales@paladinattachments.com (734) 996-9014 WARRANTY In order to provide you with the most UP-TO-DATE Warranty information, Paladin Warranty Statement and Warranty Procedures along with Warranty Registration and Claim www.paladinattachments.com Forms have been moved to our website at...
