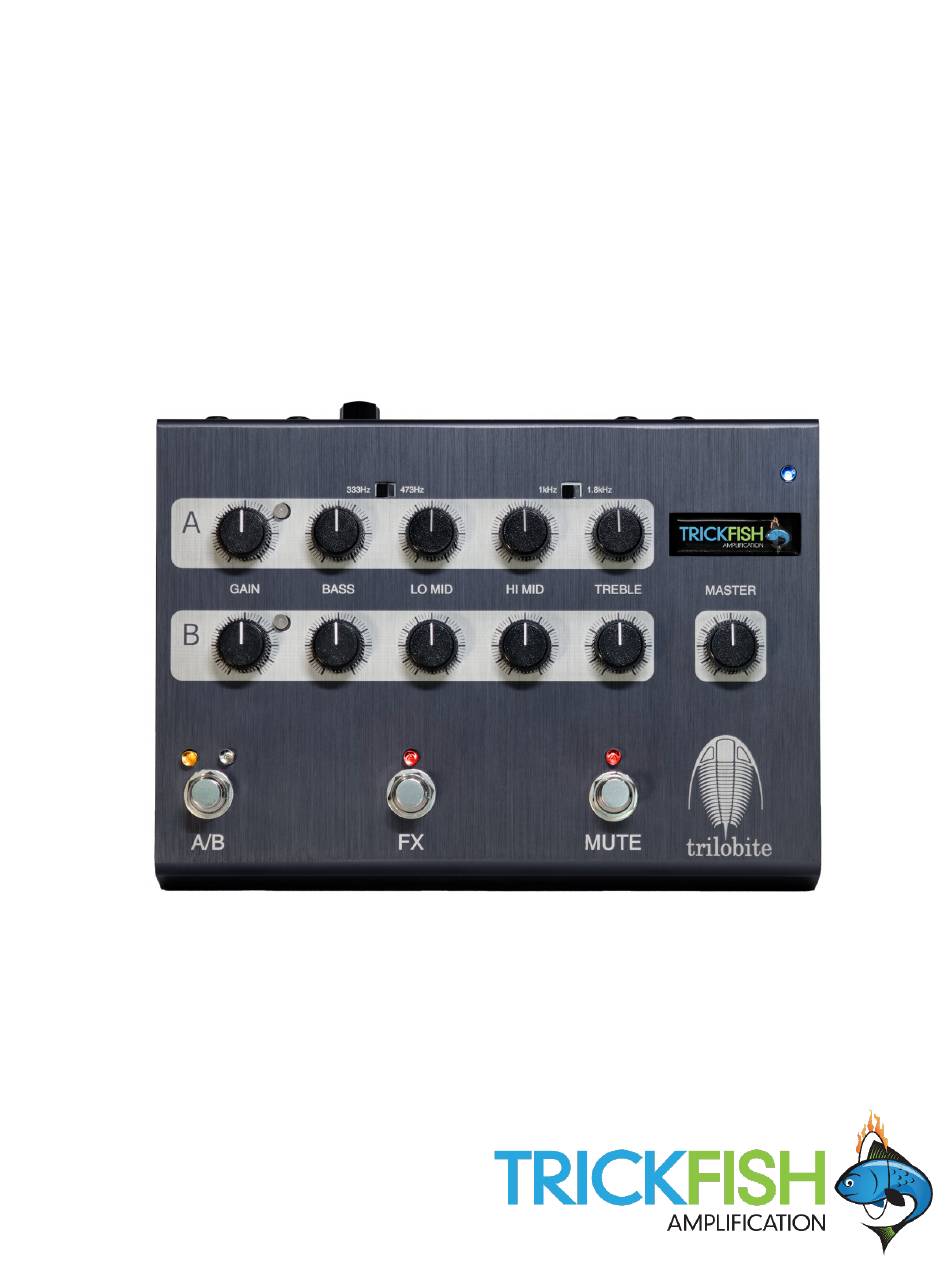

- Page 1 Trilobite Operation Manual...
- Page 2 Congratulations on your purchase of the new Trilobite preamp pedal from Trickfish Amplification! We know you are excited to get started using it and we wanted to give you a few tips to help you have a trouble-free experience! This manual contains valuable safety instructions, operational information, some insights we’ve gained over the years and some suggested settings that may help you get where you want to be just a bit quicker.
-
Page 3: Unpacking Your Unit
Unpacking your unit IMPORTANT NOTE: Your Trickfish Amplification product was originally packaged in a specially designed carton and included special packing materials. Please save these items. They should be used when shipping your Trickfish Amplification product. Please inspect the shipping carton - If the packaging seems damaged please return this item to the shipper. -
Page 4: Important Safety Instructions
Important Safety Instructions • • Damage requiring service: Unplug the apparatus Read these instructions. • from the wall outlet and refer servicing to Keep these instructions qualified service personnel under the following • Heed all warnings. conditions. • Follow the instructions. a) When the power supply cord has been •... - Page 5 EC Declaration of Conformity in accordance to EC Directives Electro-magnetic compatibility (Council Directive 89/336/EEC, as amended by Directives 92/31/EEC and 93/68/EEC); Low-voltage electrical equipment (Council Directive 73/23/EEC) This product conforms to the following standards: EN55103-1 Emission EN55103-2 Immunity FCC Part 15 Class B Compliance This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.
- Page 6 Trilobite Front Panel Features 1. Channel Selection Footswitch: Switch between Preamp A and Preamp B 2. Channel A Input Gain: Input level adjust 3. Channel B Input Gain: Input level adjust 4. Channel A Input Level Indicator: Green LED indicates signal and Red LED indicates a clip 5.
- Page 7 Trilobite Rear Panel Features 1. AC Mains Input: Attach supplied cable firmly into socket. 12V 500mA Center Negative 2. Line Input: 1/8″ mini plug accommodates MP3 players and any other input sources 3. Headphone Output: 1/8” stereo phone plug for headphone monitoring 4.
- Page 8 Insert Loop: The Trilobite has a second FX loop that is labeled the Insert Loop. This is a series FX loop where 100% of your signal passes through the loop when a cable is inserted into the return. This is a great place to put global effects like a compressor or volume pedal where you would want 100% of your signal to hit the unit.
- Page 9 DI AUX Out: There is a second DI out on the Trilobite that is labeled AUX Out. This second DI is set to POST and will pass the full signal of the Trilobite pedal. This is great for sending a second DI signal to a monitor desk or directly to your on stage In-Ear monitor rig allowing you to have a great tone for your In-Ear mix that you could blend in with the House mix that is sent to you from the engineer…...
- Page 10 Trilobite Specs Pre-Amp: Low noise solid state Mono/Dual Instrument Inputs: ¼’ Phone with rotary gain control Input Level Indicator: Signal level and Clip LEDs (green/red) Channel A EQ: 4 Band with switchable Mid, Shelving Bass and Treble, Low-Mid and Hi–Mid -Variable Gain, Band Pass EQ with selectable frequency/bandwidth options Channel B EQ: 4 Band, Shelving Bass and Treble, Low-Mid and Hi–Mid -Variable Gain, Band Pass EQ...
-
Page 11: Warranty
90 days. This warranty extends to the original owner of the product and the product must have been purchased from an authorized Trickfish Amplification dealer. The owner must present to us the sales invoice that clearly shows the dealer's name, store location or website, product model and date of purchase. We do not warranty against abuse, water damage, fire, physical force, modification, improper installation, power surges or brownouts, or any other damage caused by a third party.
