Summary of Contents for Connects2 Adaptiv Lite ADVL-BM2

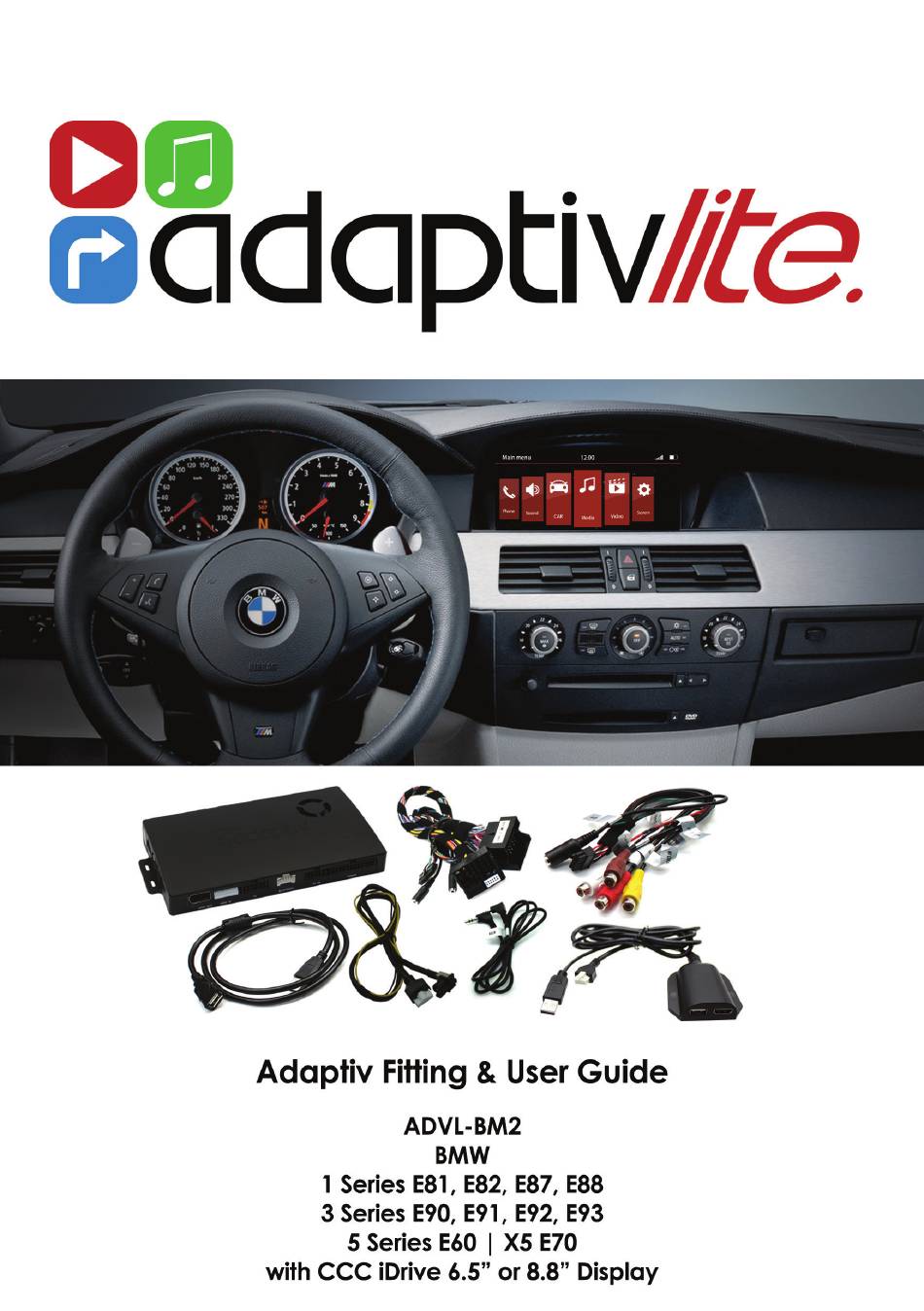

Page 1 WWW.ADAPTIV-MULTIMEDIA.COM...
Page 2: Table Of Contents
CONTENTS Contents About Connection Diagram Quick Start Guide System Sound Settings 11-12 Video - HDMI Video - DVBT 14-15 Video - AV In Media - USB/SD 17-21 Media - iPod 22-23 File Transfer 24-25 Info/Update Technical Specifications BMW E60/E70/E87/E90 SERIES PLATFORM...
Page 3: About
Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible. This will speed up the process and help us to help you.
Page 4: Connection Diagram
CONNECTION DIAGRAM CONNECTION DIAGRAM - ADAPTIV AUDI MIB PLATFORM LVDS OUT LVDS IN Audi Multimedia BMW E60/E70/E87/E90 SERIES PLATFORM...
Page 5 1. Remove the OEM head unit and disconnect the main power Quadlock (A). If there is a fibre optic cable, unplug this and connect into the supplied Quadlock (E). 2. Disconnect 10 pin LVDS connector (B) from the rear of the OEM head unit. 3.
Page 6: Quick Start Guide
QUICK START GUIDE 1. Before using your Adaptiv product, please ensure that the Aux in option is selected on your OEM head unit. If your head unit does not have the Aux in activated from factory, the Adap- tiv interface is capable of activating the Aux input in the Adaptiv menu (see page 9).
Page 7: Quick Start Guide
QUICK START GUIDE 3. Main Menu - Use the rotary commander to scroll left across to the System icon. Press down on the rotary commander to select System. 4. Scroll down to Language and select the required language. 5. In order to exit Adaptiv and return to the OEM head unit menu, press and hold the MENU button.
Page 8: System
SYSTEM The System menu allows the user to customise and select various options. Video in Motion Enable Enables/Disables video playback whilst the vehicle is in motion. This feature is turned off by default. It is the drivers responsibility to obey local traffic laws. Aftermarket Camera Enable The Adaptiv interface allows the input of an aftermarket camera into the OEM screen.
Page 9: System
SYSTEM Language Allows the user to change language of the Adaptiv inter- face. The interface is set by default to English. Video Input Change the Brightness/Contrast of the picture for AV In. Car Aux Activation The Adaptiv interface allows the activation of the OEM Aux input if your vehicle does not currently have this enabled.
Page 10: Sound Settings
SOUND SETTINGS The sound settings menu allows the user to set the volume level of an audio source independantly. When switching the source, the volume level will be automatically adjusted to the user defined level. Move the volume controller up or down to increase or decrease the volume gain level.
Page 11: Dab
DAB DIGITAL RADIO Before Use Please ensure the optional ADV-DAB module is connected to the Adaptiv interface and that the DAB antenna is connected. Note that the dipswitch on the ADV-DAB module should be in the On position. This outputs 5V power to the DAB antenna. Selecting DAB Scroll to the DAB icon on the Adaptiv homescreen.
Page 12 DAB DIGITAL RADIO Storing Presets To store a preset, select the desired radio station. Select the Preset icon from the right hand side of the display. Scroll to the required preset button (1-10) on the station presets display. Press and hold the rotary commander to save the preset.
Page 13: Video - Hdmi
VIDEO - HDMI Before Use Please ensure the ADV-HDMI module is connected to the Adaptiv interface. The ADV-HDMI module is supplied with a female HDMI socket which allows connection of Apple/Android devices with HDMI out (Device specific adapters not included). Selecting HDMI Scroll to Video on the Adaptiv homescreen and select with the rotary commander.
Page 14: Video - Dvbt
VIDEO - DVBT TV Before Use Please ensure the optional ADV-DVBT module is connected to the Adaptiv interface and the DVBT antennas are connected. Selecting TV Scroll to Video on the Adaptiv homescreen and select the TV icon with the rotary commander. Scanning When TV is first selected, you must scan in order to find available TV stations.
Page 15 VIDEO - DVBT TV Exit TV Press the MENU button on the rotary commander. WWW.ADAPTIV-MULTIMEDIA.COM...
Page 16: Video - Av In
VIDEO - AV IN The AV In feature allows audio/video input of any devices with a composite output (Aux L, Aux R and Video). Control is from the connected device. Selecting AV In Scroll to Video on the Adaptiv homescreen. Select the AV In icon on the Adaptiv homescreen.
Page 17: Media - Usb/Sd
MEDIA - USB/SD The operation and features are the same when using USB or SD. File Formats Supported The following file formats are supported: Audio Video Image - MP3 - MPEG - JPEG - AAC - AVI - PNG - FLAC - FLV - GIF - APE...
Page 18 MEDIA - USB/SD Key to Icons Previous track Next track Play / Pause Select once to repeat the song Repeat Select twice to repeat/loop. Shuffle Select this to shuffle and play tracks at random. Play list BMW E60/E70/E87/E90 SERIES PLATFORM...
Page 19 MEDIA - USB/SD Open music files on USB/SD media Open movie files on USB/SD media Open image files on USB/SD media Open all files on the USB/SD media (Folder Structure) Movie playback Key to Icons - Movie playback Previous track Next track Play / Pause Stop...
Page 20 MEDIA - USB & SD CARD OPERATION Images - Menu Images which are saved on the SD-Card or USB device can be displayed on the Adaptiv unit startup screen. Any supported image format can be used. To do this, select the icon in the bottom left corner, as shown in the picture above.
Page 21 MEDIA - USB & SD CARD OPERATION The chosen image is saved as the start screen. This will be confirmed by the green icon in the bottom left corner, as shown in the picture above. To delete the startup image, select the memory button as shown above.
Page 22: Media - Ipod
MEDIA - IPOD The iPod feature allows direct input and control of iPhone/iTouch/ iPad devices. Selecting iPod Scroll to media on the Adaptiv homescreen. Select the iPod icon iPod - Song list display iPod - Song info display BMW E60/E70/E87/E90 SERIES PLATFORM...
Page 23: Media - Ipod
MEDIA - IPOD Key to Icons Album Artist Song Playlist Previous track Next track Play / Pause Press once to repeat the song Repeat Press twice to repeat/loop. Shuffle Press this to shuffle and play tracks at random. List view Exit iPod Press the Menu button on the rotary commander.
Page 24: File Transfer
FILE TRANSFER This option allows the transfer of files between a USB memory stick and an SD Card. Selecting File Transfer Scroll to System on the Adaptiv homescreen. Select the File icon Files can be copied to/from an SD card which is inserted in the ‘Media SD’...
Page 25: Info/Update
Delete selected file Back to previous menu The current software version can be accessed via this page. Please make a note of this should you need contact Connects2 for support. Should your unit require a software update, please ensure the USB key with the update file is inserted into the Adaptiv interface ‘Multimedia’...
Page 26: Technical Specifications
TECHNICAL SPECIFICATIONS Power Power Supply Current Consumption Standby Current 7.5mA Operating Temperature -20c - +80c Resolution Output 400 x 240 / 800 x 480 Inputs Video Input 1 x RCA (AV) 1 x Rear Camera (V) 1 x HDMI 1 x DAB (ADV-DAB) 1 x TV (ADV-DVBT) 1 x Multimedia 1 x Multimedia...
Page 27 WWW.ADAPTIV-MULTIMEDIA.COM...
