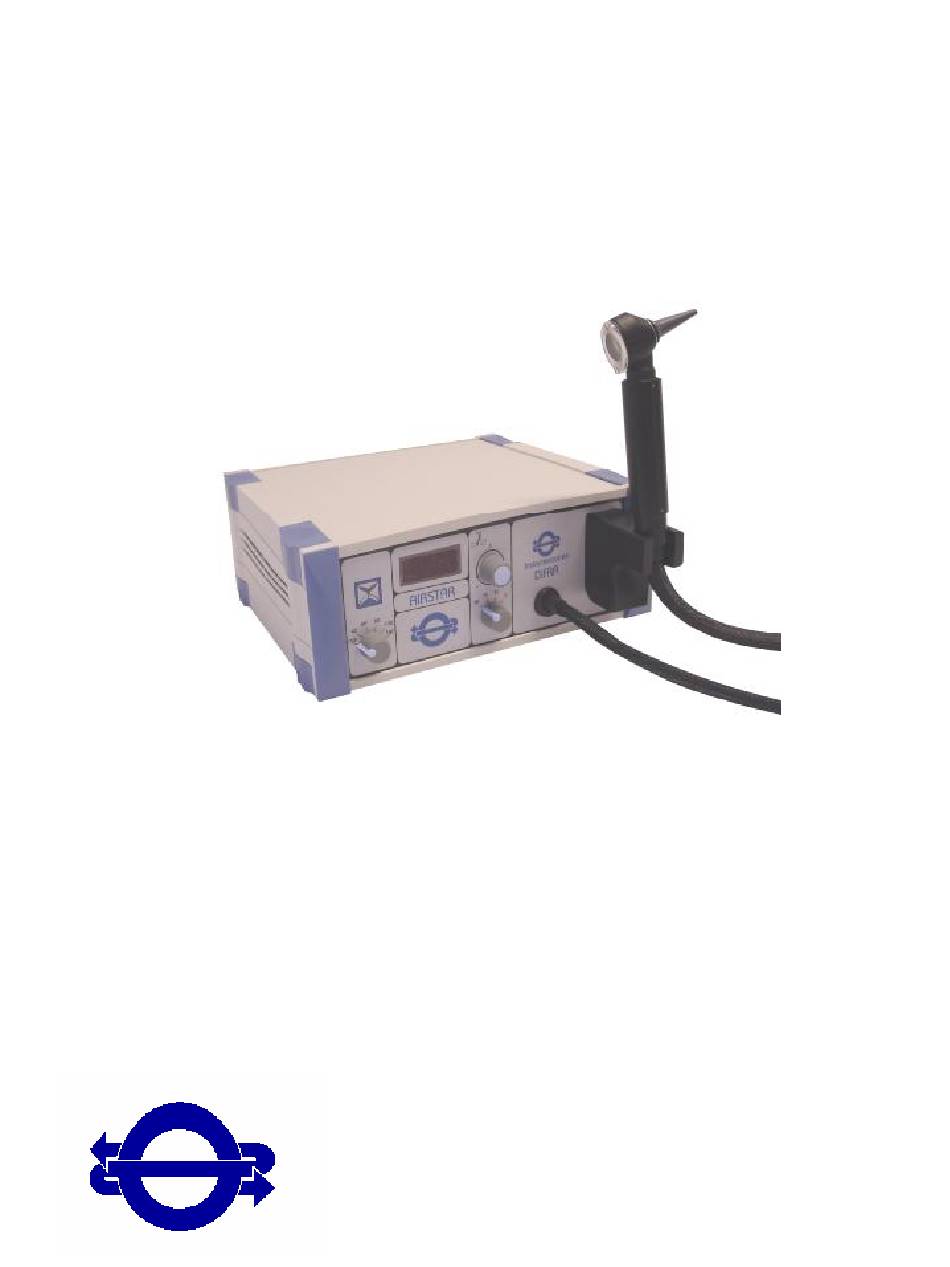

- Page 1 AIRSTAR HOT AIR CALORIC IRRIGATOR Operating manual Manufactured in Belgium by Instrumentation DIFRA s.a. Rue de L’Eglise n°84 B-4840 Welkenraedt Tel. +32 (0)87 89 80 80 Fax. +32 (0)87 89 80 89 For Micromedical Technologies...
-
Page 2: Table Of Contents
Operating manual of the Airstar air irrigator 10/10/2005 Contents Chapter I ..............................3 General information ..........................3 Introduction............................3 Chapter II..............................4 Unpacking instructions........................4 Examination of the packing ......................4 Standard contents of the packing ..................... 4 Examination of the device ......................4 Complain in case of damages ...................... -
Page 3: Chapter I
Instrumentation DIFRA in Belgium, allowing to carry out the caloric tests for the diagnosis of the vestibule. Important note : at every person who will use the AIRSTAR air irrigator, it is highly recommended to read this manual and to master this device, before using it. -
Page 4: Chapter Ii
Before opening the package, please inspect the packing against all noticeable damage. In that case, immediately advise the carrier of the damages and keep the carton as proof. The AIRSTAR air irrigator is delivered in a package designed for transportation. Keep in case of back shipment. -
Page 5: General Description

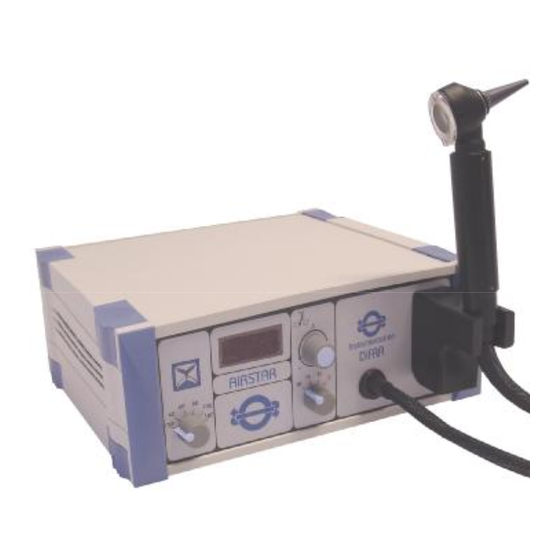

Operating manual of the Airstar air irrigator 10/10/2005 General description Accessible parts on the front panel Selection knob of irrigation time: OFF, 40, 60, 80, 100 or 120 seconds Selection knob of set point temperature: TA, TB, TC, TD Programming/reading button of the temperatures and adjustment of... -
Page 6: Chapter Iv
Installation procedure Electric connection The AIRSTAR hot air irrigator requires a power source of 115 V or 230 V – 50/60 Hz, with ground, by means of the C1 power cord which is delivered together with the device. The maximal consumption of the AIRSTAR is 50 Watts, or about 800/400 Prior to connecting the AIRSTAR to the mains, the wall plug, fuse rating and the mains wall outlet (115/230 V) should be checked. -
Page 7: Ventilation Of The Device
Operating manual of the Airstar air irrigator 10/10/2005 Ventilation of the device The AIRSTAR is provided by lateral ventilation openings. The ventilation of the device is performed by natural convection. Never put the AIRSTAR near any source of heat. Let minimum 10 cm (4 inches) free space on each side of the device, so to permit a good air circulation. -
Page 8: Chapter V
The B1 button below on the right of your display, on the front panel of your AIRSTAR (Figure 4), enables to select one of the four set point temperatures, programmed beforehand in your device. Either TA, TB, TC or TD. In general, TA and TB are used for cold irrigation, TC and TD for hot irrigation. -
Page 9: Programming And Reading The Set Point Temperatures
Place the button B2 on OFF and the button B1 on the temperature to program. The button P above on the right of your display A, on the front plate of your AIRSTAR (Figure 4), enables to program and/or read the set points of your device. Press on the button P. -
Page 10: Selection Of The Irrigation Time
1 more minute after having you hang up the handle. Handling of the irrigation handle The irrigation handle of your AIRSTAR device is a precision mechanical piece. It is highly recommended to handle it carefully and to avoid any fall. Never seal the end of the handle (air exit). -
Page 11: Guarantee And Service
Costs and risks of transport as well as removal and installation of AIRSTAR, and any other costs directly or indirectly related to the actual repair of the AIRSTAR, are not covered by this warranty. -
Page 12: Maintenance
10/10/2005 Maintenance The user must not proceed to service operation. A yearly verification of your AIRSTAR will assure a reliable and precise working. Your DIFRA/Micromedical representative will take charge of this operation. Maintenance of external surfaces Use a polishing cloth of dry cloth to wipe off dust and dirt. -
Page 13: Chapter Vi
Operating manual of the Airstar air irrigator 10/10/2005 Appendix Technical specifications Power supply ..................115/230 Volts Power input....................50 Watts Fuses......................2 x 0.4 A T Fix airflow .......................10 L/min. Temperature precision : Intrinsic measure error................≤ +/- 0,5°C By a temperature set point increase Temperature stabilization time ............ - Page 14 Operating manual of the Airstar air irrigator 10/10/2005 Ref. : 16DIF017 Registration Rev. : 18.02.99/001 Page : 14/16 Questionnaire « Service and Products Evaluation » Written by : Approved by : mediocre Average Good Excellent Evaluation of the services delays Quotations •...
-
Page 15: Certification
Operating manual of the Airstar air irrigator 10/10/2005 Certification DI090220/UM/01-E Page 15 of 16 S.A. Instrumentation DIFRA... - Page 16 Operating manual of the Airstar air irrigator 10/10/2005 DI090220/UM/01-E Page 16 of 16 S.A. Instrumentation DIFRA...
