Summary of Contents for Geekoala LP-56U-BT

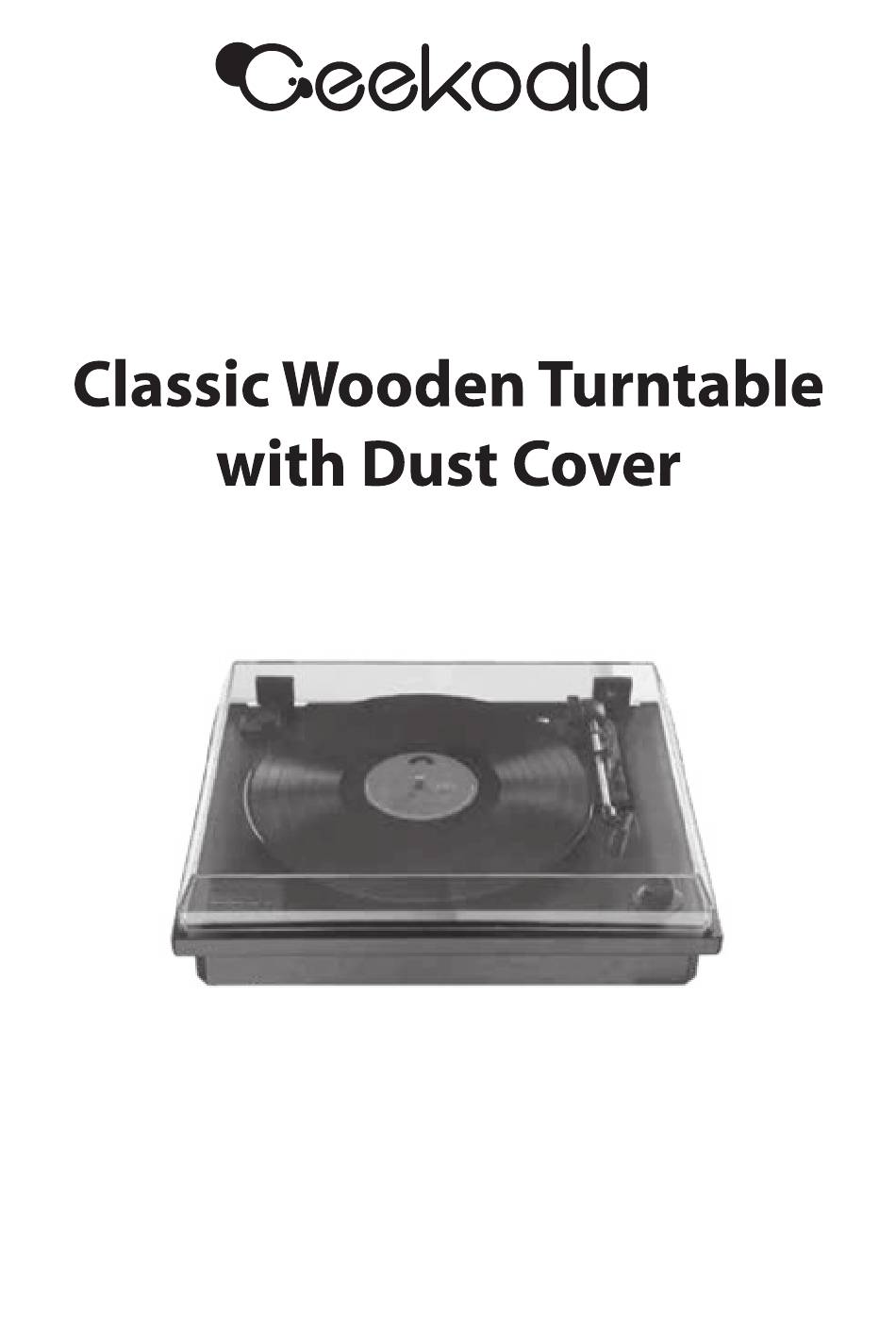

- Page 1 MODEL NO.: LP-56U-BT Instruction Manual PLEASE READ BEFORE USING THIS EQUIPMENT...
- Page 3 Important Safety Instructions Read these Instructions. FCC Warnings Keep these Instructions. NOTE: This equipmenthas beentestedand found to comply or has been dropped. Heed all Warnings. with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 4 TURNTABLE PANEL 45 RPM ADAPTER TURNTABLE CONTROL PANEL TRANSIT SCREW CROSSING LIFT LEVER SPEED SELECTOR (33/45/78 RPM) AUTO STOP CONTROL SWITCH TONE ARM LOCK TONE ARM WITH STYLUS VOLUME DIAL...
- Page 5 TURNTABLE PANEL 12 13 AUX IN LINE OUT R LINE OUT L DC 9V/2000 mA FRONT LEFT PANEL STANDBY/ USB-MP3 PHONO PHONO-REC STANDBY/ON INDICATOR BUTTON USB PLAYER INDICATOR PHONO PLAYER BUTTON PHONO PLAYER/REC INDICATOR BT BUTTON BT INDICATOR USB SOCKET USB-MP3 PLAYER BUTTON BUTTON STANDBY/ON BUTTON...
-
Page 6: Box Contents
BOX CONTENTS Make sure the items listed below are included in the box: • Main Turntable Unit • Power Adapter • Instruction Manaul UNPACKING AND SETUP Carefully remove the turntable from the display package and remove all packing material. 2. Unwind the AC adapter power cord and extend it to its full length. 3. -
Page 7: Playing Records
PLAYING RECORDS This turntable is full-sized, belt-driven, and plays 33, 45 and 78 RPM records. To turn the turntable on, press the STANDY/ON button to set the volume to a low level. 2. Press the PHONO button to turn on phono mode. Please be sure that you have removed the stylus cover from the stylus and have released the Tone arm lock. -
Page 8: Usb Operation
LED light will e flashing. Set up the Bluetooth playback device so it searches for other Bluetooth devices. Select the entry ‘Geekoala LP-56U-BT’ from the list of found devices on your Bluetooth playback device. If pairing is successful, the LED light will stop flashing and stay on Blue. -
Page 9: Line Out Operation
LINE OUT OPERATION 1. A set of Line Out jacks is included to allow audio from BT, USB-MP3 and PHONOGRAPH of this turntable to play on an external device. 2. Insert the audio cable (not included) into the turntable’s Line Out socket. 3. -
Page 10: Aux-In Operation
AUX-IN OPERATION 1. This turntable includes an auxiliary audio signal input jack for connecting external audio devices like MP3 plyaers, CD players, and older, non-dockable iPods so you can listen to your external source through the turntable’s speakers. 2. Use an audio cable (not included) with one 3.5mm stereo connection on each end of the cable. - Page 11 IMPORTANT! TRANSPORTING THE SYSTEM 1. To protect the turntable from damage during transportation, a silver trnasit screw is located on the upper right of the turntable platform. 2. Before playing, please use a screwdriver to turn the transit screw in a clockwise direction (screw going down) completely to unlock the turntable.
- Page 12 CARE THE MAINTENANCE TO REPLACE THE CARTRIDGE FROM THE TONE ARM PLEASE FOLLOW THE PROCEDUCE BELOW. 1. Gently lift off the tone arm from the tone arm lock. 2. Use your left hand to hold the tone arm and your right hand to hold the rear portion of the cartridge.
-
Page 13: Specifications
SPECIFICATIONS Bluetooth specification Version 2.1 + EDR Operating voltage DC 9V / 2000 mA Output power 2 x 4W RMS Supported storage Dimensions (L*W*H) 434 x 360 x 135.5 mm Unit weight 4.38 kg Specifications and functions connected to the continual improvement of the device are subject to change without notice.
