Summary of Contents for P1PE P10000LE

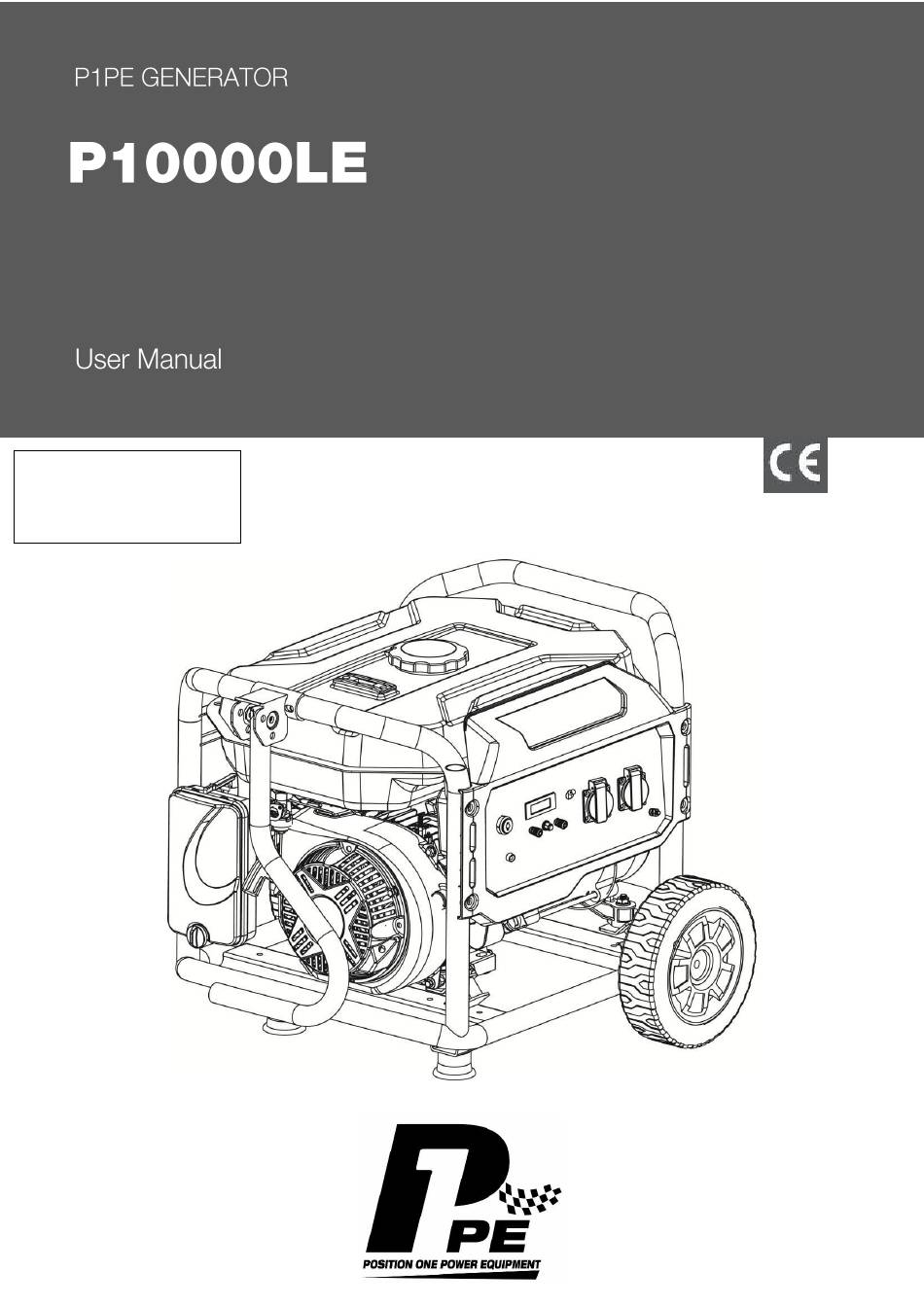

- Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
-
Page 2: Table Of Contents
Table of Contents Fore ward....................3 Safety Precautions..................4 Safety Specification ..................5 Safety Regulation ..................6 Warning Labels..................7 Product Specifications ................8 Component Identification................. 9 Features..................... 10 Operating Guide..................11 Operating....................12 Power Management. -
Page 3: Foreward
Foreward Thank you for buying this P1PE generator unit. This product is a household generator which produces electrical power by means of an engine driving a alternator, and is used in situations where electricity supply is interrupted or as a primary source of power supply where power is unavailable. -
Page 4: Safety Precautions
Safety Precautions Danger: Use outdoors only, exhaust gas Danger: Do not connect the released from the equipment contains Carbon generator unit with mains supply or other Monoxide (CO), which cannot be seen or smelt. power sources , use it alone. Excessive inhalation of CO may cause a loss of consciousness and may claim life in extreme circumstances. -
Page 5: Safety Specification
Safety Specification Danger: Electrocution hazard - Electricity can cause DEATH or SERIOUS INJURY DO NOT use bare wire to connect power supply to electrical equipment, use a plug that meets local regulations. During generator operation, do not touch exposed wires. ... -
Page 6: Safety Regulation
Safety Regulations There is the warning decal on the machine to remind you of the safety regulations. -
Page 7: Warning Labels
Warning Labels Some of following symbols are used in the machine or the manual. To understand their meanings will make it easy and safe for you in operation. Symbol Name Meaning Volt Voltage Unit Ampere Current Unit Hertz Frequency Unit (1Hz=60 r/min) Watt Power Unit Revolution Per Minute... -
Page 8: Product Specifications
Product Specifications Model P10000LE Frequency 50hZ 220V – 240V Voltage Power Factor Rated Power 7500W Max Power 8300W Fuel Tank Capacity Engine Type 4 Stroke Air Cooled Single Cylinder OHV Oil Capacity 1.1L Starting Method Electric / Recoil Displacement 457cc... -
Page 9: Component Identification
Component Identifaction Fuel tank Oil tank cap Control Panel AC Circuit Breaker AC output Chock valve Fuel Valve Engine Air filter switch Recoil Starter Grip Wheel Handle & Grips Oil drain Plug Spark plug Carburetor Cylinder head Muffler... -
Page 10: Features
Features KNOW YOUR GENERATOR GROUND TERMINAL The safe use of this generator requires an The ground terminal is used to assist in understanding of the information provided inthis operator’s manual as well as a properly grounding the generator to help knowledge of the project you are attempting. -
Page 11: Operating Guide
Operating Guide The operational steps are pasted above the fuel Fill fuel oil tank, . please operate as per the instructions. Do Not exceed this level Open the fuel fill cap and fill with fresh Unleaded petrol. Unit grounding The fuel level position will be displayed on the indicator opposite the fuel cap. -
Page 12: Operating
Operation Starting the Engine start and can be started by turning the switch 1. Unplug all loads from the generator. around to the START position. In order to extend the service life of the battery, do not turn the switch for more than 3 seconds and the interval between two attempts should be at least 10 seconds apart. - Page 13 Operation Stopping the Engine 1. Remove any load from the generator. 2. Turn the engine switch to the OFF position. The unit should be stored in a clean and dry place and should be protected from rain and high temperature. Covering the unit is recommended to avoid excessive exposure to moisture and dust.
-
Page 14: Power Management
Power Management Electric equipment Rated power(W) Starting power(W) Flat panel television 27" Energy saving lamp 5~50 5~50 Electric cooker 1000 1000 Computer Household Appliances Refrigerator 1600 Washing machine Electric fan Air-conditioner 2HP 1500 3000 Electric welder 2500 5000 Tools Electric hammer 1000 1500 Water pump... -
Page 15: Maintenance
Maintenance Regular maintenance is the best guarantee of safe, economical and fault-free operation, and can also contributes to environmental protection. Maintenance schedule is as follows- Please carry out the recommended maintenance at the earlier of the stated hours or elapsed time. Every Every 20 Every 50... - Page 16 Maintenance Clean the air filter Foam filter element Air filter element Bolt Air filter cover The air cleaner system uses a foam element that can be washed and reused. 1. Open the cover with the lock nut and remove the foam air filter element. 2.
- Page 17 Maintenance Clean the spark plug Recommended spark plug models: NGK: BPR7ES. Champion RN7YC. Spark plug socket spanner Spark plug cap 1 Remove the spark plug cap. 2 Clean the spark plug base. 3 Remove the spark plug with the spark plug socket spanner. 4 Inspect the spark plug insulator visually for damage.
-
Page 18: Trouble Shooting Guide
Trouble Shooting Fault Cause Action No fuel Fill the oil tank with petrol The Fuel valve is not turned Turn the fuel valve to ON The Fuel valve is blocked Clean the fuel bowl (refer to page 16) The unit can not No engine oil or the engine start Add oil... -
Page 19: Recycling & Product Disposal
Trouble Shooting 1. We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) and batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine, you must take it to your local Civic Amenity Site. -
Page 20: Declaration Of Conformity
Trouble Shooting Genpower Ltd confirms that these P1PE products conform to the following CE directives. 97/68/EC Non Road Mobile Machinery Directive 2000/14/EC Outdoor Noise Directive 2004/108/EC Electro Magnetic Compatibility Device 2006/42/EC Machinery Directive P10000LE 7.5kW OND-2016508-04-02 P10000LE 72dB 72dB 06 March 2018... -
Page 21: Contact Details
Trouble Shooting Postal Address Genpower Limited London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK Telephone +44 (0) 1646 687880 +44 (0) 1646 686198 Website www.p1pe.co.uk To register your machine for the manufacturer’s warranty, please visit: http://www.p1pe.co.uk/warranty... - Page 28 P1PE – Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. UK www.p1pe.co.uk...
