Summary of Contents for PureLink PureTools PT-HDADM

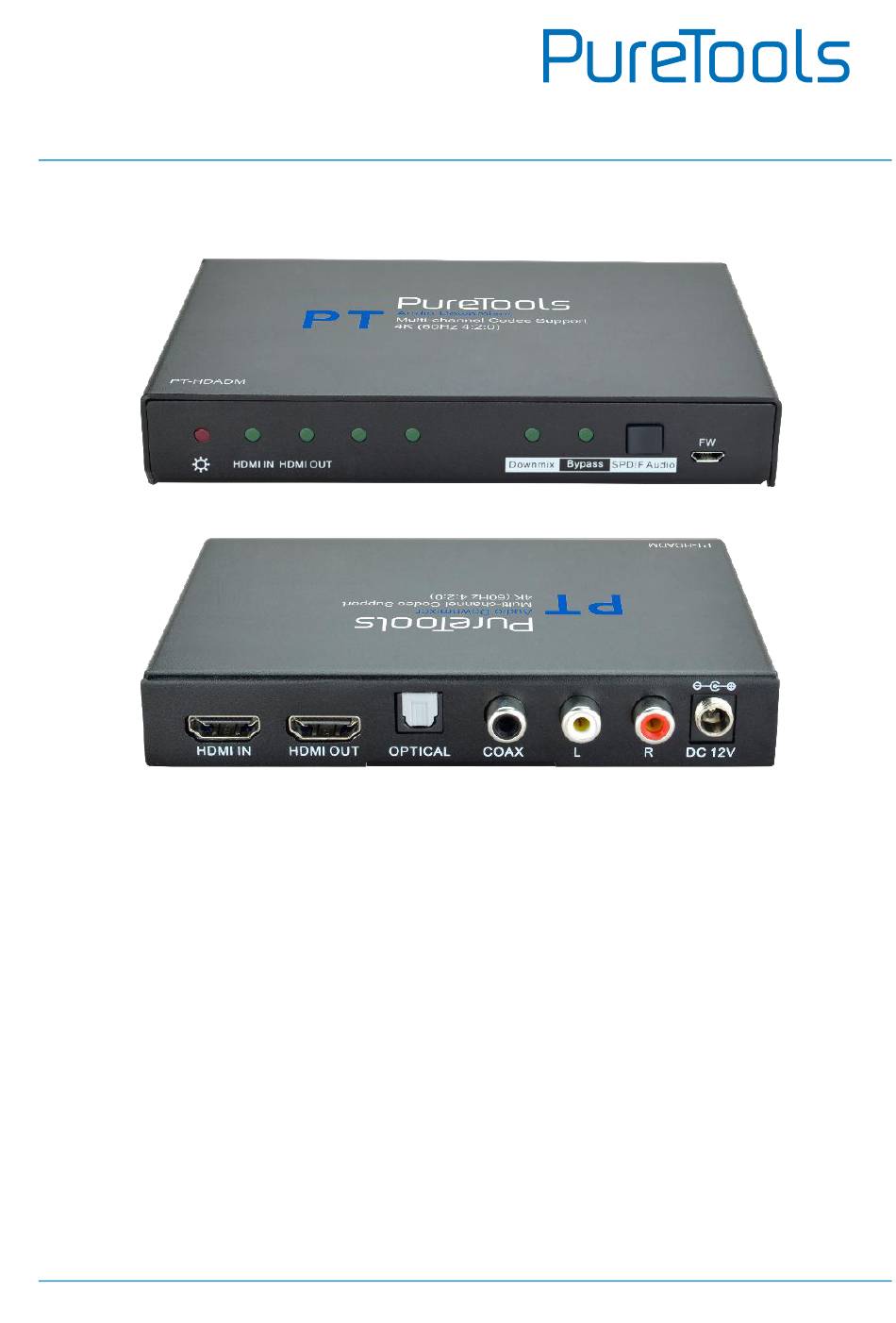

- Page 1 User Manual PT-HDADM User Manual Audio Downmixer with Multi-channel Codec Support Model PT-HDADM Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
- Page 2 User Manual PT-HDADM Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make changes in functions or parameters without prior notice or obligation.
- Page 3 PT-HDADM REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDADM complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDADM complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDADM SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment. ...
-
Page 5: Table Of Contents
User Manual PT-HDADM Contents 1. Introduction ..........................1 1.1 Introduction to PT-HDADM .................... 1 1.2 Features ..........................1 1.3 Packing List ........................2 2. Panel Description ........................3 2.1 Front Panel ......................... 3 2.2 Rear Panel .......................... 4 3. System Connection ........................5 3.1 Usage Precautions ...................... -
Page 6: Introduction
User Manual PT-HDADM 1. Introduction 1.1 Introduction to PT-HDADM This PT-HDADM is an audio converter used to extract the encoded multi-channel LPCM from HDMI sources to optical audio output and decode to 2 CHs analog stereo audio via RCA (L/R) and COAX outputs without any other external equipment. Content from multi-channel sources such as Blu-ray players, set-top boxes and game consoles can be distributed to multi-channel and two-channel-capable zones simultaneously, ensuring compatibility, reducing system complexity and eliminating... -
Page 7: Packing List
User Manual PT-HDADM 1.3 Packing List 1 x PT-HDADM HDMI Audio Decoder 2 x Mounting ears（with 2 screws） 4 x Plastic cushions 1 x Power adapter (DC 12V 1A) 1 x User manual Note ： Please confirm if the product and the accessories are all included, if not, please contact your distributor. -
Page 8: Panel Description
User Manual PT-HDADM 2. Panel Description 2.1 Front Panel Bypass HDMI IN HDMI OUT Downmix SPDIF Audio Name Description ① Power LED Turns red when DC power present. ② HDMI IN Activity LED Green when HDMI signal input. ③ HDMI OUT Activity LED Green when HDMI signal output. -
Page 9: Rear Panel
User Manual PT-HDADM 2.2 Rear Panel HDMI IN HDMI OUT OPTICAL COAX DC 12V Name Description ① HDMI IN HDMI signal input. ② HDMI OUT HDMI signal output. ③ OPTICAL Optical audio output. ④ COAX Coaxial audio output. ⑤ RCA (L/R) audio output. ⑥... -
Page 10: System Connection
User Manual PT-HDADM 3. System Connection 3.1 Usage Precautions System should be installed in a clean environment, preferably at ambient temperature or within given working temperature range (see page 7 for limits). All of the power switches, plugs, sockets and power cords should be insulated. ... -
Page 11: Connection Procedure
User Manual PT-HDADM 3.3 Connection Procedure In the living room: Step1. Connect a HDMI source (Blu-Ray) to HDMI input port of the HDBaseT Matrix with HDMI cable. Step2. Connect the HDMI output of HDBaseT Matrix to the HDMI IN port of the PT-HDADM with HDMI cable. -
Page 12: Specification
User Manual PT-HDADM 4. Specification Input & Output (1) HDMI Input Signal (1) Type A Receptacle Input Connector (1) HDMI; (1) OPTICAL; (1) COAX; (1) L/R; Output Signal (1) Type A Receptacle; (1) Toslink Receptacle; OUTPUT Connector (1) Black RCA Receptacle; (1) Red & White RCA Receptacle;... -
Page 13: Panel Drawing
User Manual PT-HDADM 5. Panel Drawing HDMI IN HDMI OUT OPTICAL COAX DC 12V Audio Downmixer Multi-channel Codec Support 4K (60Hz 4:2:0) PT-HDADM 132 mm Bypass HDMI IN HDMI OUT Downmix SPDIF Audio... -
Page 14: Troubleshooting & Maintenance
User Manual PT-HDADM 6. Troubleshooting & Maintenance Problems Potential Causes Solutions Incorrect setting on the Check the display’s setting Output images in display display show with Try another high quality ghost A cable of bad quality connection cable Check with oscilloscope or No signal at the input / multimeter if there is any output end... -
Page 15: After-Sales Service
User Manual PT-HDADM 7. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 16 Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
