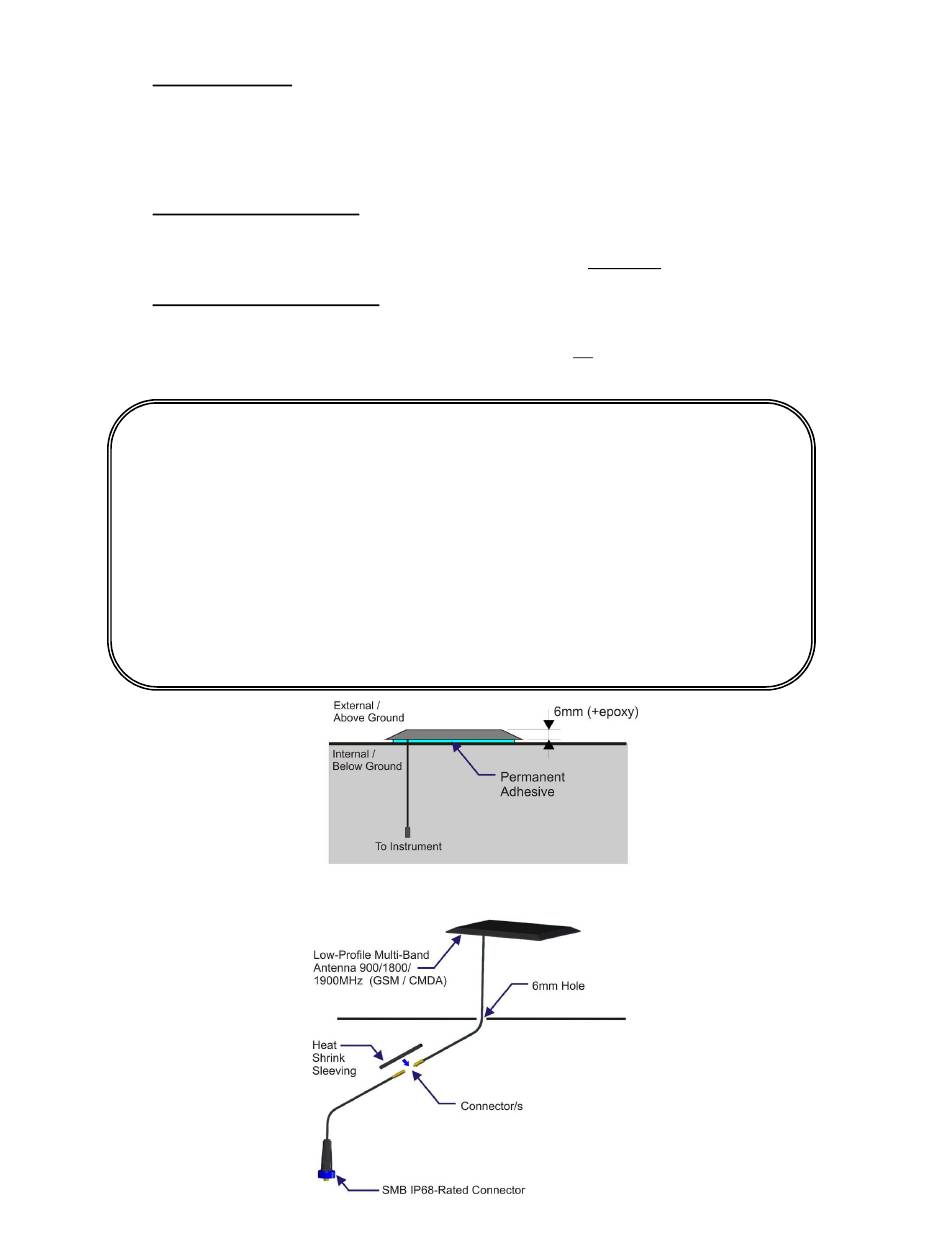

ODALOG SURFACE MOUNT ANTENNA – INSTALLATION GUIDE
Package Contents:
1.
OdaLog® Surface-Mount Antenna kit (PN: 11-2001), Consisting of:
OdaLog Surface-Mount Antenna
•
OdaLog Antenna Plug w/lead (total cable length 3.5metres)
•
Heatshrink (for sealing cable joiner connectors)
•
Installation Guide (this document)
•
Recommended Accessories - SOLD SEPERATELY (or equivalent approved epoxy):
Megapoxy™ kit permanent adhesive kit (PN: 11-0070, one-time application)
•
Suitable to bond to metal, concrete/bitumen and some plastic surfaces: Part A/B
30ml syringes, mixing stick, gloves (latex or PVC - NOT nitrile)
Required Tools (not provided):
1.
Electric / Battery drill
2.
6mm drill bit (suitable for mounting material, e.g. metal, concrete etc...)
3.
Mixing bowl or cup (disposable, e.g. plastic – polystyrene not suitable)
4.
Marking Pen – Felt-Tip Marker or White-out correction pen
5.
Heat Gun (portable if mains power not available on location)
When installing the OdaLog Surface-Mount antenna, it is a customer responsibility to strictly
adhere to all Local Laws, Regulations and Occupational Health and Safety precautions. Caution is
to be given when installing in a publically-accessibly area, that duty of care, requirements and
consideration for the location surroundings (e.g. vehicles, pedestrians, frequency of use).
®
The OdaLog
Surface-Mount Antenna Kit is sold subject to our standard terms and conditions of
sale and any written warranty given by App-Tek. App-Tek does not accept any other liability
either directly or indirectly for any losses suffered in connection with the use and application of
®
the OdaLog
Surface-Mount Antenna Kit, whether or not in accordance with any advice,
specification, recommendation or information given by it or as a result of any errors or omissions
in this Installation Guide.
10-2003, OdaLog Surface-Mount Antenna Installation Guide
WARNING
GENERAL DISCLAIMER
Revision: 1 ,
31/05/2010
Advertisement
Table of Contents
Summary of Contents for App-Tek OdaLog Surface-Mount Antenna
- Page 1 Surface-Mount Antenna Kit is sold subject to our standard terms and conditions of sale and any written warranty given by App-Tek. App-Tek does not accept any other liability either directly or indirectly for any losses suffered in connection with the use and application of ®...
- Page 2 If appearance is important, you may wish to use some wide packaging tape to mask near the marked outline. Later in process, when epoxy starts to set, use a disposable blade to separate the epoxy, and remove the masking (with excess epoxy attached). 10-2003, OdaLog Surface-Mount Antenna Installation Guide Revision: 1 , 31/05/2010...
- Page 3 Once satisfied with location, apply even pressure to the top surface until the epoxy squeezes out past each edge/corner of the antenna, being sure not to squeeze all of the epoxy out (needs to be an epoxy thickness 1-2mm to function correctly). 10-2003, OdaLog Surface-Mount Antenna Installation Guide Revision: 1 , 31/05/2010...
- Page 4 OdaLog RTx instrument and secure in desired location. Secure any excess cable and check all connections are fitted correctly, test communications with OdaLog Instrument before leaving location. 10-2003, OdaLog Surface-Mount Antenna Installation Guide Revision: 1 , 31/05/2010...
