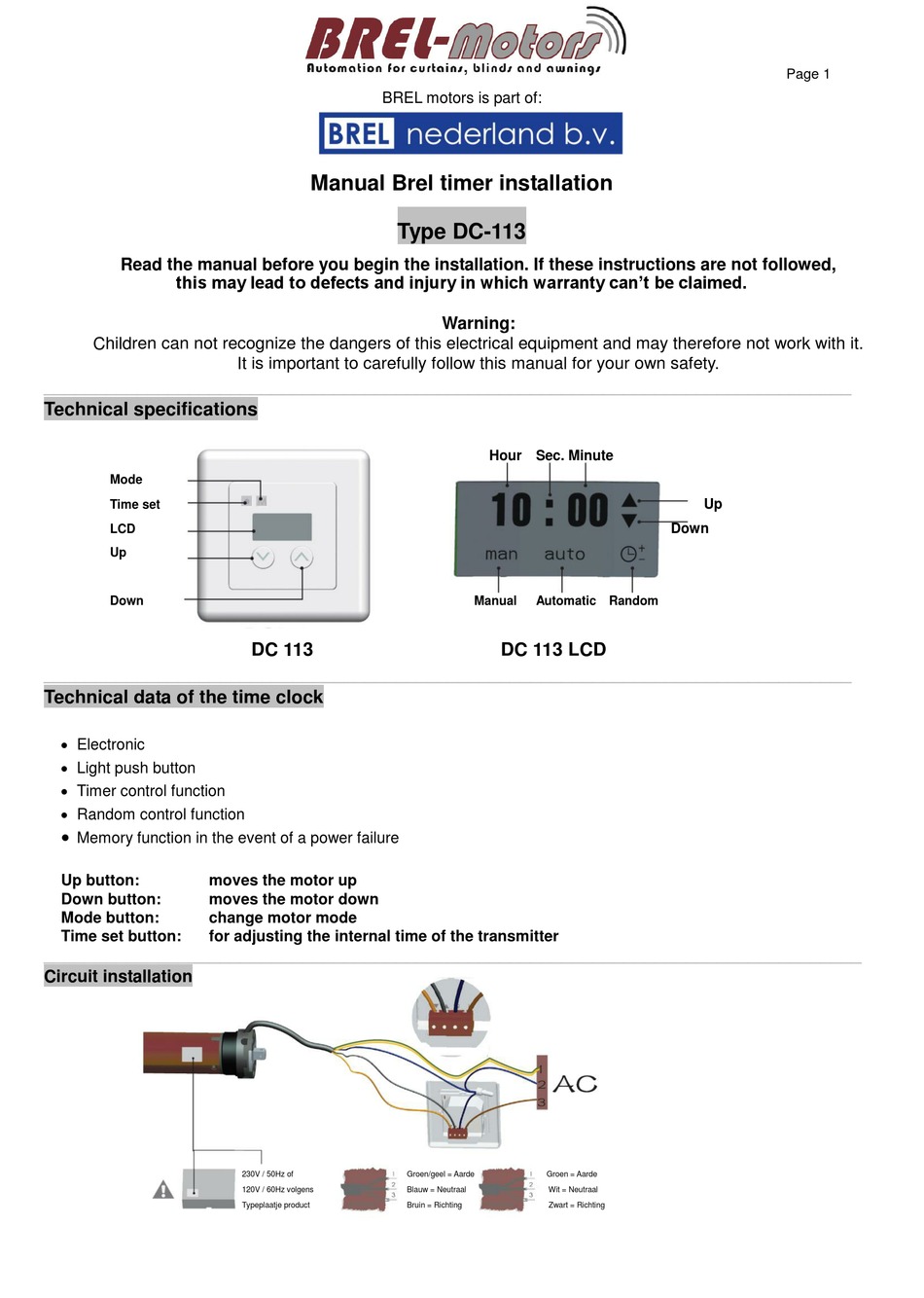

brel-motors DC-113 Manual Brel Timer Installation

Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
Children can not recognize the dangers of this electrical equipment and may therefore not work with it.
______________________________________________________________________________

Technical specifications

Mode
Time set
LCD
Up
Down
______________________________________________________________________________

Technical data of the time clock

 Electronic
 Light push button
 Timer control function
 Random control function

Memory function in the event of a power failure
Up button: moves the motor up
Down button: moves the motor down
Mode button: change motor mode
Time set button: for adjusting the internal time of the transmitter
_______________________________________________________________________________

Circuit installation

BREL motors is part of:
Manual Brel timer installation
Type DC-113
It is important to carefully follow this manual for your own safety.
DC 113
230V / 50Hz of Groen/geel = Aarde
120V / 60Hz volgens Blauw = Neutraal
Typeplaatje product Bruin = Richting
Warning:
Hour Sec. Minute
Manual Automatic Random
DC 113 LCD
Groen = Aarde
Wit = Neutraal
Zwart = Richting
Page 1
Up
Down
