Summary of Contents for FieldBee RTK

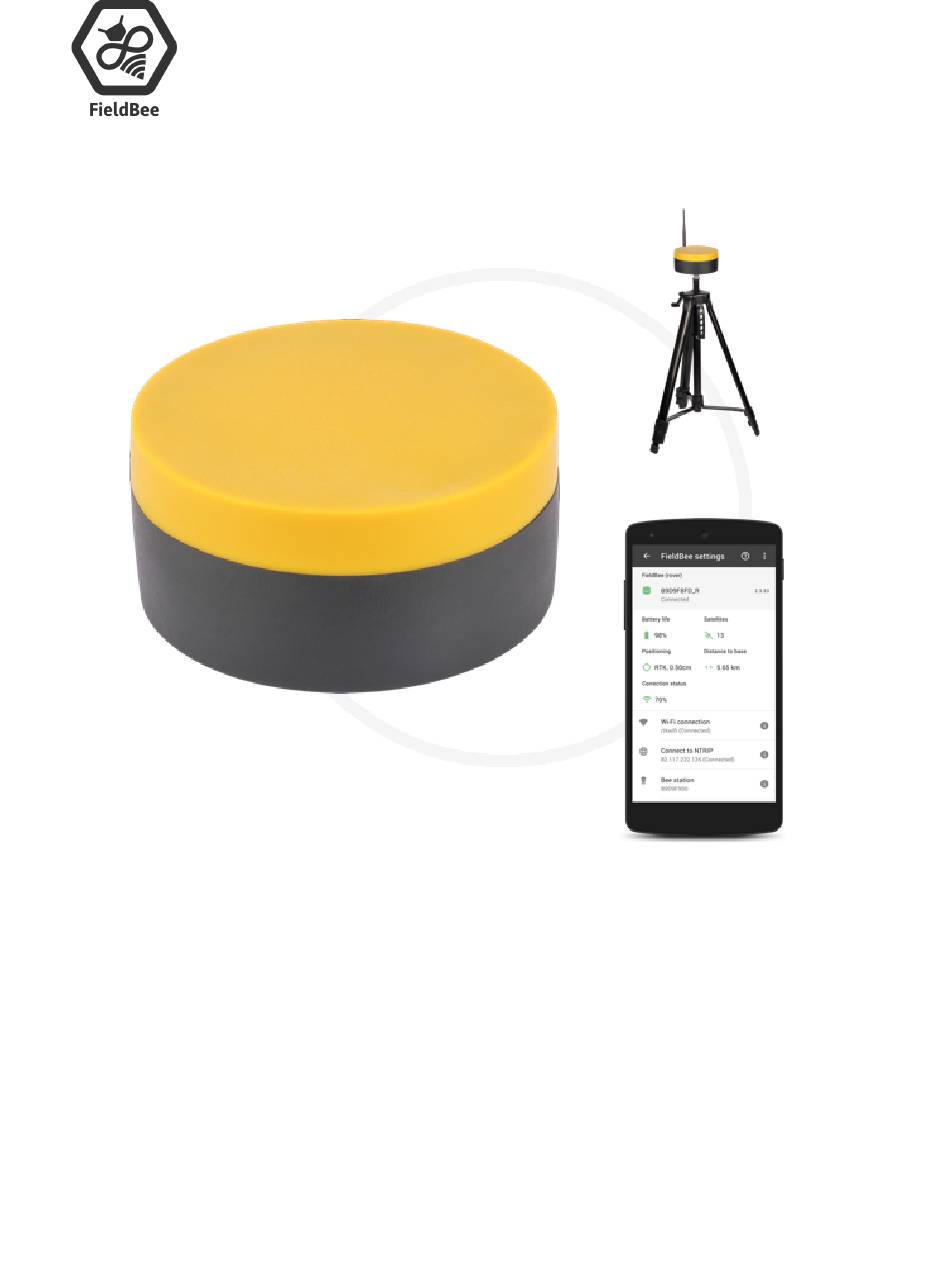

- Page 1 Laan van Kronenburg 14, Tel: +31 208 932047 Email: info@fieldbee.com 1183 AS Amstelveen, Website: fieldbee.com the Netherlands User Manual FieldBee RTK GNSS system ...
-
Page 2: Table Of Contents
Menu Controls and Indicators FieldBee GNSS receiver Standalone sensor without any correction services Standalone sensor with correction from local NTRIP provider FieldBee RTK GPS system FieldBee RTK base station+FieldBee GNSS receiver FieldBee adjustment FieldBee base station adjustment Base station modes Base survey mode... -
Page 3: Introduction
FieldBee toolbox manual v.1.0 Introduction Welcome to the FieldBee RTK GPS system User Guide. This manual describes how to install, set up, and use the FieldBee GNSS receiver and FieldBee RTK base station with android toolbox application . Technical assistance ... -
Page 4: Menu Controls And Indicators
Battery level Amount of satellites which is used for defining location Current estimation of accuracy. Distance between FieldBee GNSS and FieldBee RTK base station For base station status transmitting correction, for rover status of receiving correction over radio or over internet Help Advanced menu for adjustment fieldbee. -
Page 5: Fieldbee Gnss Receiver
FieldBee GNSS receiver without any correction services is not required specific steps for set up. Only need to locate FieldBee receiver in the middle of the tractor’s roof ( if it is possible)* and turn it on (by pressing the power button or plugging in charging cable to receiver and cigarette lighter). - Page 6 ● be set up to the active account at local NTRIP provider. You can connect FieldBee receiver to any 2,4 GHz Wi-Fi networks or mobile Hotspot, enabled from device which is not using for FieldBee setup. 5G networks are not available for RTK correction reception.
- Page 7 FieldBee toolbox manual v.1.0 fig.2.1 fig.2.2 fig.2.3 fig.2.4 fig.2.5 fig.2.6...
- Page 8 9) input name; (fig.3.9) 10) input password; (fig.3.10) 11) tap Connect button; (fig.3.11) 12) allow to turn off WiFi network while using hotspot; (fig.3.7) 13) *wait until FieldBee will become connected to hotspot network (fig.3.12) FieldBee is connected to hotspot network. (fig.3.13, fig.3.14)
- Page 9 FieldBee toolbox manual v.1.0 fig3.1 fig.3.2 fig.3.3 fig.3.4 fig.3.5 fig.3.6...
- Page 10 FieldBee toolbox manual v.1.0 fig3.7 fig.3.8 fig.3.9 fig3.10 fig.3.11 fig.3.12...
- Page 11 Tap NTRIP profile to apply this settings. (fig.4.6, fig.4.7) NTRIP profile has been applied. (fig.4.8) Wait until FieldBee receiver will be connected to NTRIP network. (fig.4.9) Login and password are attached into registration confirmation email from NTRIP provider. # It takes 1 minute to reconneсt WiFi source and get connection to NTRIP correction stream.
- Page 12 FieldBee toolbox manual v.1.0 fig.4.1 fig.4.2 fig.4.3 fig.4.4 fig.4.5 fig.4.6...
-
Page 13: Fieldbee Rtk Gps System
FieldBee RTK base station+FieldBee GNSS receiver With the FieldBee RTK-GPS system you will be able to reach an exceptional accuracy of 0-4 cm. No need to pay extra charges for RTK correction signal, you will receive your own base station that provides correction. You can connect an unlimited number of antennas to the FieldBee RTK base station. - Page 14 !Factory settings for FieldBee has active Radio mode. After turning on antennas you should receive accuracy >1 meter for the GPS (Normal) or DGPS fix and 15-20 satellites. After few minutes -fix type will change to Float RTK and then RTK.
- Page 15 FieldBee toolbox manual v.1.0 3) choose Base station; (fig.1.1) 4) tap Base station serial number to continue setup; (fig.5.1) 5) tap Wi-Fi connection; (fig.5.2) 6) tap on available Wi-Fi network; (fig.5.3) 7) input password for this network (fig.5.4) 8) tap Connect button; (fig.5.5) wait until Base station will be connected to Wi-Fi network.
- Page 16 5) Tap Connect button to apply. (fig.6.4) Base is added to the list 6) Tap on Base serial number to apply connection (fig.6.5) 7) FieldBee GNSS Receiver is connected to Base station (fig.6.6) 8) FieldBee GNSS Receiver has RTK correction (fig.6.7)
- Page 17 FieldBee toolbox manual v.1.0 fig.6.1 fig.6.2 fig.6.3 fig.6.4 fig.6.5 fig.6.6...
-
Page 18: Fieldbee Adjustment
FieldBee adjustment FieldBee base station adjustment FieldBee base station provide 0-4 cm accuracy for receiver. Such accuracy is achieved by streaming correction to receiver. Base station needs satellites reception ( to be located at wide open area and have horizon line without obstacles. -
Page 19: Status/Summary
If not, follow the next steps: ○ locate FieldBee GNSS Receiver at the spot where base station will be located; ○ connect FieldBee GNSS Receiver to local NTRIP network (see chapter ... -
Page 20: Radio Channel And Region
Version for MCU, GNSS, Wi-Fi display current version for each module. Radio channel and region To get RTK correction via radio channel base station and receiver should have the same radio channel and region. To edit radio channel follow next steps: A. -
Page 21: Constellation Mask
Feeder mountpoint for your Base station Feeder login : first 4 symbols of Base station serial number Feeder password: last 4 symbols of Base station serial number Firmware update Contact your dealer or our support to know does your FieldBee need to be updated. -
Page 22: Profiles
You can reset FieldBee modules separately without manual restarting antenna. If you have no physical chance to restart antenna ( FieldBee is located at the roof or other place without possibility to restart it manually) - Choose MCU and apply to restart FieldBee. -
Page 23: Set Correction Mode
Wi-Fi/Radio mixed mode needs to be enabled if base station is located in 2km range and there might be places without GSM coverage at the field. So FieldBee will automatically switch between radio and internet reception channel. To switch correction mode: 1) open FieldBee receiver setup Main Menu;... - Page 24 FieldBee toolbox manual v.1.0 4) tap Save button; (fig.9.2) 5) follow described steps to restart FieldBee receiver; (fig.9.3) 6) correction mode has been set successfully; (fig.9.4, fig.9.5) 7) wait for a while to receive correction.(fig.9.6, fig.9.7) fig.9.1 fig.9.2 fig.9.3 fig.9.4 fig.9.5...
-
Page 25: Status/Summary
(30cm -1m) ○ FRTK - FieldBee receiver has received correction ( 5-30cm) ○ RTK- FieldBee receiver has RTK Fix accuracy ( 1-4 cm) ● LoRa RSSI ( R eceived Signal Strength Indication) indicates how good is received radio signal. -
Page 26: Radio Channel And Region
FieldBee toolbox manual v.1.0 ○ Connected - FieldBee receiver is connected to Wi-Fi Network ○ Connected_NTRIP - - FieldBee receiver is connected to NTRIP network via Wi-Fi. ● Wi-Fi RSSI: displays Wi-Fi network power level. ● Fix Status : display current satellites amount is use, GNSS Status and RMS (value for accuracy in cm) ●... -
Page 27: Profiles
You can reset FieldBee modules separately without manual restarting antenna. If you have no physical chance to restart antenna ( FieldBee is located at the roof or other place without possibility to restart it manually) - Choose MCU and apply to restart FieldBee. - Page 28 In order to set-up/start working with FieldBee, you will need to connect your Android device to FieldBee via Bluetooth. Please check if FieldBee is fully charged and turned on (by pushing power button or plug in power cable). If FieldBee has been turned on, then restart, and refresh the searching list.
- Page 29 Why is there no RTK correction for my FieldBee? If you have a FieldBee Base station at a distance of less than 10 km – please check the FieldBee settings and Base station settings (connection to Wi-Fi, if base station is correctly selected).
