General
Example:
Power supply
Options for power supply:
AC / Alternating voltage: 100 – 240VAC, 50 / 60Hz
DC / Direct voltage: 24VDC
ConvBox
User Manual

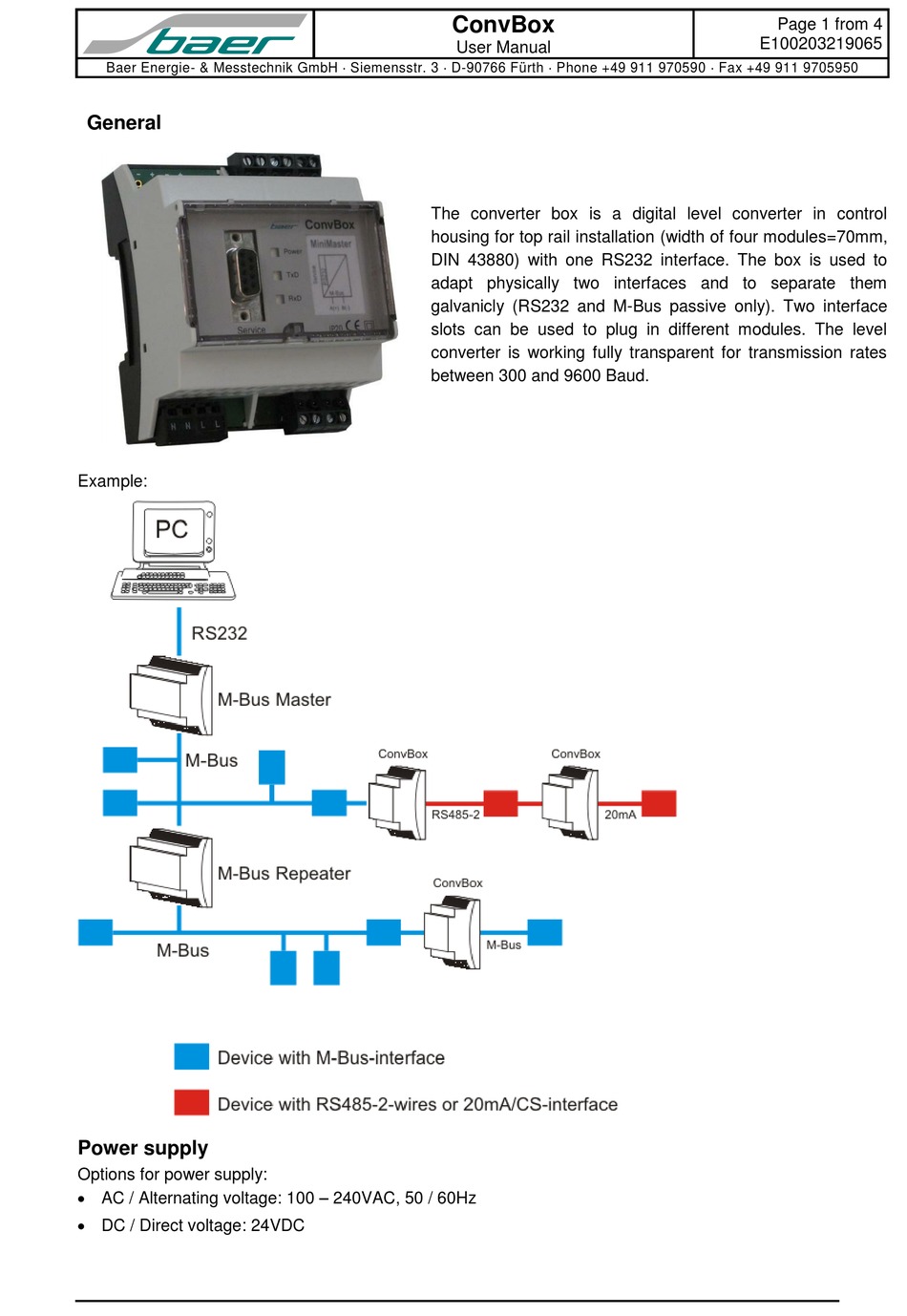

The converter box is a digital level converter in control
housing for top rail installation (width of four modules=70mm,
DIN 43880) with one RS232 interface. The box is used to
adapt physically two interfaces and to separate them
galvanicly (RS232 and M-Bus passive only). Two interface
slots can be used to plug in different modules. The level
converter is working fully transparent for transmission rates
between 300 and 9600 Baud.
Page 1 from 4
E100203219065
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Baer ConvBox
Summary of Contents for Baer ConvBox
-
Page 1: Power Supply
Page 1 from 4 E100203219065 User Manual Baer Energie- & Messtechnik GmbH Siemensstr. 3 D-90766 Fürth Phone +49 911 970590 Fax +49 911 9705950 General The converter box is a digital level converter in control housing for top rail installation (width of four modules=70mm, DIN 43880) with one RS232 interface. - Page 2 E100203219065 User Manual Baer Energie- & Messtechnik GmbH Siemensstr. 3 D-90766 Fürth Phone +49 911 970590 Fax +49 911 9705950 Interfaces Two interface slots can be used to plug in the following exchangeable modules as required: ...
- Page 3 ConvBox Page 3 from 4 E100203219065 User Manual Baer Energie- & Messtechnik GmbH Siemensstr. 3 D-90766 Fürth Phone +49 911 970590 Fax +49 911 9705950 Terminal assignment Terminal Description Neutral conductor Line (110VAC – 240VAC) −...
-
Page 4: Technical Data
Page 4 from 4 E100203219065 User Manual Baer Energie- & Messtechnik GmbH Siemensstr. 3 D-90766 Fürth Phone +49 911 970590 Fax +49 911 9705950 Technical Data: Housing: Control housing for top hat rail installation (DIN 43880)
