CDMA Fixed wireless telephone

User Guide

Model: ZLT S500

Read this manual carefully before operating the instrument.

Ver 1.1

Table of Contents

Need help?

Do you have a question about the ZLT S500 and is the answer not in the manual?

Questions and answers

Summary of Contents for YINGXIN ZLT S500

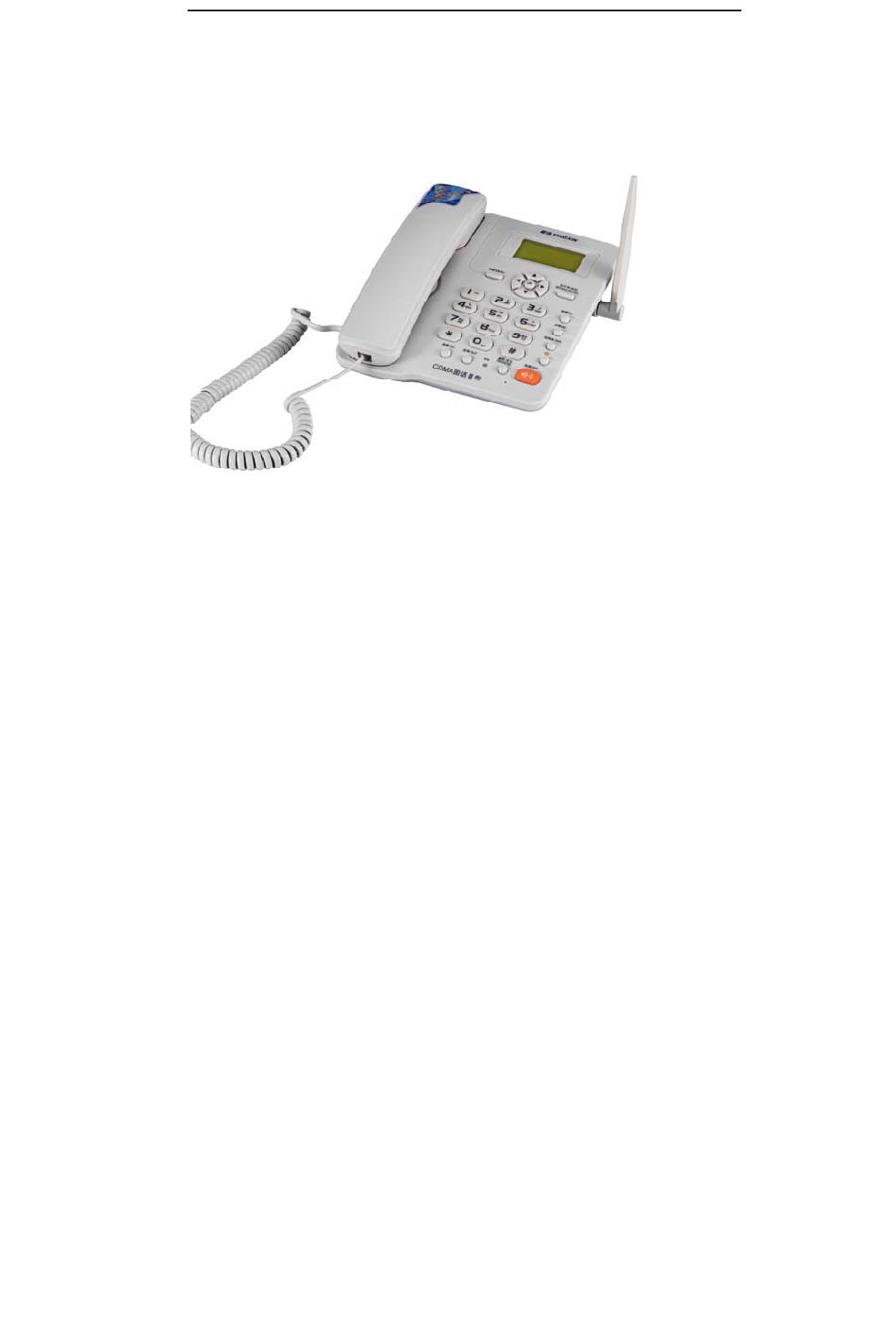

Page 1 CDMA Fixed wireless telephone User Guide Model: ZLT S500 Read this manual carefully before operating the instrument. Ver 1.1...
Page 2: Table Of Contents
CONTENTS INTRODUCTION...................4 IMPORTANT INFORMATION............5 DO’S & DON’TS..................6 VIEWS .....................8 PHONE FUNCTIONS AND FEATURES ..........9 INSTALLATION ..................13 BASIC OPERATIONS .................14 MENU FUNCTION ................14 ................14 TRUCTURE DATA SERVICES (OPTIONAL) ............22 CREAT INTERNET CONNECTION ..........24...
Page 3 APPENDIX A: TEXT INPUT METHOD GUIDE......37 APPENDIX B: PRODUCT SPECIFICATION........37 APPENDIX C: CHARGER SPECIFICATION .........38 APPENDIX D: PACKING LIST ............38...
Page 4: Introduction
Introduction Congratulations on your purchase of the ZLT S500 Cellular CDMA2000-1X Wireless Phone (Hereinafter referred to as Phone). The Phone has been designed to operate with the latest digital communication technology, Code Division Multiple Access (CDMA). The CDMA technology has...
Page 5: Important Information
IMPORTANT INFORMATION This user guide provides information on the use and operation of your phone. Kindly read all the information contained in this user guide carefully prior to using the phone. This will help you in getting the best performance and shall prevent any unintended damage to the phone.
Page 6: Do's & Don'ts
Do’s & Don’ts • Do not clean the phone while in operation. Before attempting to clean the Phone, turn the Phone off, disconnect the external power adapter and take out the battery or disconnect the external power supply if used. Before moving the Phone, disconnect the external power adapter or power supply in use.
Page 7 • Do not touch the plug with wet hands. Always grasp and pull the plug, not the cord. Do not put heavy things on the power cord or bend it too much. • Do not take out the backup battery without the guide of qualified service personnel.
Page 8: Views
Views Phone: (1)The Base Instrument, (2)Handset, (3)Handset Cord, (4) Indoor Antenna Note: The legends on picture shown may not be same as per the actual model.
Page 9: Phone Functions And Features
Phone Functions and Features Your phone provides following functions and features High Quality Voice Services • Making calls, receiving calls, auto answering and recording. • Vocoder 13K QCLELP, 8K EVRC • Handsfree Operation Short Message Service (SMS) • SMS in English: supports write, read, send, receive, delete, reply and forward.
Page 10 Phone Description TOP VIEW OF THE PHONE 1) UP/DOWN Keys IN-USE Indicator 3) RIGHT(BOOK) Key OK/SELECT Key 5) SMS Key CANCEL Key 7) END Key HANDSFREE Key 9) RD/SEND Key POWER ON/OFF Key 11) ALPHANUMERIC Keys 12) LEFT(MENU) Key 13) Hook Switch Handset Retaining Clip 15) LCD Display...
Page 11 Back Panel View 1) Charger port BOTTOM VIEW OF THE PHONE 1) Internal Battery Cover...
Page 12 LCD Display Icon Describe Digital Mode Indicator The icon will be displayed when the phone is in digital mode. Received Signal Strength Indicator (RSSI) Call Connected Indicator,It will be displayed when the phone is calling. It will be displayed when the phone is in roaming area. Message Indicator This icon will be displayed when the phone is set to voice call mode.
Page 13: Installation
Installation The following steps should be followed carefully in order to guarantee proper operation of the phone. Step1: Check the components as per the packing list. Step2: Placing the Phone • Place the phone on a stable flat and secure surface (Table, Desk etc).
Page 14: Basic Operations
BASIC OPERATIONS Menu Function User can press [Left] (No. 13 in Figure page 10) key to access the phone menu in idle state, use [UP] / [DOWN] (No. 1 in Figure page 10) key or number key [1-9] to select corresponding item, then press [CONFIRM/SELECT] key to enter. User can press [UP] / [DOWN] key to change the value, and select any one value by [ok] key.
Page 15 Level 1 Level 2 Menu Level 3 Menu Level 4 Menu Menu View Contacts New Entry Find Name Groups No Group Family Contacts Friends (Phone Colleagues book) Business Classmates Other Delete All UIM Contacts Phone Contacts Speed Dial Memory Status Messages New Message Inbox...
Page 16 Delete All Memory status Incoming Calls Call History Outgoing Calls Missed Calls Delete Lists Alarm clock Calculator World Clock Tools Stop Watch Game Calender Sounds Ringer In Contacts Settings Not in Contacts Volume Ringer Key Beep Handset Handsfree Alert Minute Beep Call Connect Power On/off Display...
Page 17 Backlight 7 second 15 second 30 second Always off Contrast Hyphen Language Hyphen Security Network Service Call Forward FWD If Busy FWD If No Answer FWD Unreachable FWD Unconditional Call Waiting Phone Info. Phone Number SW Version One key Dial Making a Call Making a Local Call...
Page 18 (Lift the hand set or press the HANDFREE SPK Key) Telephone number -> RD/SEND(left software key) Key Making a STD Call (Lift the hand set or press the HANDFREE Key) Area code -> telephone number -> RD/SEND Key You can clear the last digit by pressing CANCEL Key. If the call is over, hang up or hook on the receiver, and then press END Key to return to the idle state.
Page 19 Subscriber Call Charge Indication Checking the Information during the call The IFWT will show elapsed time and charging unit on the screen during the call. Charging unit function should be provided by network, otherwise it always will show 0. Answering the Call When the phone rings, LCD will display the incoming number.
Page 20 Sending SMS When the phone is in idle-state, press SMS key, then press [down] key to select “1 Message”, the screen is displayed as follows: 1 New Message 2 Inbox 3 Outbox 4 Draftbox 5 Sentbox 6 Delete Msgs 7 Memory Status 8 SMS Settings On selecting “1 New Message”, user can first edit message contents, then select “Next”...
Page 21 New Message 2 Inbox 3 Outbox 4 Draftbox 5 Sentbox 6 Delete Msgs 7 Memory Status 8 SMS Settings On selecting “2 ”, user can read messages received by the phone. Inbox Keyboard lock Keyboard lock function can effectively prevent others from using your fixed words without your permission.
Page 22: Data Services (Optional)
DATA SERVICES (Optional) Definition The Phone provides Data Service and Facsimile Service by connecting to a PC (or Notebook). Before you start installation, please check the minimum configuration required of your PC. Hardware: CPU Pentium 300MHz, 64MB RAM, 2GB hard disk, 1 RS- 232 serial port, 1 USB (ver1.1) port.
Page 23 Hardware Connection USB Communication Cable To access internet data service from this phone, you should purchase the USB communication cables and software driver, which is described below and connect it to a PC. You should install the USB driver software on your PC. 1) Cable connector-USB (to Phone) 2) Cable connector-USB (to PC) Connecting the Phone to a PC through a Serial Communication Cable...
Page 24: Creat Internet Connection
To avoid damage to the phone while making connections, make sure to turn off the Phone before making connection. Phone and PC Connection using serial cable Computer Configuration Modem Driver USB Installation Run the winusbd_2.0.18 ModemDriver \ setup.exe, and the software will automatically install.
Page 25 Step2: Double click the Network and Internet Connections icon...
Page 27 ...and then click the Network Connections icon...
Page 28 Step3: From the Network Tasks list, select Create a new connection. Step4: Click on Next...
Page 30 Step5: Make sure that the option Connect to the internet is active and press Next...
Page 31 Step6: At this point, select Set up my connection manually...
Page 32 Step7: The Connect using a dial-up modem option must be marked. Click on Next.
Page 33 Step8: Type in a name that you wish your connection to be referred as and then press Next.
Page 34 Step9: In the Telephone number field, fill in the number that has been provided to you, according to the connection account type you have with Dialog TelecomI: Phone number: #777 Click on Next.
Page 35 Step10: Type in your username and password in the exact same way they have been provided by Dialog Telecom:(Enter user name and password to connect to the network. The dialling number, user name, password should have been provided by the network service provider.
Page 36 Step11: If you wish to create a shortcut to your desktop, check the: Add a shortcut to this connection to my desktop Press Finish to complete the procedure.
Page 37: Appendix A: Text Input Method Guide
Appendix A: Text Input Method Guide Press [#] key to switch between different text input method: “ABC” for Uppercase letter input, “abc” for lowercase letter input and “123” for number input. Press [*] key to input punctuation. Press [0] key to represent blank in English text input state. Press [0]~[9] key for the letter printed on them.
Page 38: Appendix C: Charger Specification
Appendix C: Charger Specification Item Description Input Voltage AC 90-300V Input Frequency 50/60 Hz Output Voltage 5V DC, 1000mA Appendix D: Packing List • The Base Instrument -1EA- • The Handset -1EA- • The Handset Cord -1EA- • Internal Battery -1EA- •...
Page 39 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 40 SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. Model : ZLT S500 CDMA Fixed wireless telephone Frequency: 800M...
