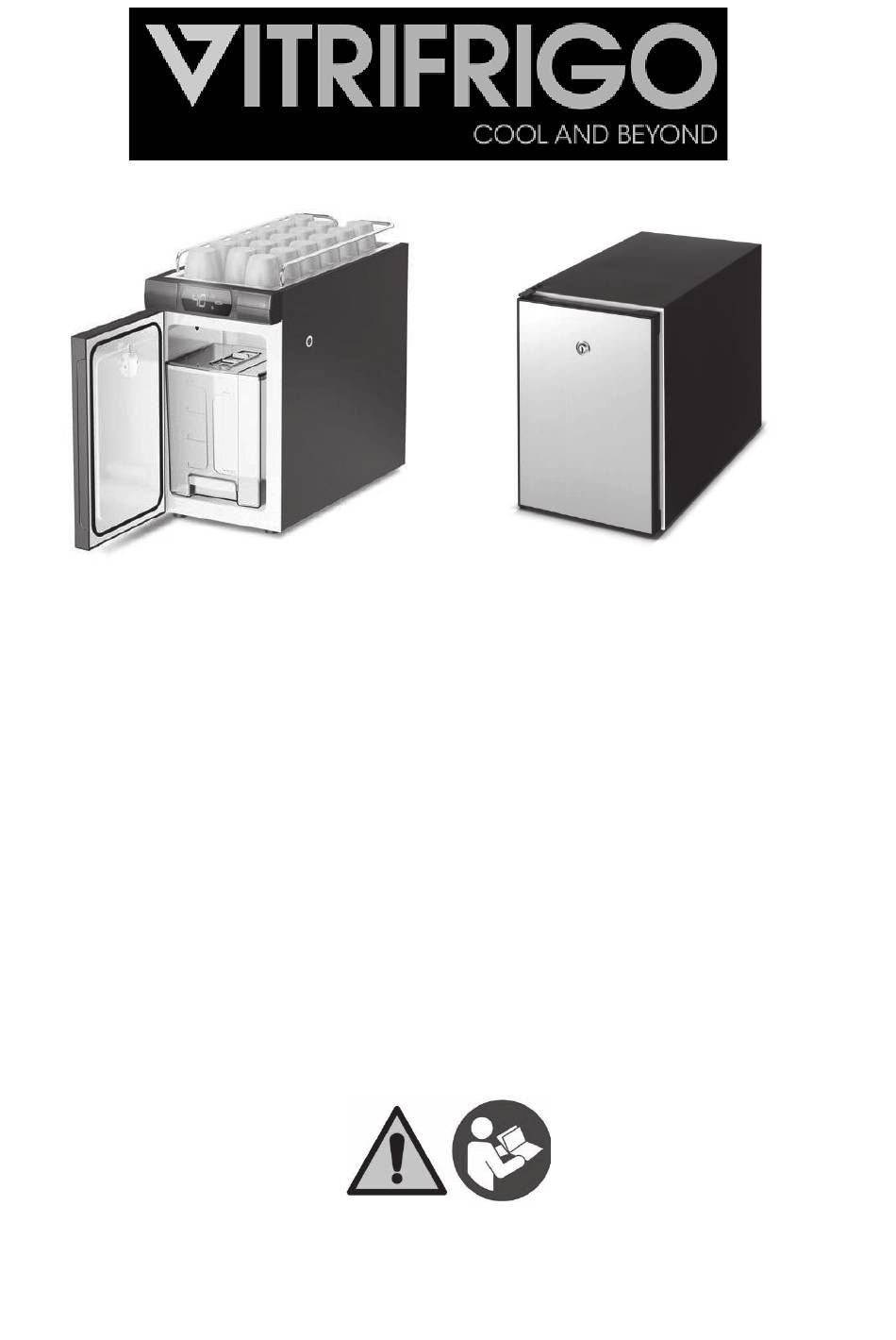

- Page 1 REFRIGERATORS FOR MILK STORAGE INSTALLATION, USE AND SERVICE MANUAL ORIGINAL INSTRUCTION 171064.UNI – rev. 01 10/18...
- Page 2 171064.UNI – rev. 01 10/18...
-
Page 3: Table Of Contents
CONTENTS 1. Purpose of this manual 2. Safety warnings 3. Manufacturer identification 4. Product identification 5. General description 6. Description of operation 7. Installation and use 7.1 Checking the packaging 7.2 Positioning 7.3 Electrical connection 7.4 Use 7.5 Defrosting 7.6 Cleaning and maintenance 7.7 Non-ordinary maintenance and servicing 8. -
Page 4: Purpose Of This Manual
1 Purpose of this manual This manual serves provide instructions useful recommendations for the correct installation, start up, use, maintenance and cleaning of the appliance as well as to point out any residual risks or risks arising from incorrect use. This manual must be considered an integral part of the appliance to which it refers and as such, it needs to be kept with care. - Page 5 Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance. This appliance is intended to be used in household and similar applications such as: –...
- Page 6 If in the refrigerator there is flammable gas (R600a refrigerant), you will find this label on the compressor. In this case, some special precautions must be taken: - place the refrigerator in a well sized ambient. - do not use the refrigerator if it seems to be damaged. - In order to avoid damages on refrigeration circuit, do not use mechanical devices or any other means to accelerate the defrosting process.
- Page 7 wait for the time needed for the appliance to cool down. Always wear suitable personal protective equipment, compliant with current standards, when performing cleaning or maintenance. Pay attention to the heated shelf (present in some models), since in steady conditions, it reaches rather high temperature. The “Electric Shock Hazard”...
-
Page 8: Manufacturer Identification
Manufacturer identification The product referred to in this manual is designed and made by Vitrifrigo s.r.l Via Giuseppe Mazzini 75 – Frazione Montecchio 61022 VALLEFOGLIA(PU) - Italia, Tel. +39 0721 154500 Fax + 39 0721 497739 Mail info@vitrifrigo.com 4 Product identification... -
Page 9: General Description
5 General description The product referred to in this manual is expressly designed to be coupled with coffee machines for guaranteeing the correct storage of milk at a controlled temperature. NOTE: refrigerator has not been designed to cool down the milk from the ambient temperature (or above). -
Page 10: Installation And Use
The internal temperature can be modified using the (mechanical or electronic) thermostat. In some models there are shelves - typically made of stainless steel - heated by heating elements inserted inside them. The temperature of the shelves is generally fixed, and for each shelf there is a safety thermostat, which shut off the heating element in case of overheating. -
Page 11: Positioning
7.2 Positioning Place the refrigerator on a horizontal surface and use the adjustable feet to level it, if needed. When positioning moving the refrigerator, be careful not to roll over or damage the power cord. When choosing the position of the refrigerator, remember that a gap of at least 50 mm (2 in.) is required between the back panel of the refrigerator and any wall in order to allow the warm air from condensation to escape. -
Page 12: Electrical Connection
7.3 Electrical connection The refrigerator is equipped with a IEC connection socket and a main power switch, generally on the back panel. The power cord suitable for the country in which the refrigerator will be used is supplied with the product. NOTE: In some models, the power cord comes out directly from the inside of the refrigerator Before connecting the refrigerator to the main electrical line, make... -
Page 13: Use
7.4 Use The refrigerator has one (or more) hole for ducting the pipe to pick up milk from the container placed inside. NOTE: apply the dedicate transparent cap on the not used holes. The refrigerator must be used only with the provided tank, in any case with closed milk containers. - Page 14 As the thermostat is moved closer to the MAX position, the temperature inside the refrigerator will become lower. NOTE: The refrigerator can operate at lower temperatures than the level obtained by setting the thermostat to MAX by turning the dial clockwise past this setting and as far as it will go.
- Page 15 ON/OFF switching When the refrigerator is switched on, but in standby mode, the thermostat’s display shows alternatively OFF and the inside temperature value. To turn on the refrigerator, hold the button pushed for at least 3 seconds. You will see ON on the display and immediately after the inside temperature value.
- Page 16 7.4.3 Heated shelf for cup warming (if present) Cup warming shelf is connected to a dedicated ON/OFF switch or to the electronic thermostat of the refrigerator. In the first case, push the ON/OFF switch to activate/deactivate the heaters. In the second case, hold the button for 1 second.
-
Page 17: Defrosting
7.4.4 Milk level sensor functioning (if present) The level sensor detects the presence of milk in the container and generates an alarm when the level falls below a certain level (generally between 0.5 l and 1 l) of milk. If the sensor is connected to the digital thermostat, the alarm is displayed by a flashing "AS"... -
Page 18: Cleaning And Maintenance
7.6 Cleaning and maintenance Under the current regulations regarding health and safety, the operator is responsible for the hygiene of food contact materials and must maintain and clean the unit, preventing the bacteria formation. Before performing any cleaning and / or maintenance operation, disconnect the electrical supply to the refrigerator. -
Page 19: Disposal
7.7 Non-ordinary maintenance and service operation Servicing and maintenance operation on the refrigerator must be ensure and performed by qualified service personnel only. Access to the service area is permitted only for persons with knowledge and practical experience with the unit, especially regarding safety and hygiene. -
Page 20: Warranty Claims
Warranty claims The warranty period starts from the date of delivery to the final user. The vendor should always be afforded the opportunity to rectify errors within an appropriate period. Claims that exceed the above terms, in particular damage claims as a result of consequential damage, are excluded to the extent that this is legally permissible. -
Page 21: Troubleshooting
Troubleshooting The following table serves to provide some suggestions concerning the checks to be made in case of incorrect refrigerator operation. If, after completing the suggested checks, the refrigerator is still not operating regularly, contact your nearest assistance service. Problem Probable Cause Solution The refrigerator...
