Summary of Contents for King Canada KC-2748NP

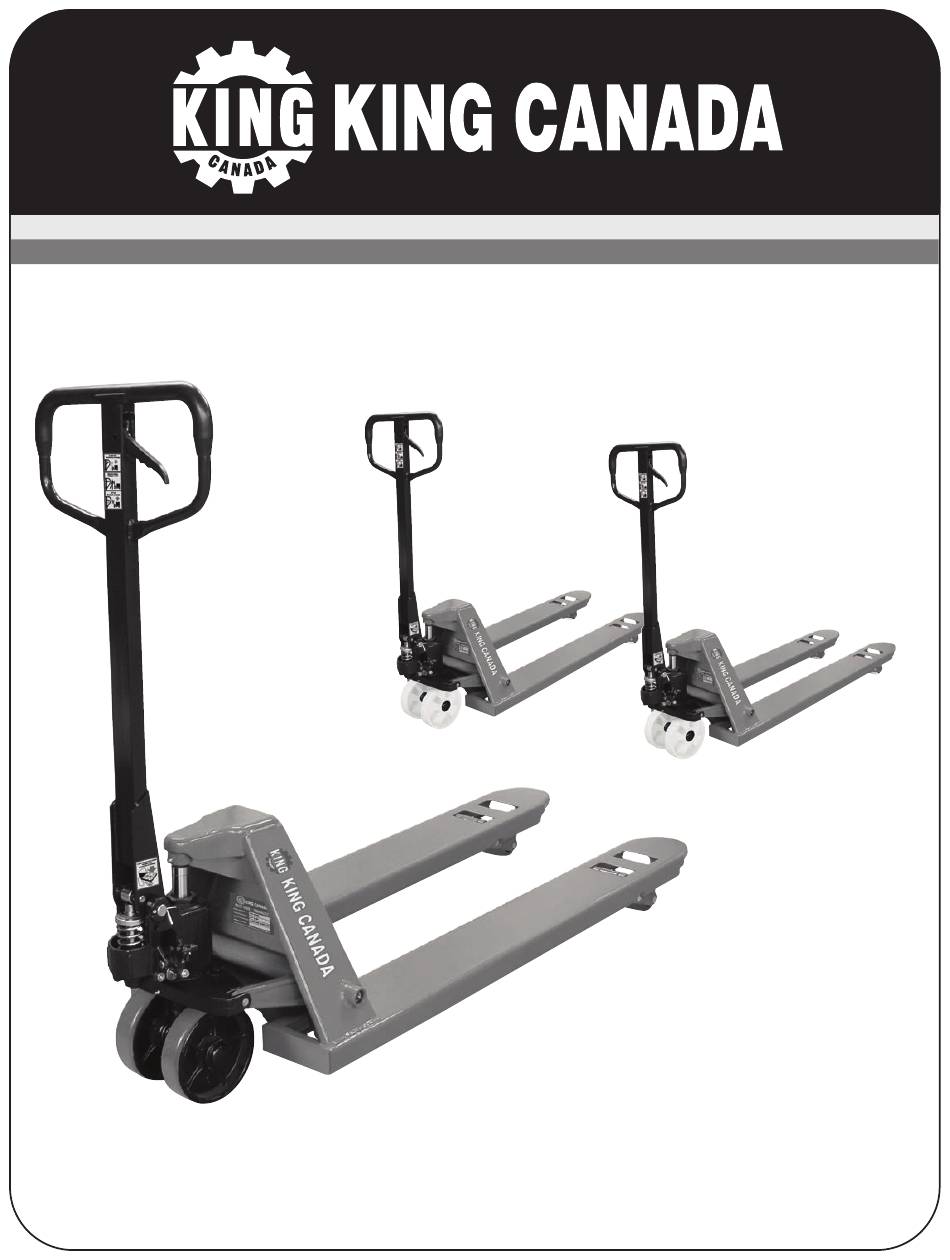

- Page 1 PALLET TRUCKS 06/2016 KC-2748N-NYL (27” x 48”) KC-2145N-NYL (21” x 45”) INSTRUCTION MANUAL KC-2748NP (27” x 48”) COPYRIGHT © 2016 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Important Warranty Information
King Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period. - Page 3 GENERAL AND SPECIFIC SAFETY INSTRUCTIONS 1. KNOW YOUR EQUIPMENT. 4. MAINTAIN EQUIPMENT. Read and understand the owners manual and labels affixed to Keep equipment clean for best and safest performance. Follow the pallet truck. Learn its application and limitations as well as its instructions for lubricating.
- Page 4 6. Quick release lowering foot pedal 3. Lifting forks 7. Grease fitting (pivotal points) 4. Polyurethane or Nylon load wheels 8. Hydraulic pump MODEL KC-2145N-NYL KC-2748N-NYL KC-2748NP Minimum height of forks 2.95” 2.95” 2.95” Maximum raised height of forks 7-1/2” 7-1/2”...
-
Page 5: Operation And Maintenance
OPERATION & MAINTENANCE OPERATION To raise the forks, push the lift/neutral/lower control lever (A) Fig.1 down to the “lift” position and pump the directional/pump control handle (B) to lift the forks to the desired height. To lower the forks, pull the lift/neutral/lower control lever (C) Fig.1 up to the “lower”... -
Page 6: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED 1. Add appropriate oil 1. Shortage of oil Insufficient lifting 2. Set lever to lowering position 2. Air in pump and pump handle repeatedly 1. Replace hydraulic oil 1. Viscosity of hydraulic oil is too Pallet truck does not high or hydraulic oil level is too lift...
