Summary of Contents for Miracle Paint Blue Boy MBB-5-C

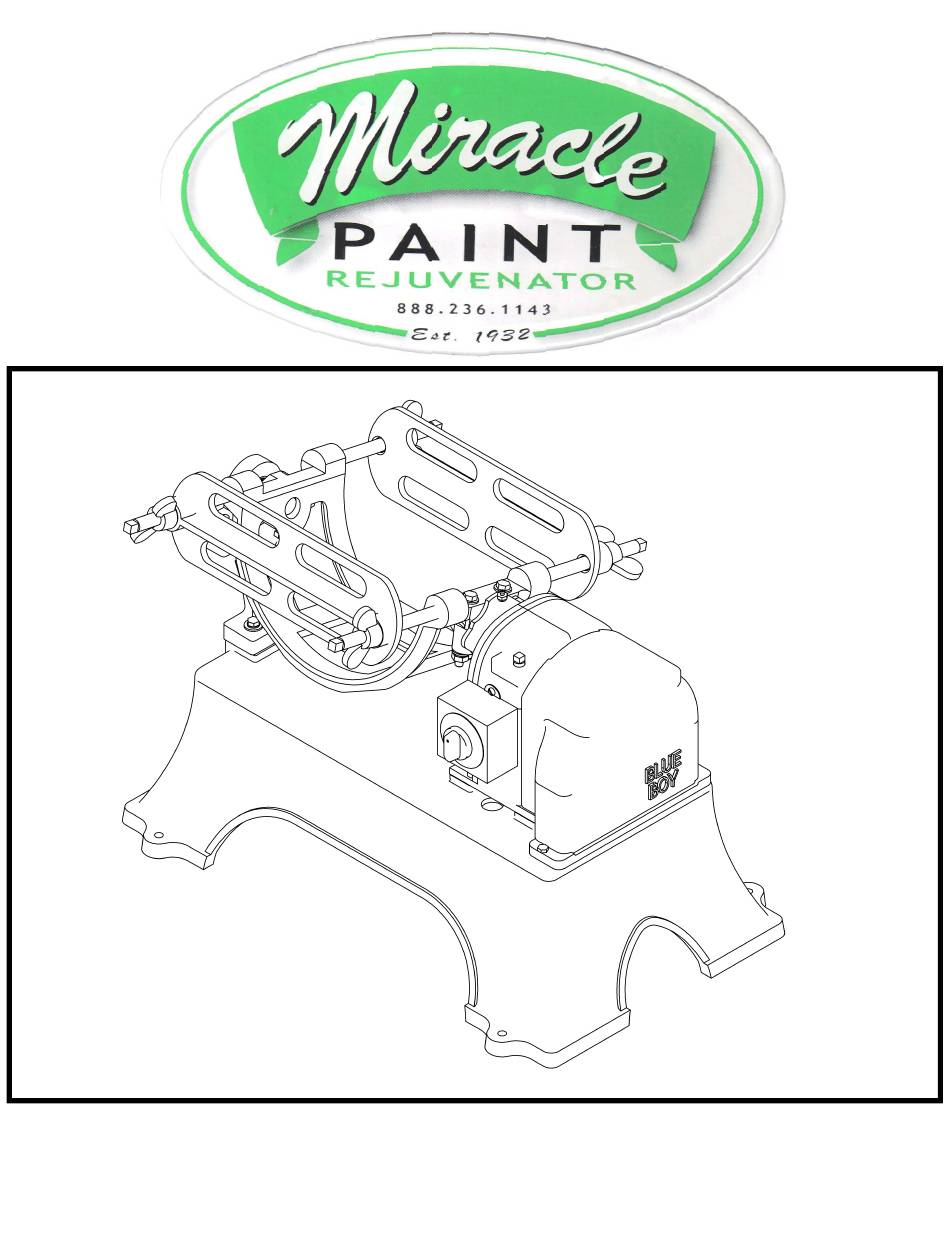

- Page 1 BLUE BOY PAINT REJUVENATOR Owner’s Manual...
- Page 2 Introduction…………………..3 Safety Precautions……………4 Installation Instructions………4 Electrical Connections………..5 Operating Instructions………..6 Maintenance Procedures……...6 Parts lists …………………….7 Ordering Replacement Parts….12...
- Page 3 Miracle Paint Rejuvenator recently celebrated its 75th Anniversary of producing quality specialty mixing solu- tions. Fred A. Schletz, Miracle Paint’s founder, invented the first shaker in 1932. His invention was designed to reju- venate his stock of paint for his three paint stores so his inventory would not spoil. This timely invention not...
-
Page 4: Installation Instructions
Follow these safety precautions when operating the Miracle Paint Rejuvenators Blue Boy Mixer. Installation 1. Before operating the machine, read this Owner’s manual carefully. 2. Ground the machine properly. Be sure to follow proper grounding and electrical procedures. 3. Avoid dangerous environments. Do not use the machine in a damp or wet environment. - Page 5 RISK OF ELECTRIC SHOCK. ALWAYS HAVE MACHINE PROPERLY GROUNDED. MBB-5-C Your mixer MUST BE PROPERLY GROUNDED. If there is an electrical short circuit, grounding reduces the risk of electric shock. The machine’s power cord has a grounded plug. This plug must be inserted into an electrical outlet that is properly installed and grounded according to all local codes and ordinances.
-
Page 6: Safety Precautions
Safety Precautions 1. Make sure can lids are tightly closed. 2. Do not mix breakable containers such as glass, porcelain, etc. 3. Ensure container is securely clamped. 4. All customers should be kept away from the work area. 5. The mixer should be operated by trained personnel only. Mixing Procedure 1. - Page 7 Drive Housing Assembly Item Qty. Part Number / Description Item Qty. Part Number / Description BB-2 Drive housing BB-4 Fork rod BB-3 Drive housing cover Oil splasher Front upper cover Screw, pan head slotted 10-32 x .375 Screw, flat head slotted 5/16-18 x .50 Lock washer, int / ext tooth #10 Flat washer, 1.53ID x 2.25OD x .07thk Grease zerk...
- Page 8 Clamp / Cradle Assembly Item Qty. Part Number / Description BB-9A Cradle BB-9B Cradle half keyed Screw, hex head cap 3/8-24 x 3.50 Nut, hex 3/8-24 Lock washer, 3/8” split Flat washer, 3/8” BB-10A 5/8” threaded rod BB-12B Aluminum cross bar BB-11A 5/8”...
- Page 9 Motor Drive Assembly (X-proof shown) Item Qty. Part Number / Description Item Qty. Part Number / Description Custom carriage bolt BB-1 Blue Boy base BB-22A Motor base bolt On/Off lever (x-proof only) Nut, hex jam 5/16-18 BB-22 Motor base BB-14 Drive pulley, 2” Motor Square key, 3/16 x 1.50L Screw, hex head cap 1/4-20 x .50...
-
Page 10: Base Assembly
Base Assembly Item Qty. Part Number / Description Item Qty. Part Number / Description BB-1 Blue Boy base Timer assembly Drive housing assembly Screw, hex head 1/4-20 x .75 BB-7A 1” pillow block bearing Flat washer, #10 BB-6A Rear standard Screw, pan head slotted 10-24 x .50 Flat washer, 3/8”... - Page 11 Timer washer Timer nut Timer knob Screw, pan head slotted self tap 4-24 x 5/16 Contact our Customer Service Department at: Miracle Paint Rejuvenator Company 6270 Claude Way East Inver Grove Heights, Minnesota 55076 Ph: 651-222-1900 or 888-236-1143 Fax: 651-222-8549 Warranty: 1 year parts &...
