LED unit
LED unit
Order no.: 1686, 168601, 1687xx
Installation instructions
1 Safety instructions
Electrical equipment must only be installed and assembled by qualified electricians.
Always follow the relevant accident prevention regulations.
Failure to comply with these instructions may result in damage to the device, fire or other
hazards.

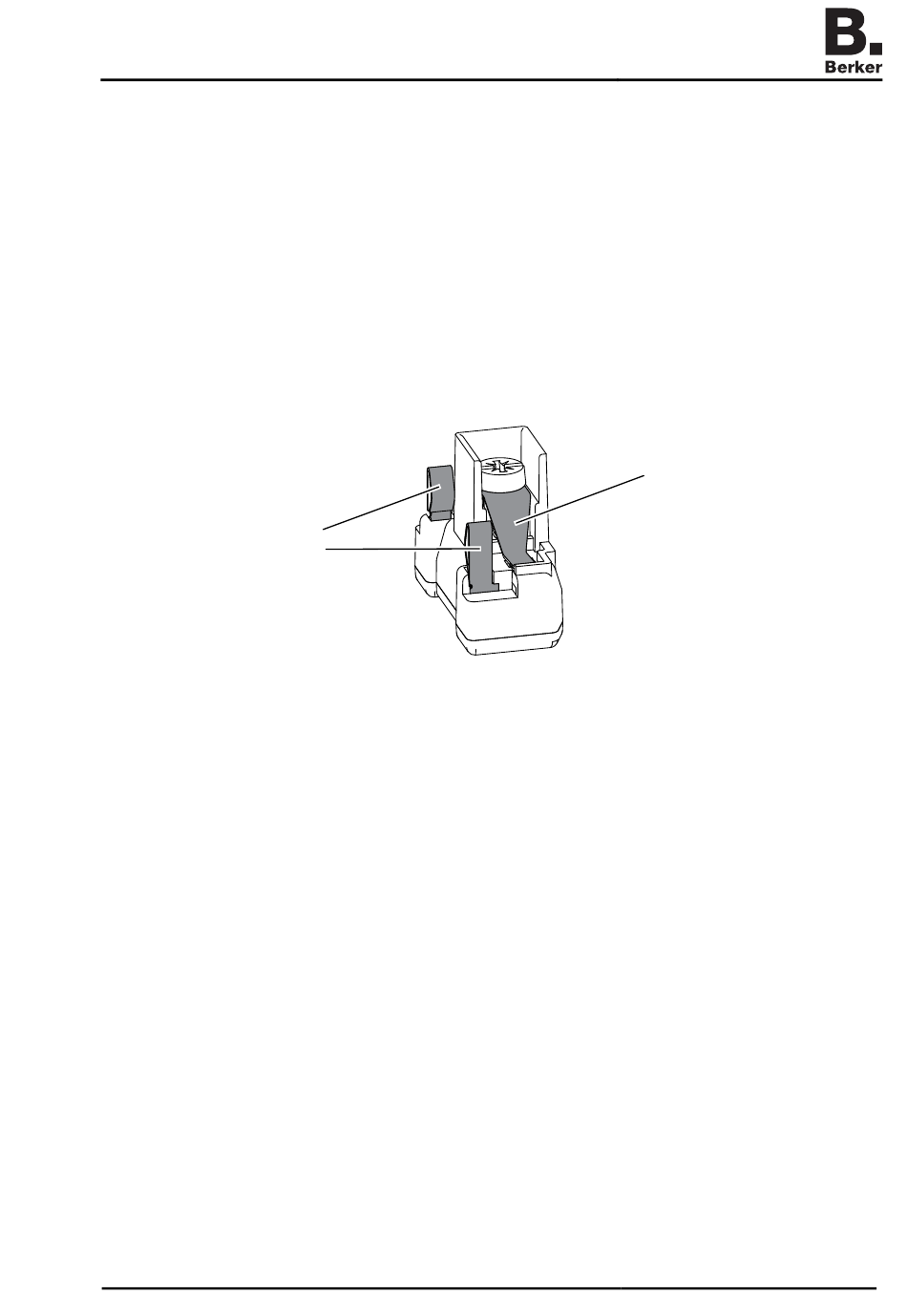

2 Structure of the device
(1) Contact bridge
(2) Plug-in contacts
3 Function
The LED unit is used for lighting switches and push-buttons.
Correct use
The LED unit must be used in
rocker switches change-over, intermediate, 2pole on/off 10 AX
–
rockers switch series
–
rocker push-button and rockers push-button
–
Not useable for
rockers push-button order no. 5038 08 and group rockers push-button order no. 5034 04
–
push-button and pullcord switches, rocker switches and rocker push-buttons from the years
–
1985 to 1995
97-09927-000
(2)
Figure 1
Page 1/4
(1)
11/2011
Advertisement
Table of Contents
Related Manuals for Berker 1687 Series
Summary of Contents for Berker 1687 Series
-
Page 1: Installation Instructions
LED unit LED unit Order no.: 1686, 168601, 1687xx Installation instructions 1 Safety instructions Electrical equipment must only be installed and assembled by qualified electricians. Always follow the relevant accident prevention regulations. Failure to comply with these instructions may result in damage to the device, fire or other hazards. - Page 2 LED unit 4 Information for electricians 4.1 Assembly and electrical connection DANGER! Touching live parts can result in an electric shock. An electric shock can lead to death. Before working on the device or load, disconnect all associated circuit breakers. Cover all live parts in the area! Installing LED unit (Figure 2) Figure 2...
- Page 3 LED unit Wiring cut-off control The LED unit lights up when "ON". ATTENTION! Short circuit by connection of the neutral conductor on installed contact bridge. LED unit will be destroyed. Remove contact bridge before connecting the neutral conductor. Figure 4 Removing the contact bridge (Figure 4, 3).
-
Page 4: Specifications
Our products are under guarantee within the scope of the statutory provisions. If you have a warranty claim, please contact the point of sale or ship the device postage free with a description of the fault to our Service Center. Berker GmbH & Co. KG Service Center Hubertusstraße 17...
