Summary of Contents for Toastmaster 9451-HP12

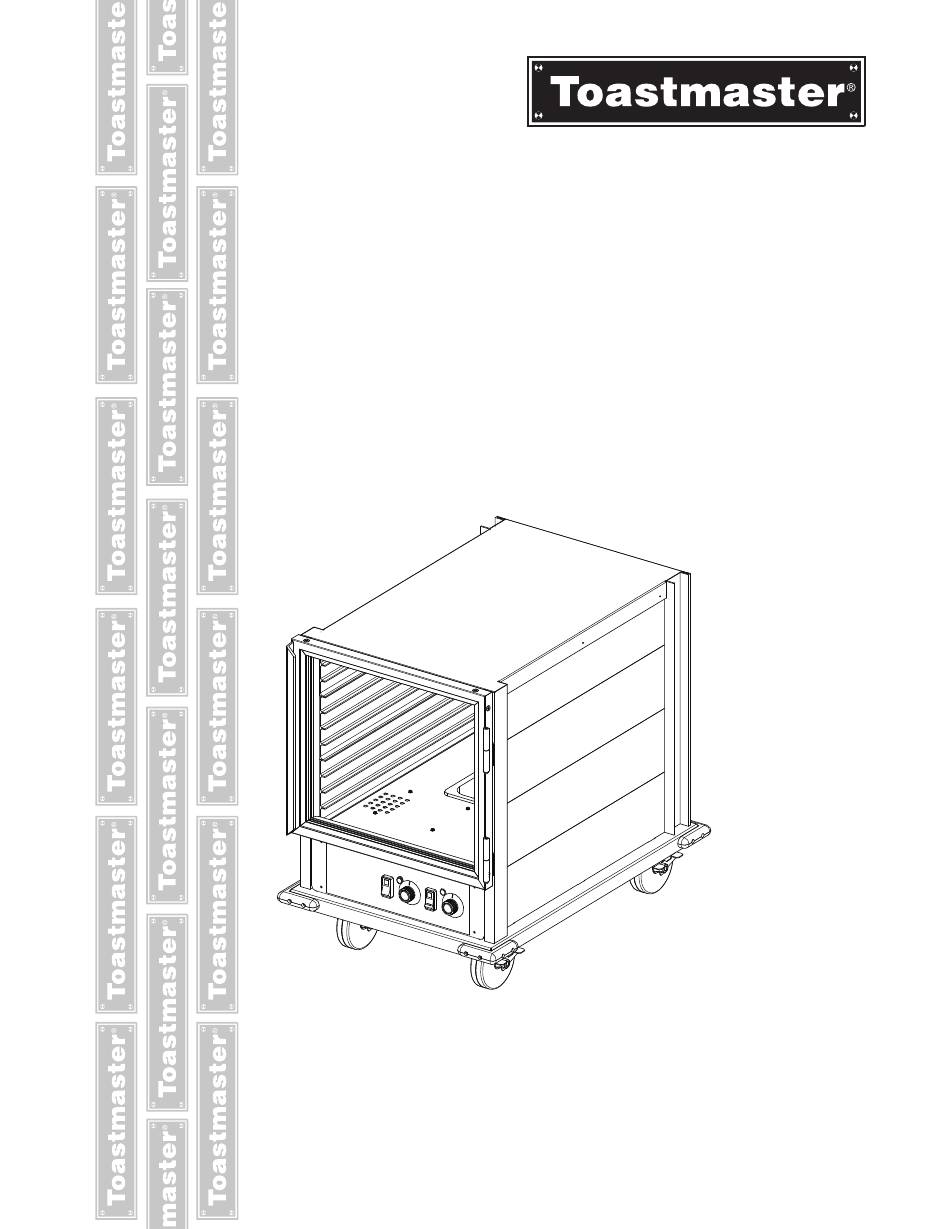

- Page 1 HEATER PROOFERS MODEL 9451-HP12, E9451-HP12 9451-HP34, E9451-HP34 Installation and Operation Instructions 2M-Z15782, Rev. B March 3, 2014 E9451-HP12CD I L2427...
-
Page 2: Safety Symbols
WARNING RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Toastmaster factory supplied parts relieves the manufacturer of all liability. Toastmaster reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Electrical Specifications
6 (approximately 85% relative humidity). Depth Height Front Side IL2431 Size Specifications Exterior Interior Weight Shipping Height Width Depth Height Width Depth 9451-HP12 30.3125” 22.8125” 33.3125” 15.625” 18.125” 27.5” 100lbs 9451-HP34 67.5625” 23.3125” 33.875” 51.75” 18.125” 27.5” 140lbs Electrical Specifications... -
Page 4: Installation
This equipment is designed to hold food at a constant temperature, and supply humidity for proofing when the application applies, this is NOT a cooking appliance. This unit is sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the CAUTION home nor for use directly by the general public in food service locations. -
Page 5: Troubleshooting
Operating Instructions Startup 1. Push ON/OFF rocker switch to “ON” position 2. Push HEAT/PROOF switch to HEAT for heating. 3. Turn HEAT thermostat knob fully clockwise for pre-heat. 4. Allow 45 minutes for pre-heating, then turn thermostat to desired setting. 5. - Page 6 See Detail Model: E9451 Heater / Proofer SK2574 Rev. - 3/19/2012...
- Page 7 Detail Model: E9451 Heater / Proofer SK2575 Rev. A 7/3/2012...
-
Page 8: Parts List
CORD,POWER,6’FT LONG H-10 2R-50-1319 LATCH, MAGNETIC, CHROME E9451-HWHSFR R2-06-0160 CATCH, HW-2G E9451-HWHSFR R2-AC1330 SIDE, OUTER RIGHT 9451-HP12 R2-AC1331 SIDE, OUTER LEFT 9451-HP12 R2-AC2515 SIDE-O/D-LT 9451-HP34 R2-AC2516-C SIDE-O/D-RT 9451-HP34 is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved. - Page 9 WIRE GA COLOR WHITE WHITE WHITE 1100W HEAT WHITE WHITE WHITE BLACK BLACK 600W HEAT BLACK BLACK BLACK BLACK 600W PROOF 14 BLACK & WHITE 14 BLACK & WHITE GREEN BLOWER 11 12 HEAT PROOF OVERLOAD T-STAT T-STAT PROTECTION POWER HEAT/PROOF HEATER PROOFER WIRING DIAGRAM...
-
Page 12: Warranty Statement
The foregoing is Toastmaster’s sole and exclusive obligation and the end user sole and exclusive remedy for any action including breach of contract or negligence. In no event shall Toastmaster be liable for a sum in excess of the purchase price of the equipment, or for any prospective or lost profits of the end user.
