WORLD OF MEDICINE Stryker Pneumoclear Short Instruction

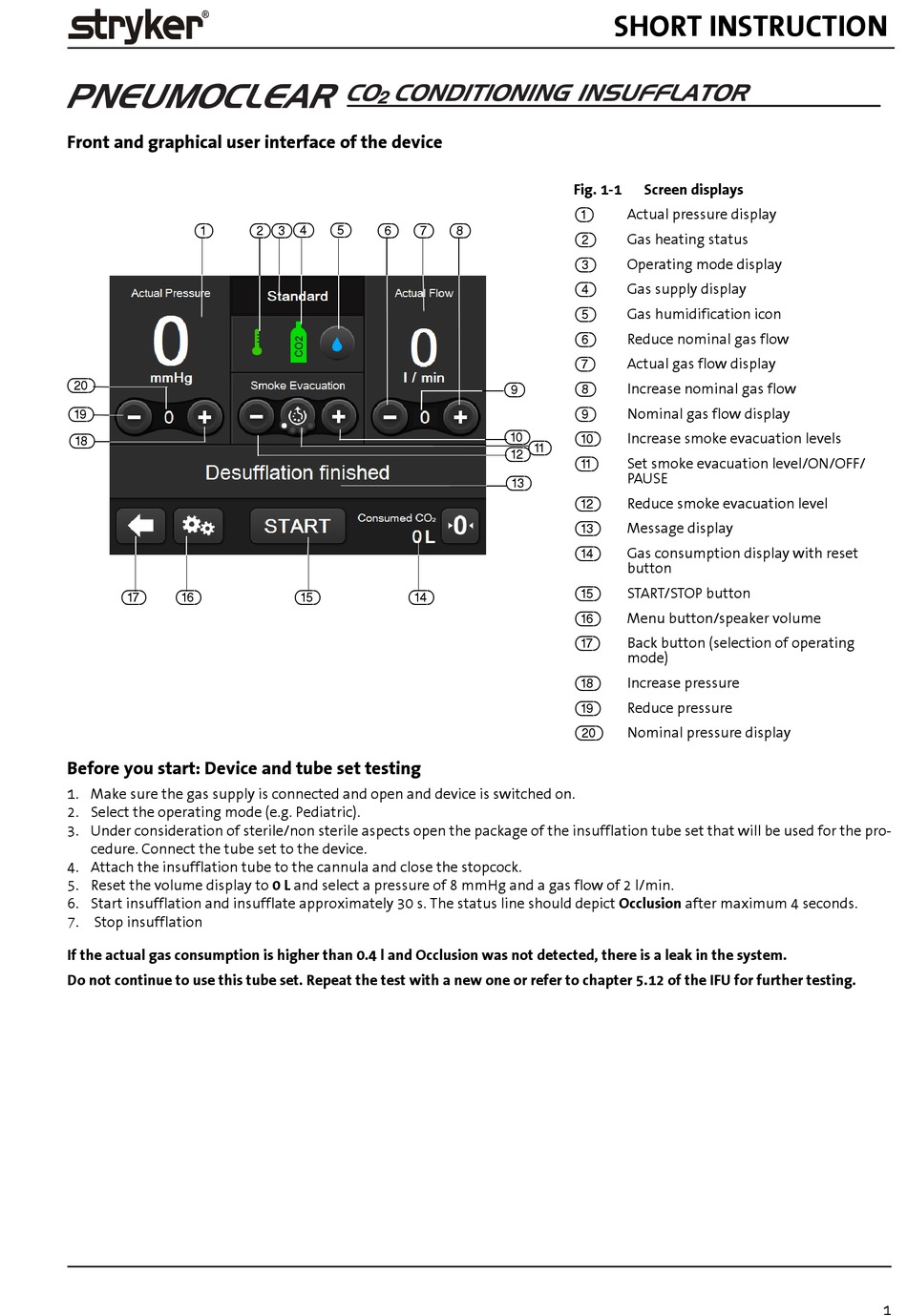

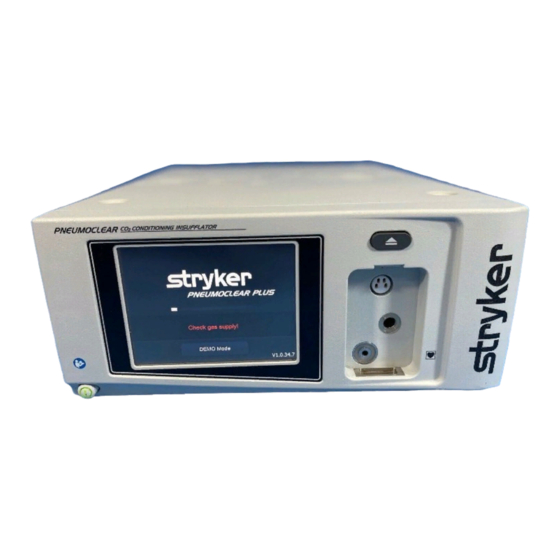

Front and graphical user interface of the device

(1)
(20)
(19)
(18)
(17) (16)

Before you start: Device and tube set testing

1. Make sure the gas supply is connected and open and device is switched on.
2. Select the operating mode (e.g. Pediatric).
3. Under consideration of sterile/non sterile aspects open the package of the insufflation tube set that will be used for the pro-
cedure. Connect the tube set to the device.
4. Attach the insufflation tube to the cannula and close the stopcock.
5. Reset the volume display to 0 L and select a pressure of 8 mmHg and a gas flow of 2 l/min.
6. Start insufflation and insufflate approximately 30 s. The status line should depict Occlusion after maximum 4 seconds.
7. Stop insufflation
If the actual gas consumption is higher than 0.4 l and Occlusion was not detected, there is a leak in the system.
Do not continue to use this tube set. Repeat the test with a new one or refer to chapter 5.12 of the IFU for further testing.
(4) (5) (6)
(2)(3) (7) (8)
(15) (14)
SHORT INSTRUCTION
Fig. 1-1 Screen displays
Actual pressure display
(1)
Gas Heating status
(2)
Operating mode display
(3)
Gas supply display
(4)
Gas humidification icon
(5)
Reduce nominal gas flow
(6)
Actual gas flow display
(7)
Increase nominal gas flow
(8)
(9)
Nominal gas flow display
(9)
(10)
Increase smoke evacuation levels
(10)
(11)
(12)
Set smoke evacuation level/ON/OFF/
(11)
PAUSE
(13)
Reduce smoke evacuation level
(12)
Message display
(13)
Gas consumption display with reset
(14)
button
START/STOP button
(15)
Menu button/speaker volume
(16)
Back button (selection of operating
(17)
mode)
Increase pressure
(18)
(19) Reduce pressure
Nominal pressure display
(20)
